USA Security Systems

LM8FC24M

Kowa LM8FC24M 1.1" 8mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more

Kowa LM8FC24M 1.1" 8mm 24MP C-mount Lens Compatible With Sony IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more

SKU:LM8FC24M

Regular price $758.00 USD
Regular price Sale price $758.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover the Kowa LM8FC24M 1.1" 8mm 24MP C-mount Lens

Kowa is renowned in the machine vision industry for its commitment to providing high-quality optics tailored to industrial applications. The Kowa LM8FC24M 1.1" 8mm lens exemplifies this dedication, offering unparalleled precision and reliability. With a focal length of 8mm and compatibility with sensors featuring a pixel size of 2.5μm or more, this C-mount lens is optimized for demanding machine vision tasks.

Featuring manual iris control and a wide aperture range from f/2.5 to f/16, the LM8FC24M ensures optimal light transmission and flexibility in various lighting conditions. Its broadband coating extends the wavelength range from 380nm to 1000nm, enhancing image quality across the spectrum.

Ideal for applications such as machine vision, broadcast, and traffic control systems, this lens delivers exceptional performance in diverse industrial settings. With a resolution of up to 24MP and minimal distortion of 0.55%, it captures intricate details with utmost clarity. Whether inspecting manufactured components or monitoring traffic flow, the Kowa LM8FC24M empowers businesses to achieve precision and efficiency in their operations.

Features:

  • High-resolution 8mm lens
  • Manual iris control (f/2.5 - f/16)
  • Broadband coating (380nm - 1000nm)
  • Compatible with Sony IMX sensors
  • Minimal distortion (0.55%)
  • Wide temperature range (-10°C to +50°C)

Applications:

  • Machine vision inspection
  • Broadcast imaging
  • Traffic control systems

LM8FC24M Spec Sheet

Focal Length (mm) 8,5 mm

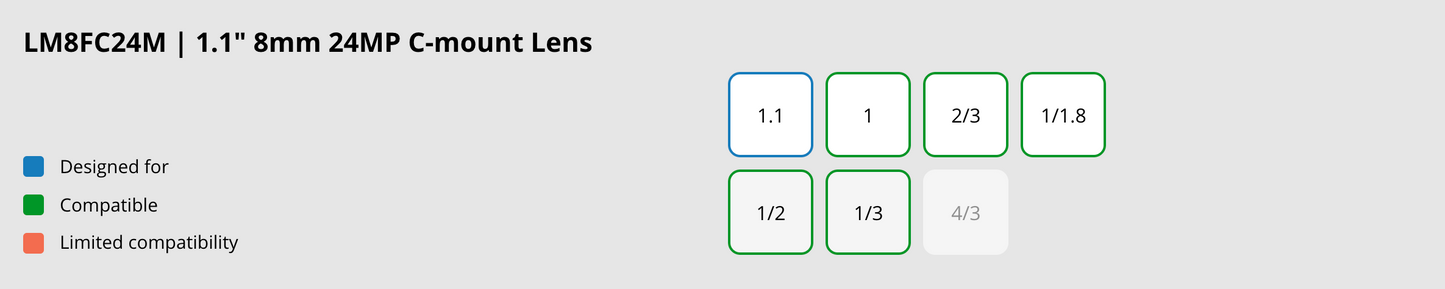

Sensor Size 1.1"
Pixel Size (µm) 2,5
Mount C-Mount
Iris Control Manual
Iris Range (F-Stop) 2,5 - 16
Lens Type Fixed Focal Lens
Wavelength Range VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm)
Focusing range (m) 0,1 - ∞
Focus Control Manual
Shooting range at MOD, horizontal (mm) 184
Shooting range at MOD, vertical (mm) 138
Resolution (Center, Corner) 200lp/mm,100lp/mm
Megapixel 24
TV Distortion (%) 0,55
Back Focus in Air (mm) 12,9
Filter Size (mm) M62 x P0,75

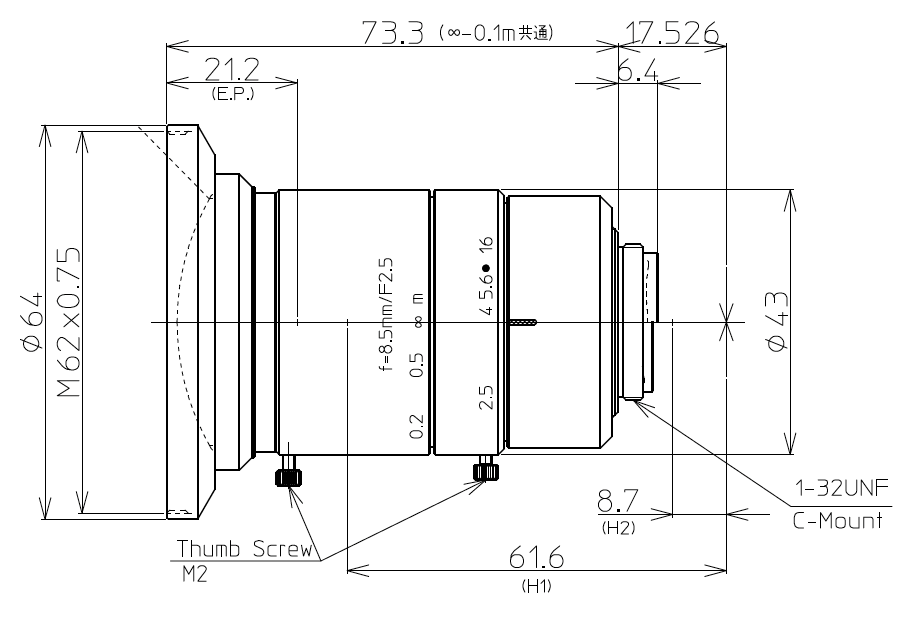

Size (mm) Ø64 X 73,3
Weight 230
Temperature Range -10°C - +50°C

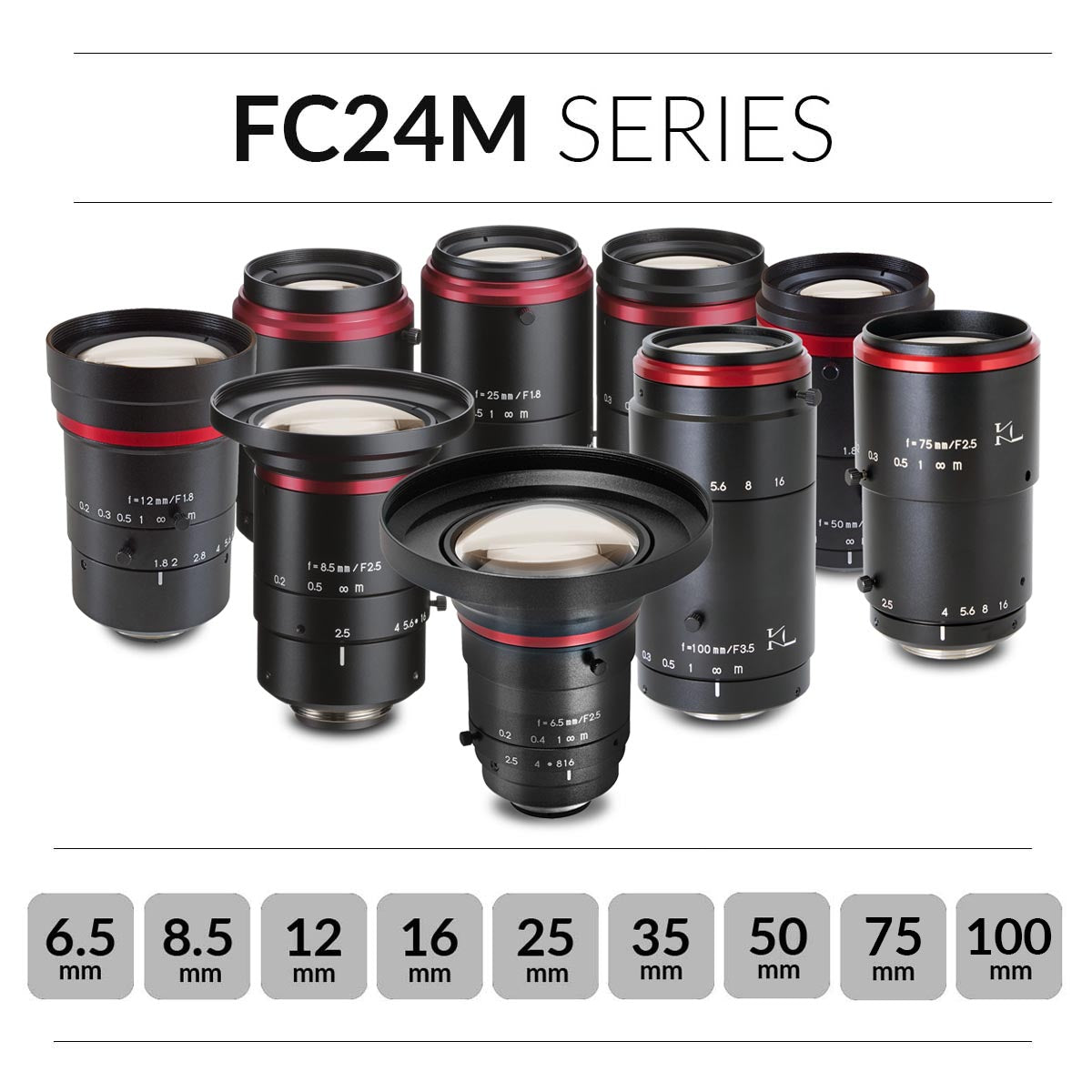

Series FC24M
Application Machine Vision, Broadcast, ITS/Traffic Control
