USA Security Systems

LM8HCV

Kowa LM8HC-V 1" Ruggedized 8mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

Kowa LM8HC-V 1" Ruggedized 8mm 5MP C-Mount Lens Compatible With Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more

SKU:LM8HC-V

Regular price $386.00 USD
Regular price Sale price $386.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Vision with Kowa LM8HC-V 1" Ruggedized Lens

In the realm of machine vision and industrial applications, precision and reliability are paramount. Introducing the Kowa LM8HC-V 1" ruggedized 8mm 5MP C-mount lens, meticulously engineered to meet the demands of rigorous environments. Boasting compatibility with premier sensors like the Sony IMX174, CMOSIS CMV4000, and Sony IMX249, this lens ensures exceptional performance and versatility.

Crafted with a focus on durability, the Kowa LM8HC-V lens is designed to thrive in environments characterized by strong vibrations and shocks, making it an ideal choice for industrial settings where reliability is non-negotiable. With manual iris control, users can fine-tune settings for optimal image quality, while the wide focal length of 8mm provides flexibility in various applications.

The lens delivers stunning image resolution of up to 5MP, ensuring crystal-clear imaging for precise analysis and inspection tasks. Whether used in robotics, quality control, or traffic monitoring, the Kowa LM8HC-V lens excels in delivering sharp, detailed images, empowering businesses to enhance efficiency and accuracy in their operations.

Upgrade your machine vision system with the Kowa LM8HC-V 1" ruggedized lens and experience unparalleled performance in demanding industrial environments. Take the next step towards precision and reliability today.

Features:

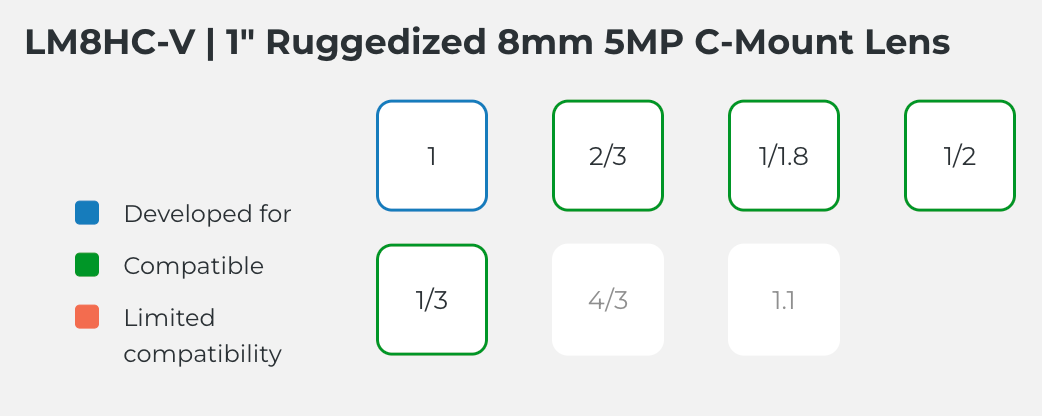

  • Compatible with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors
  • Ruggedized design for durability in harsh environments

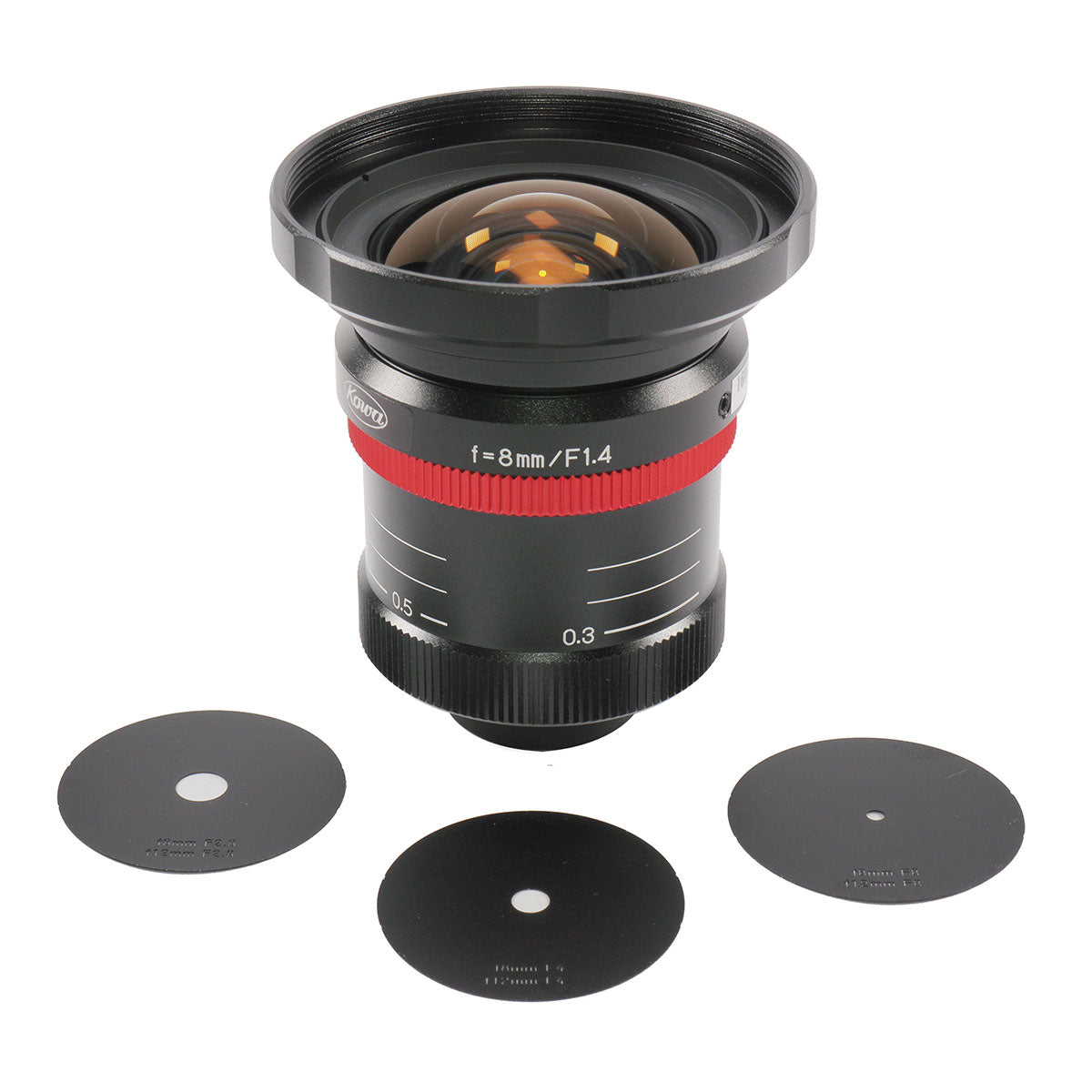

  • Manual iris control for precise adjustments
  • High resolution of up to 5MP
  • Wide focal length of 8mm

Applications:

  • Industrial automation
  • Quality control
  • Robotics
  • Traffic monitoring
  • Surveillance

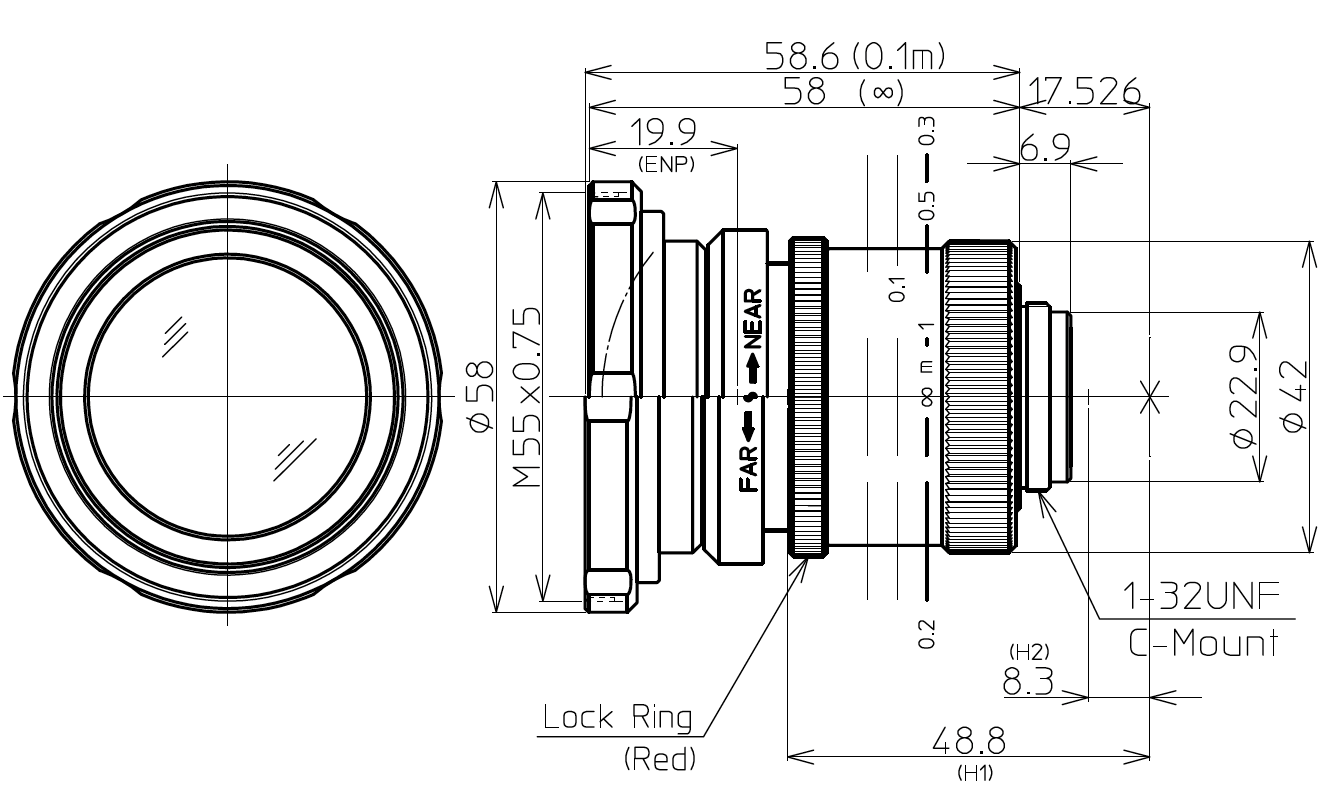

LM8HC-V Spec Sheet

Focal Length f=8mm
F-Number F=1 : 1.4, 2.8, 4, 8
Picture Size 9.6x12.8mm
Angle Of View Ver. Angle - 63.0°
Hor. Angle - 79.7°
Dia. Angle - 92.4°
Distortion -1.2%
Field Of View  Ver. Angle -143 mm
Hor. Angle - 196 mm
Dia. Angle - 247 mm
Minimum Focus Distance 0.1m
Flange Back 17.526 mm in air
Back Focus 11.2 mm in air
Filter Screw Size M55x0.75
Front/Rear Effective Dia. Front Φ37.4mm / Rear Φ17.5mm
Mount C-Mount
Exit Pupil -45.9mm
Temperature Range -10°C ~ +50°C
Storage Temperature Range -20°C ~ +60°C
Resolution Center/Corner Center 120lp/mm / Corner 100lp/mm
Weight 183g
