Kowa LM8JC5MC 2/3" 8mm 5MP Ultra Compact Lens Compatible With Sony IMX250, IMX252, IMX264, IMX265 and many more sensors
Kowa LM8JC5MC 2/3" 8mm 5MP Ultra Compact Lens Compatible With Sony IMX250, IMX252, IMX264, IMX265 and many more sensors
SKU:LM8JC5MC
Couldn't load pickup availability
Unleash Precision with Kowa LM8JC5MC Ultra Compact Lens

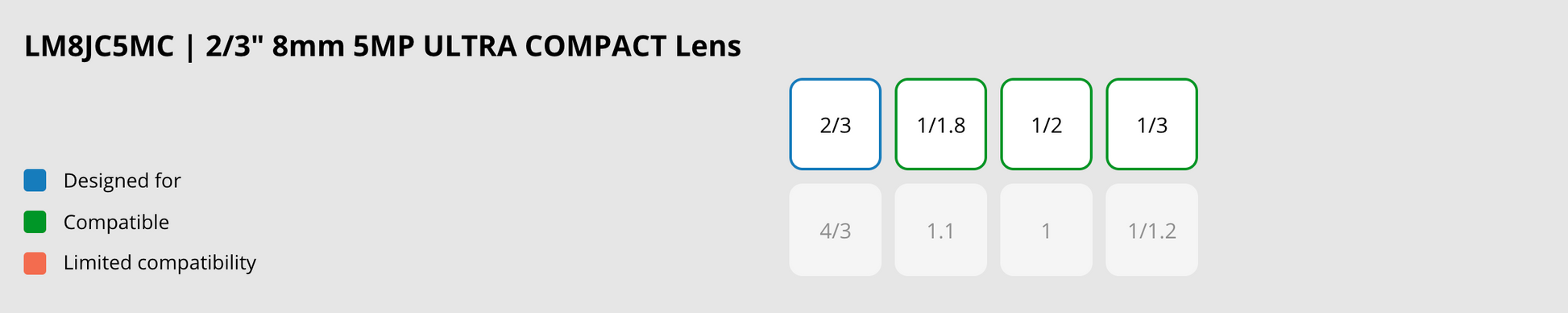

In the competitive landscape of industrial and machine vision, Kowa stands tall with its LM8JC5MC 2/3" 8mm 5MP Ultra Compact Lens. Designed for compatibility with Sony IMX250, IMX252, IMX264, IMX265, and other sensors with a pixel size from 3.5μm, this lens offers unparalleled performance. Boasting the title of the smallest 5-megapixel lens in its class, it is a testament to Kowa's commitment to innovation and quality. With manual iris control, fixed focal lens type, and a wavelength range covering VIS (380nm - 780nm), this lens ensures precise imaging across various industrial applications. Whether it's in automotive manufacturing, pharmaceuticals, electronics, or quality inspection, the Kowa LM8JC5MC delivers exceptional clarity and accuracy. Its compact design and lightweight build make it ideal for integration into robotic systems and tight spaces, while its temperature range (-10°C - +50°C) ensures reliable operation in diverse environments.
Elevate your industrial imaging with Kowa LM8JC5MC Ultra Compact Lens. Compatible with Sony IMX sensors, it delivers precision for machine vision. Invest in clarity today!
Features:
- Compatible with Sony IMX sensors
- Manual iris control for precision
- Fixed focal lens type for consistent imaging
- Ultra compact design for versatile integration
- High resolution with low distortion
Applications:
- Industrial automation
- Quality inspection
- Robotics
- Electronics manufacturing
| Focal Length (mm) | 8 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 3,45 |

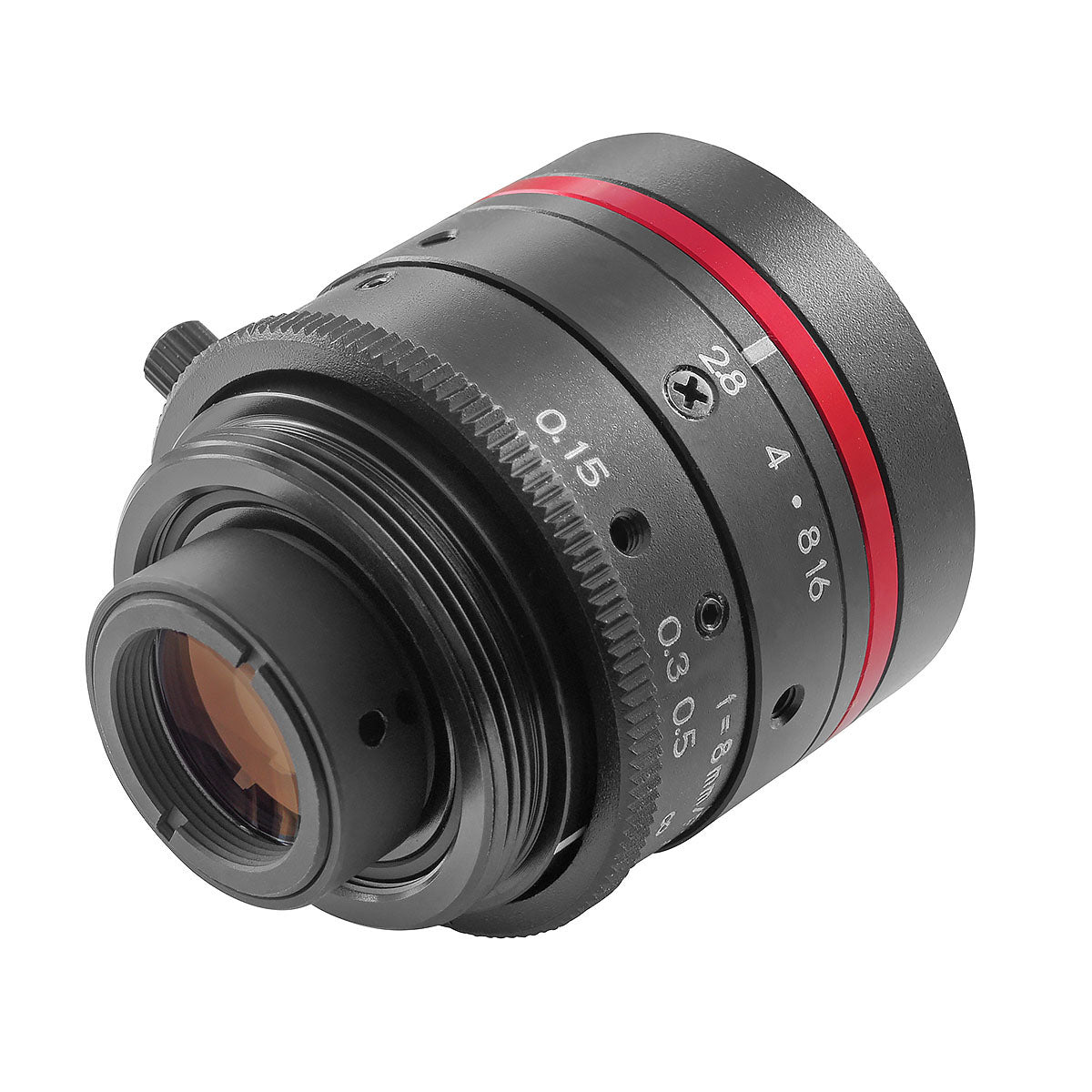

| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2,8 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,15 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 178 |
| Shooting range at MOD, vertical (mm) | 132 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 100 |
| Megapixel | 5 |
| Distortion (TV) (%) | -0,85 |
| Back focus in air (mm) | 10,8 |
| Filter Size (mm) | M30,5 x P0,5 |

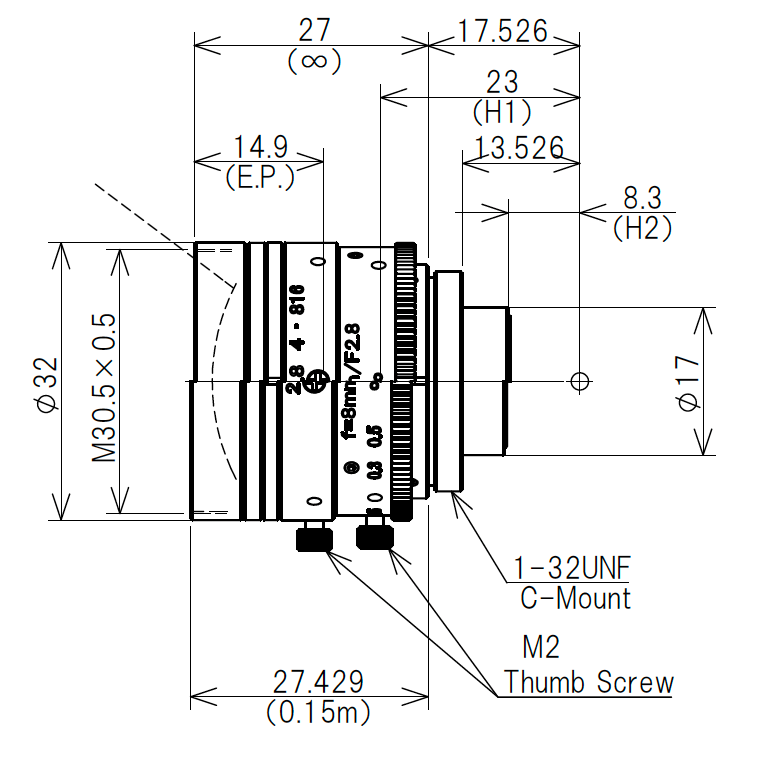

| Size (mm) | Ø32 X 27 |
| Weight (g) | 55 |
| Temperature Range (℃) | -10°C - +50°C |

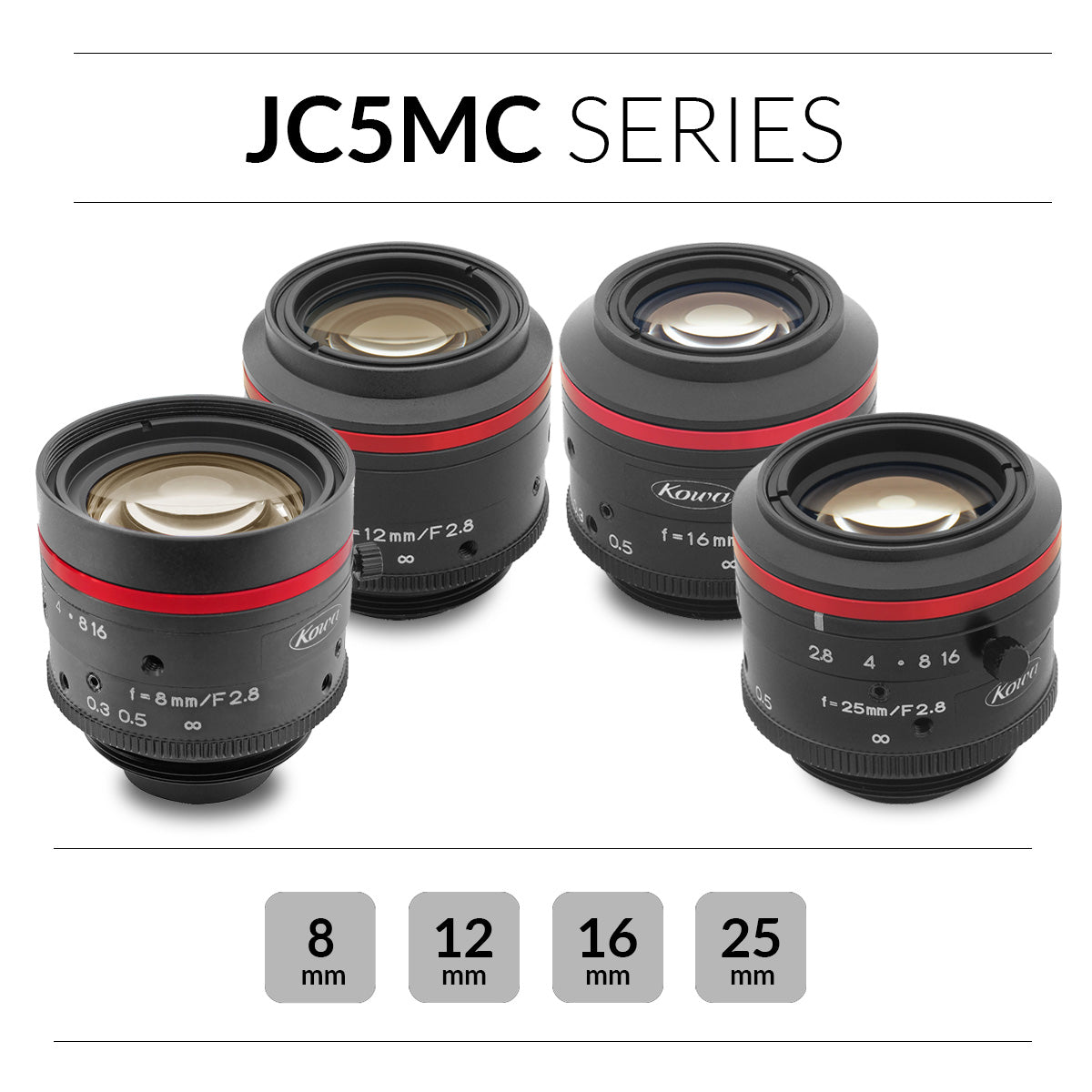

| Series | JC5MC |
| Application | Machine Vision |
