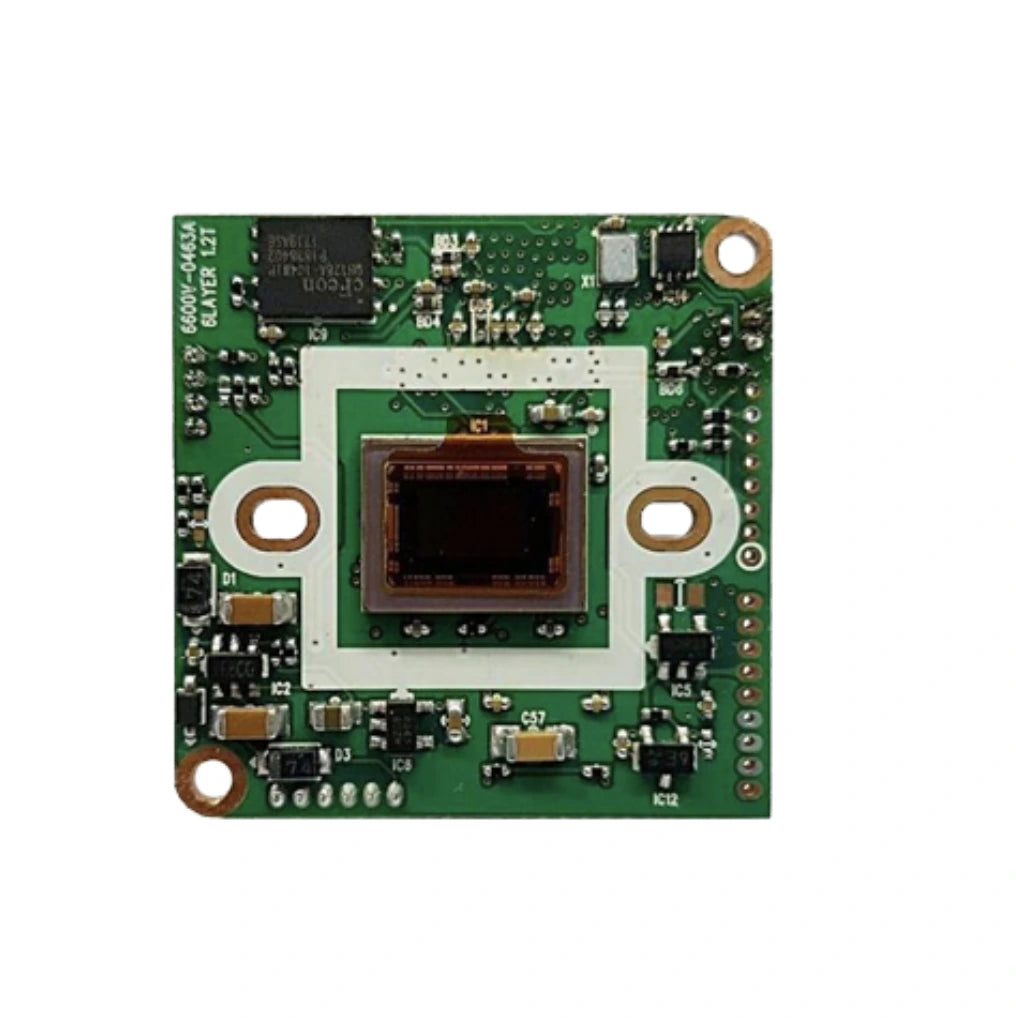

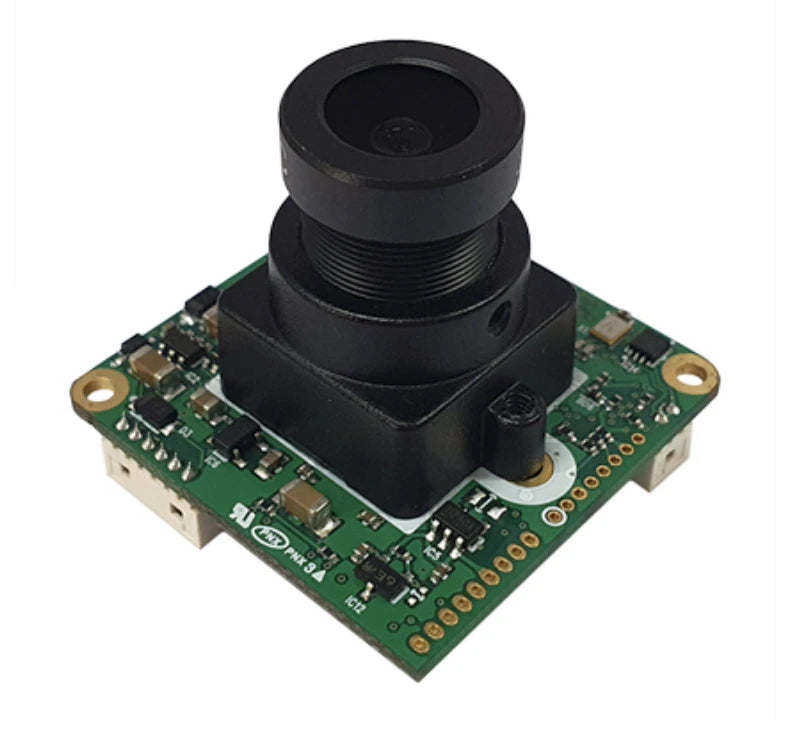

KT&C ACE-HMS6332-iB 2MP IP Board Level Module Camera, Sony STARVIS, 1080p, 3.6mm Lens

KT&C ACE-HMS6332-iB 2MP IP Board Level Module Camera

The KT&C ACE-HMS6332-iB is an NDAA compliant 2MP IP board level module camera designed for compact surveillance, embedded video systems, access control, OEM integration, and professional network security applications.

Built with a 1/2.8" Progressive Scan Sony STARVIS CMOS sensor, the ACE-HMS6332-iB delivers sharp 1080p Full HD video at up to 30fps with excellent low-light sensitivity down to 0.01 lux with DSS enabled. Its fixed 3.6mm lens provides a wide 112.3° diagonal field of view, making it well suited for close-range monitoring, discreet installations, and space-constrained camera designs.

This compact KT&C IP module camera supports H.264 Baseline/Main Profile and MJPEG compression, with up to three simultaneous video streams for flexible bandwidth and recording optimization. Advanced imaging features include Double Shutter WDR up to an estimated 116dB, 2D/3D Digital Noise Reduction, electronic Day/Night switching, motion detection, privacy masking, slow shutter control, and backlight compensation.

With ONVIF support, 10/100 Base-T Ethernet, IPv4 networking, 12VDC power, and optional PoE IEEE 802.3af support, the ACE-HMS6332-iB is easy to integrate into compatible IP surveillance systems, NVRs, video management platforms, and custom embedded security builds. Its ultra-compact 32 × 32mm board-level form factor and lightweight 5.65g design make it a strong choice for professional installations where size, performance, and reliability matter.

Key Features:

• NDAA compliant 2MP IP board level module camera
• 1/2.8" Progressive Scan Sony STARVIS CMOS sensor
• 1945(H) × 1097(V) effective pixels
• 1080p Full HD video at up to 30fps
• Fixed 3.6mm lens
• Wide 112.3° diagonal field of view
• Low-light performance down to 0.01 lux with DSS On
• Double Shutter WDR, estimated 116dB
• Electronic Day/Night switching
• 2D/3D Digital Noise Reduction
• H.264 Baseline/Main Profile and MJPEG compression
• Triple streaming with up to 3 profiles
• ONVIF support for IP video integration
• Motion detection with 60 × 34 motion blocks and up to 4 zones
• Privacy masking with up to 16 zones
• 10/100 Base-T Ethernet network connection
• 12VDC power with optional PoE IEEE 802.3af
• Fast RTOS-based boot-up within 2 seconds
• Ultra-compact 32 × 32mm board design

Ideal Applications:

• Board level IP camera integration
• Embedded surveillance systems
• Discreet security camera installations
• Access control and entry monitoring
• Retail and commercial security
• Industrial network video systems
• OEM camera designs
• Custom enclosures and compact camera builds
• Low-light indoor monitoring
• Professional IP video surveillance

Technical Specifications

Why Choose the KT&C ACE-HMS6332-iB?

The ACE-HMS6332-iB combines board-level flexibility with professional IP camera performance. Its Sony STARVIS sensor, 1080p video, True WDR, low-light sensitivity, ONVIF support, fast RTOS boot-up, and ultra-compact 32 × 32mm design make it an excellent choice for embedded surveillance, commercial security, OEM integration, and compact network video systems.
