KT&C KNC-HMS6330-iB 2MP Mini IP Camera, Sony STARVIS CMOS, 1080p, 3.6mm Lens, 30×30mm
KT&C KNC-HMS6330-iB 2MP Mini IP Camera, Sony STARVIS CMOS, 1080p, 3.6mm Lens, 30×30mm
SKU:KNC-HMS6330-iB
Couldn't load pickup availability

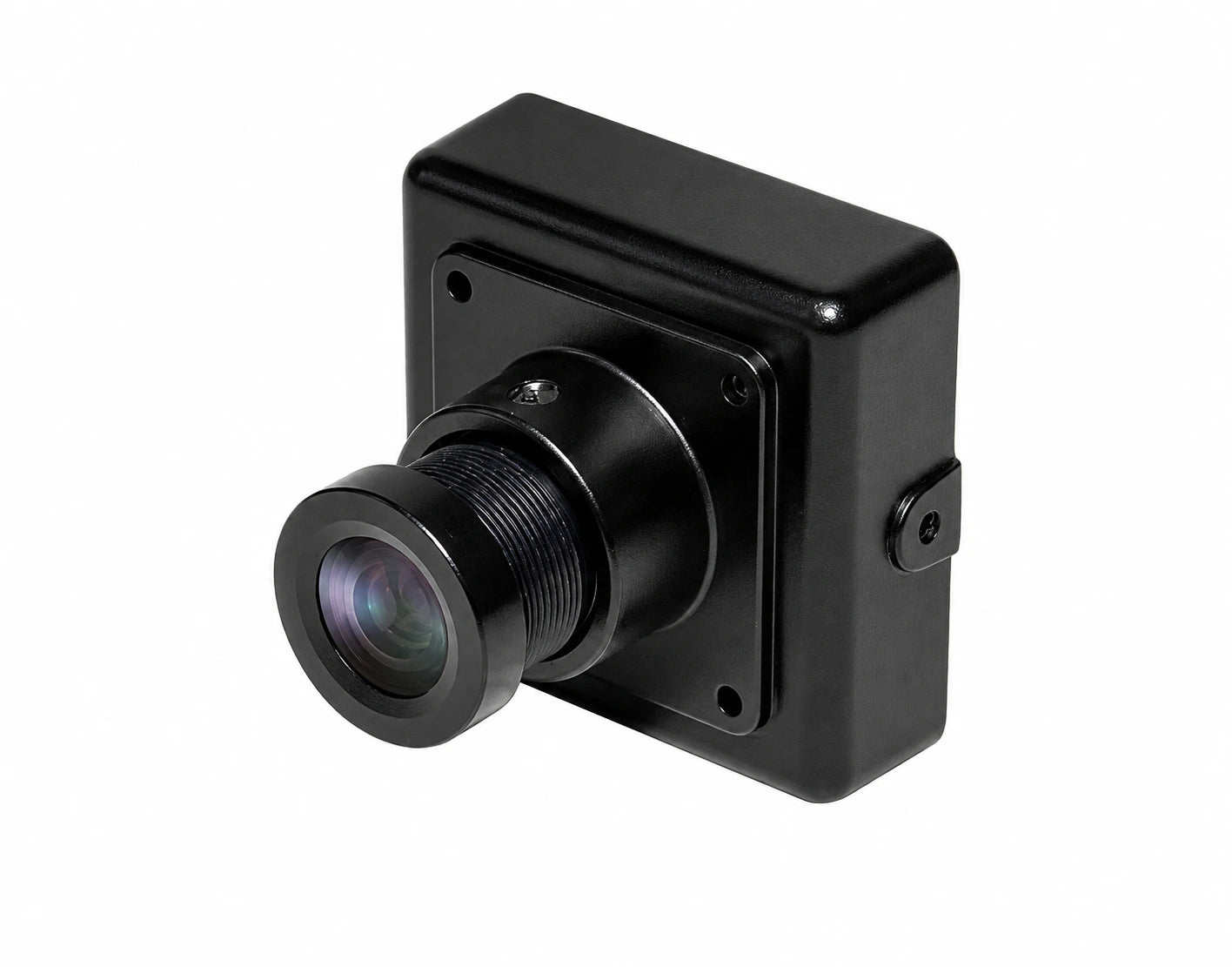

KT&C KNC-HMS6330-iB 2MP Miniature IP Camera
The KT&C KNC-HMS6330-iB is a compact NDAA compliant 2MP IP camera designed for discreet surveillance, access control, retail security, commercial monitoring, and embedded IP video applications.
Built with a 1/2.8" Sony STARVIS progressive scan CMOS sensor, the KNC-HMS6330-iB delivers crisp 1080p Full HD video at up to 30fps with enhanced low-light performance down to 0.01 Lux with DSS On. Its miniature 30 × 30mm form factor makes it ideal for installations where a full-size security camera is too large or too visible.
This KT&C mini IP camera includes a fixed 3.6mm lens, electronic Day/Night operation, Double Shutter WDR up to 116dB, 2D/3D digital noise reduction, backlight compensation, motion detection, and privacy masking. These features help produce clear video in challenging lighting environments such as entrances, hallways, retail counters, access points, and indoor commercial spaces.
With support for H.264 and MJPEG compression, triple-stream IP output, ONVIF compatibility, IPv4 networking, and power via 12VDC or PoE IEEE 802.3af, the KNC-HMS6330-iB is easy to integrate into professional IP surveillance systems, NVRs, and security network environments.
Key Features:
- 2MP Full HD miniature IP camera
- 1/2.8" Sony STARVIS progressive scan CMOS sensor
- 1920 × 1080 resolution at up to 30fps
- Fixed 3.6mm lens for wide-area monitoring
- NDAA compliant for professional security installations
- Low-light performance down to 0.01 Lux with DSS On
- Double Shutter WDR up to 116dB
- Electronic Day/Night operation
- 2D/3D Digital Noise Reduction
- H.264 High/Main/Base Profile and MJPEG compression
- Triple-stream output with up to 3 video profiles
- ONVIF compliant for IP security system integration
- Motion detection with 60 × 34 motion blocks
- Privacy mask support with up to 16 zones
- 12VDC or PoE IEEE 802.3af power support
- Compact Ø30 × 30mm design
Ideal Applications:
- Miniature IP video surveillance
- Discreet indoor security camera installations
- Access control and entry monitoring
- Retail store and point-of-sale monitoring
- Commercial building security
- Educational facility surveillance
- Industrial and embedded IP camera systems
- Low-light indoor monitoring
- OEM security and custom enclosure integration
Technical Specifications
| Model | KT&C KNC-HMS6330-iB |
| Image Sensor | 1/2.8" Progressive Scan Sony STARVIS CMOS |
| Effective Pixels | 1945(H) × 1097(V) |
| Resolution | 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240 |
| Max Frame Rate | 1080p 30/25fps |
| Lens | Fixed 3.6mm lens |
| Minimum Illumination | 0.05 Lux F2.5 DSS Off / 0.01 Lux DSS On |
| WDR | Double Shutter WDR, Max. 116dB |
| Day/Night | Auto / Color / B&W Electronic Day/Night |
| DNR | 2D / 3D Digital Noise Reduction |
| Video Compression | H.264 High/Main/Base Profile, MJPEG |
| Streaming | Multiple streaming up to 3 profiles, Unicast |
| Bitrate Control | CBR / VBR / CVBR |
| Ethernet | 10/100 Base-T LAN |
| Protocols | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP |
| API | ONVIF |
| Motion Detection | 60 × 34 Motion Blocks |
| Privacy Mask | 16 Zones |
| Power Source | 12VDC ±10% / PoE IEEE 802.3af |
| Power Consumption | Max. 190mA at 12VDC / Max. 3.0W PoE |
| Dimensions | Ø30 × 30mm |
| Weight | Approx. 79.6g with PoE cable |
| Optional Lens | Supercone Pinhole 4.3mm |
Why Choose the KT&C KNC-HMS6330-iB?
The KNC-HMS6330-iB combines a compact board-style camera design with professional IP surveillance features. Its Sony STARVIS sensor, 1080p30 video, WDR, low-light performance, ONVIF support, and PoE power make it a strong choice for security integrators, OEMs, and commercial users who need a small but capable IP camera for discreet monitoring.
