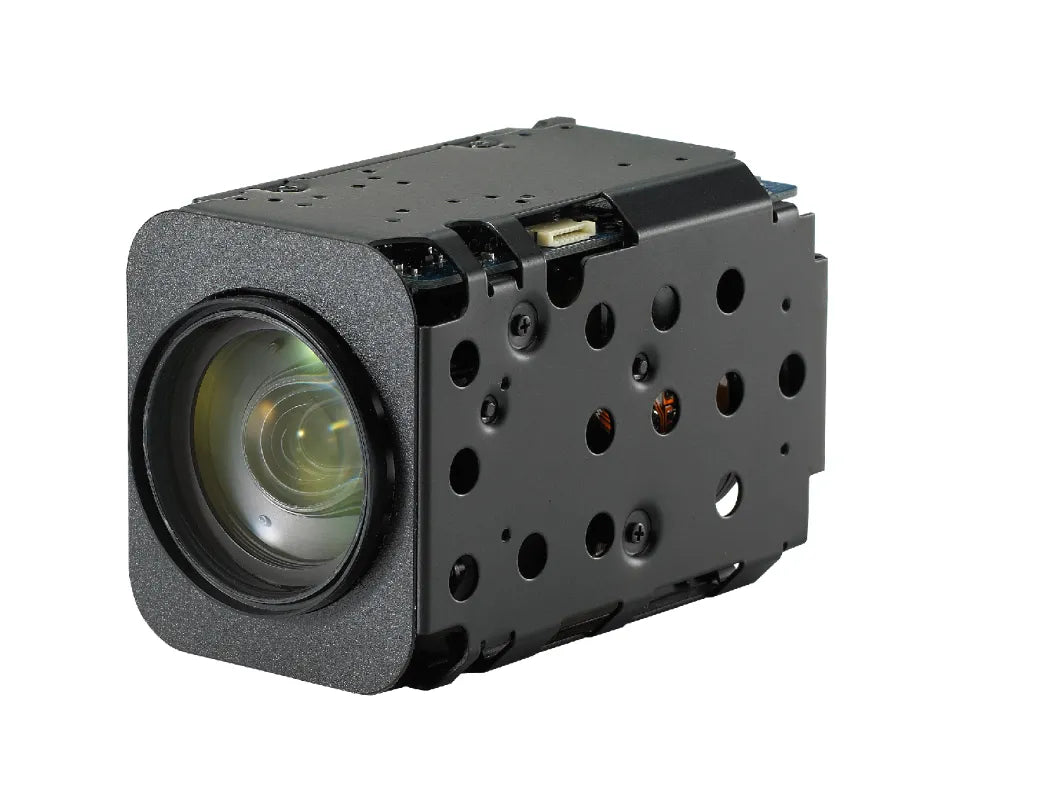

Wonwoo MC-308 2MP 30x Zoom Camera Module (Sony CMOS, LVDS / EX-SDI / CVBS)

The MC-308 2MP 30x Zoom Camera Module is a high-performance block camera designed for security integration, surveillance systems, and OEM imaging platforms. Built around a 1/2.8" Sony CMOS sensor, the MC-308 delivers full HD 1080p video at up to 60fps, ensuring sharp, fluid imaging in dynamic environments.

With a powerful 30x optical zoom (4.6mm–136mm) and 32x digital zoom, this module enables long-range monitoring while maintaining image clarity. Advanced imaging features such as Wide Dynamic Range (WDR), 2D/3D Digital Noise Reduction, Digital Image Stabilization, and Defog ensure reliable performance in challenging lighting and weather conditions.

The MC-308 is engineered for seamless system integration, supporting LVDS, EX-SDI, and CVBS outputs, along with VISCA and Pelco-D/P control protocols. Its compact design and flexible interface options make it an ideal choice for PTZ systems, mobile surveillance, industrial monitoring, and embedded vision applications.

Key Features:

• Model: MC-308 2MP Zoom Camera Module
• Sensor: 1/2.8" Sony CMOS (2MP)
• Resolution: 1080p @ 60fps / 30fps, 720p @ 60fps / 30fps
• Zoom: 30x Optical (4.6mm–136mm) + 32x Digital
• Video Outputs: LVDS, EX-SDI, CVBS
• Day/Night: ICR (True Day & Night)
• Image Processing: WDR, 2D/3D DNR, Digital Image Stabilization
• Low Light Performance: Down to 0.005 lux (color)
• Defog & HLC: Enhanced visibility in fog and bright scenes
• Motion Detection: Intelligent detection (up to 3 zones)
• Privacy Masking: Up to 24 programmable areas
• Control Protocols: VISCA, Pelco-D, Pelco-P
• Power Input: 9V–15V DC
• Compact Size: 50 × 60 × 93 mm

Applications:

• Surveillance & Security Systems (long-range monitoring, PTZ integration)
• Law Enforcement & Public Safety Cameras
• Traffic Monitoring & ITS Systems
• Mobile & Vehicle Surveillance Platforms
• Industrial Inspection & Remote Monitoring
• Border Security & Perimeter Protection
• UAV / Robotics Vision Integration
