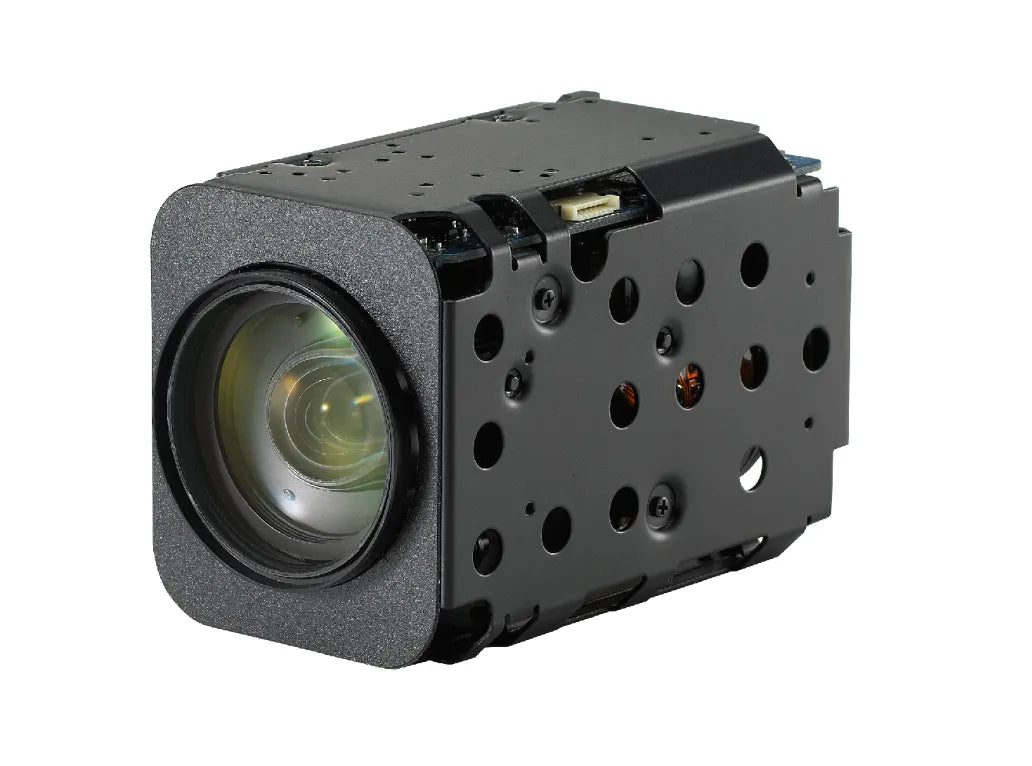

Wonwoo MC-308B 2MP 30x Zoom Camera Module | HD-SDI / EX-SDI / HD-TVI / CVBS Output

The MC-308B camera module from Wonwoo is engineered for integrators and OEMs seeking a compact, high-zoom block camera with flexible video outputs and robust image enhancement features.

Built around a 1/2.8" Sony CMOS sensor, the MC-308B delivers Full HD 1080p at up to 60fps, ensuring smooth, high-detail video capture for both real-time monitoring and recorded footage. Its 30x optical zoom (4.6mm–136mm) enables precise long-distance surveillance, while 32x digital zoom extends reach even further.

Designed for compatibility across modern and legacy systems, the MC-308B supports HD-SDI, EX-SDI, HD-TVI, and CVBS outputs, making it ideal for system upgrades and hybrid deployments.

Advanced image processing technologies—including Wide Dynamic Range (WDR), 2D/3D Digital Noise Reduction, Digital Image Stabilization, and Defog—ensure consistent performance in challenging lighting and environmental conditions.

With support for VISCA and Pelco-D/P protocols, this module integrates seamlessly into PTZ camera systems, remote monitoring platforms, and custom surveillance solutions.

Key Features:

• MC-308B SKU-Optimized Design for easy system identification and sourcing
• 1/2.8" Sony CMOS Sensor for high-quality Full HD imaging
• 1080p @ 60fps / 30fps, 720p @ 60fps / 30fps
• 30x Optical Zoom (4.6mm–136mm) for long-range capture
• 32x Digital Zoom for extended reach
• Multi-Format Video Output: HD-SDI, EX-SDI, HD-TVI, CVBS
• Wide Dynamic Range (WDR) for high-contrast scenes
• 2D + 3D Digital Noise Reduction (DNR) for low-light clarity
• Digital Image Stabilization (DIS) reduces motion blur
• Defog Function for improved visibility in harsh conditions
• Day & Night (ICR) automatic switching
• High Light Compensation (HLC) for glare reduction
• Privacy Masking & Motion Detection for security applications
• VISCA / Pelco-D / Pelco-P Protocol Support for PTZ integration

Applications:

• PTZ Camera Systems & Dome Cameras
• Long-Range Surveillance & Perimeter Security
• Traffic Monitoring & ITS Systems
• Industrial & Facility Security
• City Surveillance / Smart City Projects
• Border & Critical Infrastructure Monitoring
• OEM Camera Integration & Custom Builds
