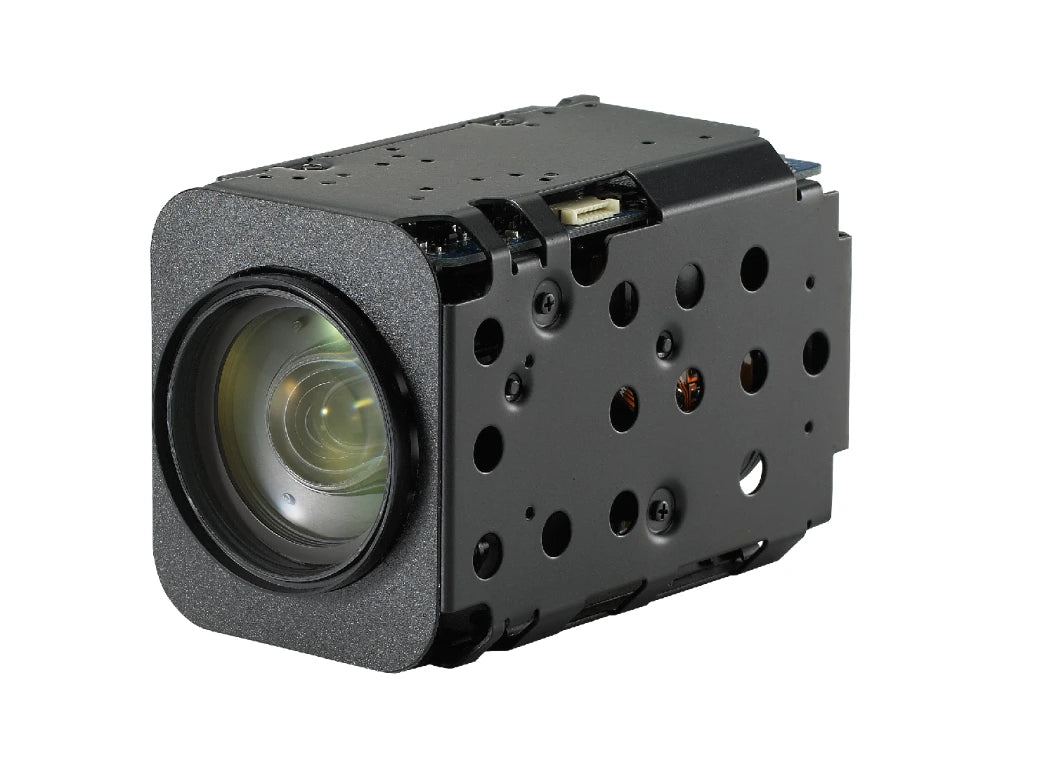

Wonwoo MC-A308 2MP 30x Zoom Camera Module | Sony CMOS | HD-SDI / AHD / EX-SDI / CVBS

The Wonwoo MC-A308 is a high-performance 2MP 30x optical zoom camera module engineered for professional surveillance, OEM integration, and PTZ camera systems. Built around a 1/2.8" Sony CMOS sensor, the MC-A308 delivers reliable Full HD imaging with excellent low-light performance, wide dynamic range, and advanced image processing.

Designed for system integrators and security professionals searching by part number (MC-A308), this module offers flexible video outputs including HD-SDI, EX-SDI, AHD, and CVBS, ensuring compatibility with a wide range of legacy and modern systems.

With 30x optical zoom (4.6mm–136mm) and 32x digital zoom, the MC-A308 enables long-range monitoring while maintaining image clarity. Advanced features like defog, motion detection, digital image stabilization, and privacy masking make it ideal for demanding surveillance environments.

Key Features:

• Model: MC-A308 (SKU-optimized for search visibility)
• Sensor: 1/2.8" 2MP Sony CMOS
• Resolution: 1080p @ 30fps, 720p @ 60/30fps
• Zoom:
• 30x Optical (4.6mm – 136mm)
• 32x Digital Zoom
• Video Outputs: HD-SDI, EX-SDI, AHD, CVBS
• Day/Night: ICR (True Day & Night)
• Wide Dynamic Range (WDR) for high-contrast scenes
• Digital Noise Reduction: 2D + 3D DNR
• Digital Image Stabilization (DIS)
• Defog Function: Enhanced visibility in haze/fog
• High Light Compensation (HLC)
• Motion Detection & Privacy Masking
• Protocols: VISCA, Pelco-D, Pelco-P
• Low Light Sensitivity: Down to 0.0008 lux (BW DSS)
• S/N Ratio: >50dB

Applications:

• PTZ Camera System Integration
• City Surveillance & Traffic Monitoring
• Perimeter Security & Critical Infrastructure
• Mobile Surveillance (Vehicle / UAV systems)
• Industrial Inspection & Remote Monitoring
• Law Enforcement & Public Safety Cameras
• Broadcast / Long-Range Observation Systems
