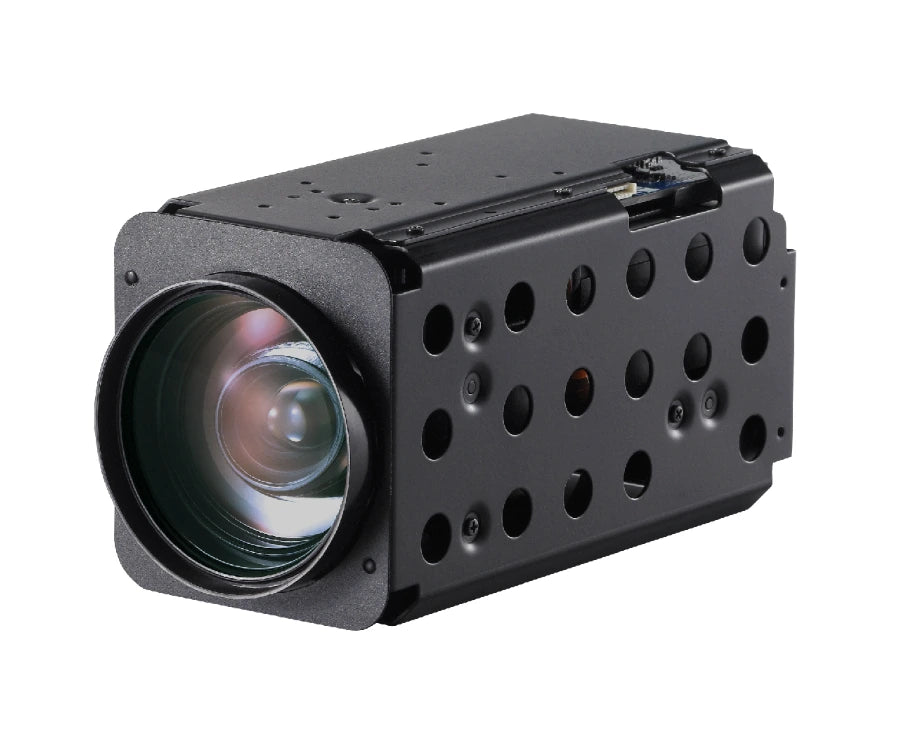

Wonwoo MC-G365B Global Shutter 2MP 36x Zoom Camera Module | HD-SDI / EX-SDI / HD-TVI / CVBS

The MC-G365B from Wonwoo is a high-performance 2MP global shutter zoom camera module engineered for precision imaging, long-range surveillance, and motion-critical applications. Designed for integrators and OEM systems, the MC-G365B combines 36x optical zoom (6mm–216mm) with a Sony 1/2.3" global shutter CMOS sensor, delivering sharp, distortion-free imaging even in fast-moving environments.

Unlike rolling shutter alternatives, the MC-G365B global shutter architecture eliminates motion artifacts, making it ideal for UAV systems, traffic monitoring, and industrial inspection. With support for multiple video outputs (HD-SDI, EX-SDI, HD-TVI, CVBS), this module offers flexible integration into both modern and legacy surveillance infrastructures.

Advanced image processing features such as digital image stabilization, 2D/3D noise reduction, defog, and WDR ensure reliable performance in challenging lighting conditions. Built-in support for VISCA and Pelco-D/P protocols allows seamless control integration across a wide range of PTZ and embedded systems.

If you're searching for a high-zoom global shutter camera module by part number MC-G365B, this solution delivers the performance, flexibility, and reliability required for professional imaging applications.

Key Features:

• MC-G365B 2MP Sony Global Shutter Sensor – Eliminates motion distortion for accurate imaging
• 36x Optical Zoom (6mm–216mm) – Long-range detail capture with 32x digital zoom
• Full HD Output – 1080p @ 60fps / 30fps and 720p options
• Multi-Interface Video Output – HD-SDI, EX-SDI, HD-TVI, CVBS
• Excellent Low-Light Performance – Down to 0.01 lux (BW)
• Wide Aperture Range – F1.5 (wide) to F4.8 (tele)
• Day & Night ICR Filter – True 24/7 surveillance capability
• Digital Image Stabilization – Reduces vibration in mobile applications
• Advanced Image Processing – WDR, 2D/3D DNR, Defog, HLC/BLC
• Smart Functions – Motion detection, privacy masking, defect detection
• Flexible Control Protocols – VISCA, Pelco-D, Pelco-P
• Compact OEM Design – Ideal for system integration

Applications:

• Long-Range Surveillance Systems
• Border & Perimeter Security
• UAV / Drone Imaging Systems
• Traffic Monitoring & ITS
• Industrial Inspection & Automation
• Robotics Vision Systems
• Mobile & Vehicle-Mounted Cameras
• Marine & Coastal Surveillance
• Law Enforcement & Tactical Imaging
