Wonwoo MC-S308 2MP 30x Zoom Camera Module | Sony CMOS | LVDS / EX-SDI / CVBS Output

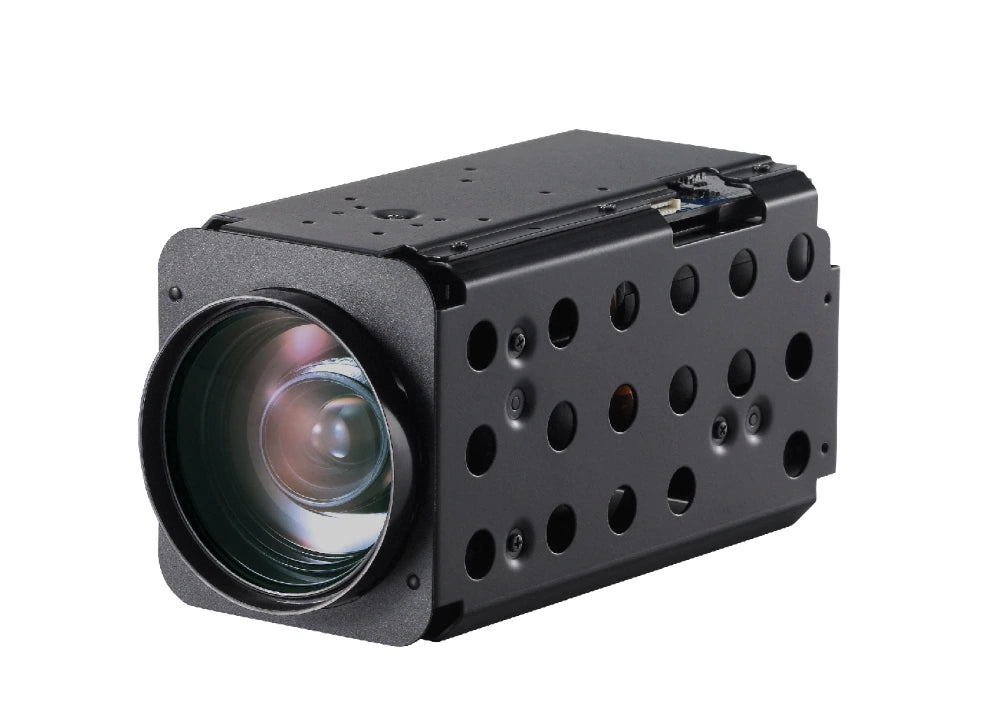

The Wonwoo MC-S308 is a high-performance 2MP 30x optical zoom camera module engineered for security, surveillance, and OEM system integration. Built around a 1/2" Sony CMOS sensor, the MC-S308 delivers crisp 1080p video at up to 60fps, along with excellent low-light sensitivity and advanced image processing.

Designed for integrators and engineers searching by part number (MC-S308), this module provides flexible video outputs (LVDS, EX-SDI, CVBS) and supports industry-standard VISCA and Pelco-D/P protocols, making it easy to deploy across a wide range of surveillance and embedded vision systems.

With 30x optical zoom (6mm–180mm) and 32x digital zoom, combined with WDR, DNR, image stabilization, and defog, the MC-S308 ensures clear imaging in dynamic and challenging environments.

Key Features:

• Model: MC-S308 (SKU-optimized for search visibility)
• Sensor: 1/2" Sony CMOS, 2MP resolution
• Video Output: LVDS, EX-SDI, CVBS (multi-interface flexibility)
• Resolution:
• 1080p @ 60fps / 30fps
• 720p @ 60fps / 30fps
• Zoom:
• 30x Optical (6mm – 180mm)
• 32x Digital Zoom
• Aperture: F1.5 (wide) ~ F4.3 (tele)
• Day/Night: ICR (True Day & Night)
• WDR: Wide Dynamic Range for high-contrast scenes
• DNR: 2D + 3D Digital Noise Reduction
• Image Stabilization: Digital stabilization for vibration reduction
• Defog: Enhanced visibility in haze/fog conditions
• Motion Detection: Intelligent detection (up to 3 zones)
• Privacy Masking: Up to 24 programmable areas
• Protocols: VISCA, Pelco-D, Pelco-P
• Control Interface: Serial communication with multiple baud rates
• Low Light Performance: Down to 0.01 lux (B/W mode)

Applications:

• PTZ Camera Systems & Dome Cameras
• Long-Range Surveillance & Perimeter Security
• Traffic Monitoring & ITS Systems
• Mobile Surveillance (vehicles, drones, robotics)
• Industrial Vision & Remote Monitoring
• Border & Critical Infrastructure Security
• Custom OEM Camera Integration Projects
