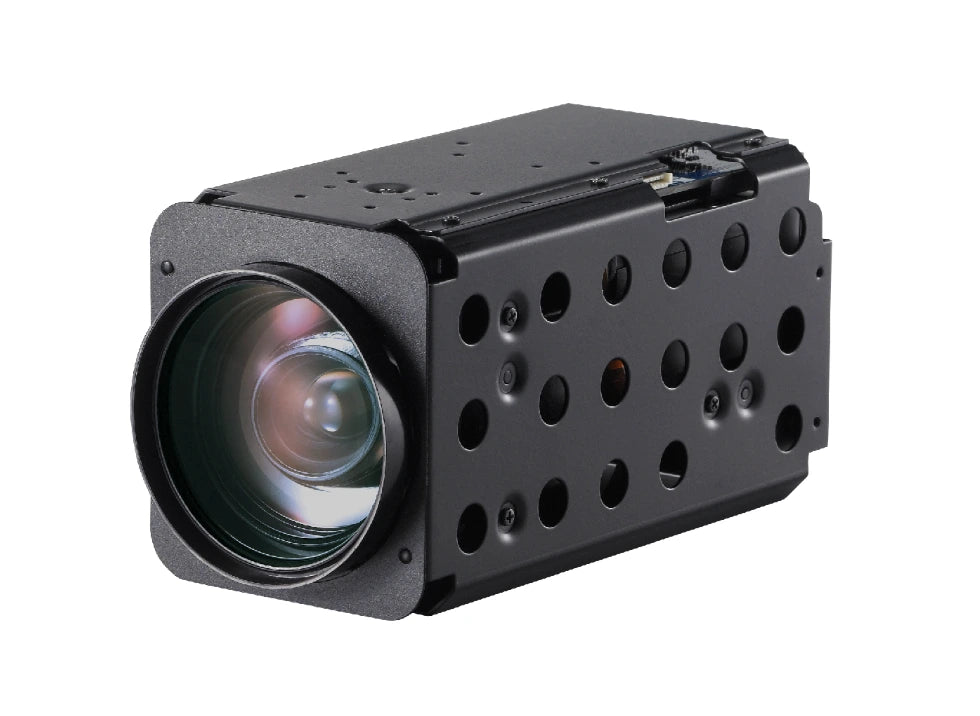

Wonwoo MC-S309Q 4MP 30x Zoom Block Camera Module | LVDS / EX-SDI / CVBS Output

The Wonwoo MC-S309Q is a high-performance 4MP 30x optical zoom block camera module engineered for professional surveillance, PTZ camera systems, and industrial imaging applications. Built around a 1/1.8" Sony CMOS sensor, the MC-S309Q delivers sharp, high-resolution imaging with excellent low-light performance and advanced image processing.

Designed for system integrators and OEM applications, the MC-S309Q supports multiple video outputs (LVDS, EX-SDI, CVBS) and industry-standard control protocols including VISCA and Pelco-D/P, making it easy to integrate into existing security and vision systems.

With features like Wide Dynamic Range (WDR), Digital Noise Reduction (2D/3D DNR), Defog, and Image Stabilization, this module ensures clear, stable video even in challenging environments such as low light, fog, or high-contrast scenes.

The 30x optical zoom (6mm–180mm) combined with 32x digital zoom provides exceptional long-range visibility, making it ideal for perimeter monitoring, traffic systems, and critical infrastructure surveillance.

Key Features:

• Model: MC-S309Q (SKU-optimized for search visibility)
• Sensor: 1/1.8" Sony CMOS (6MP class sensor, 4MP output)
• Resolution: 1440p @ 30fps, 1080p @ 30fps, 720p @ 30fps
• Zoom: 30x Optical (6mm–180mm) + 32x Digital
• Aperture: F1.5 (Wide) to F4.3 (Tele)
• Video Outputs: LVDS, EX-SDI, CVBS
• Day/Night: ICR (True Day & Night)
• Image Processing:
• Wide Dynamic Range (WDR)
• 2D + 3D Digital Noise Reduction
• Digital Image Stabilization
• Defog Function
• High Light Compensation (HLC)
• Analytics: Motion Detection, Privacy Masking
• Control Protocols: VISCA, Pelco-D, Pelco-P
• Low Light Performance: Down to 0.005 lux (B/W DSS)
• Integration Ready: Ideal for PTZ and embedded systems

Applications:

• PTZ Camera Systems & OEM Integration
• City Surveillance & Smart Traffic Monitoring
• Perimeter Security & Critical Infrastructure
• Law Enforcement & Mobile Surveillance Units
• Industrial Inspection & Remote Monitoring
• Border Security & Long-Range Observation
• Aerial & Drone-Based Imaging Systems
