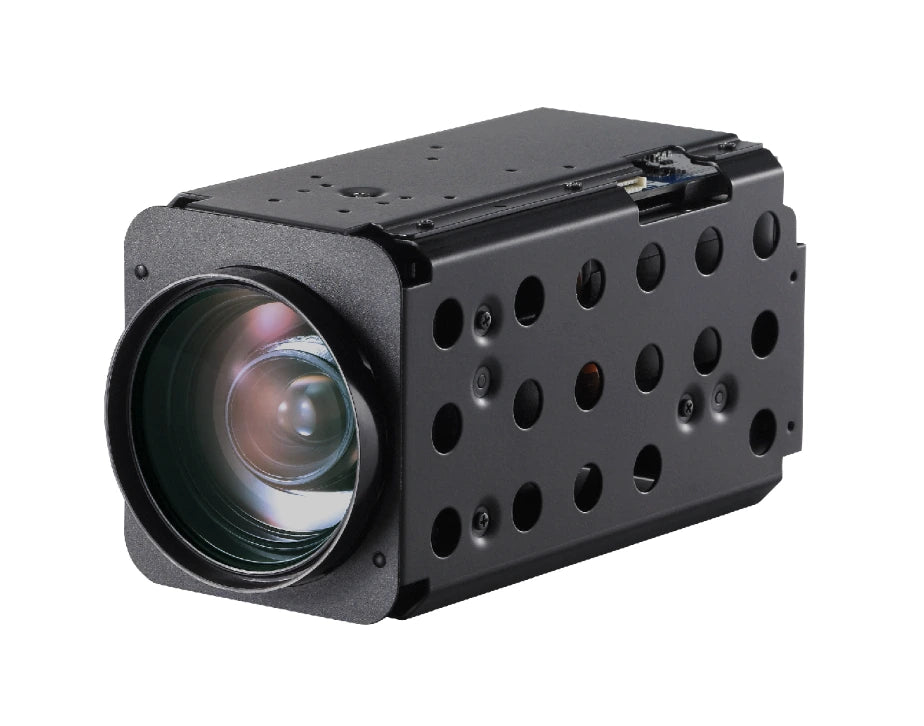

Wonwoo MC-S368 2MP 36x Zoom Camera Module | Sony CMOS, LVDS/EX-SDI/CVBS Output

The Wonwoo MC-S368 is a high-performance 2MP 36x optical zoom camera module designed for precision surveillance, PTZ integration, and OEM imaging systems. Built around a Sony 1/2" CMOS sensor, the MC-S368 delivers full HD 1080p video at up to 60fps, ensuring sharp, fluid imaging across dynamic environments.

Optimized for SKU-based sourcing and system integration, the MC-S368 supports multiple video outputs including LVDS, EX-SDI, and CVBS, making it highly adaptable for both legacy and modern security systems.

With 36x optical zoom (6mm–216mm) and 32x digital zoom, this module provides exceptional long-range visibility, while advanced image processing features such as WDR, 2D/3D DNR, digital stabilization, and defog ensure consistent performance in challenging lighting and environmental conditions.

Designed for integrators and OEMs, the MC-S368 supports VISCA and Pelco-D/P protocols, enabling seamless control in PTZ and remote monitoring systems.

Key Features:

• 2MP Sony 1/2" CMOS sensor for high-quality Full HD imaging
• 36x optical zoom (6mm–216mm) for long-range surveillance
• 32x digital zoom for extended detail capture
• 1080p @ 60fps / 30fps, 720p @ 60fps / 30fps
• Multi-output support: LVDS, EX-SDI, CVBS
• Wide Dynamic Range (WDR) for high-contrast scenes
• Advanced DNR (2D + 3D) for low-noise imaging
• Digital Image Stabilization (DIS) for vibration reduction
• Day & Night (ICR) for 24/7 operation
• Defog function for improved visibility in haze/fog
• High Light Compensation (HLC) for bright environments
• Privacy masking (up to 24 zones)
• Intelligent motion detection (up to 3 zones)
• VISCA, Pelco-D, Pelco-P protocol support
• Fast auto / manual focus control modes

Applications

• PTZ Camera Systems (pan-tilt-zoom integration)
• Long-range perimeter and border surveillance
• Traffic monitoring and smart city systems
• Industrial inspection and remote monitoring
• Law enforcement and public safety systems
• Broadcast and UAV/robotic vision integration
• OEM security camera development
