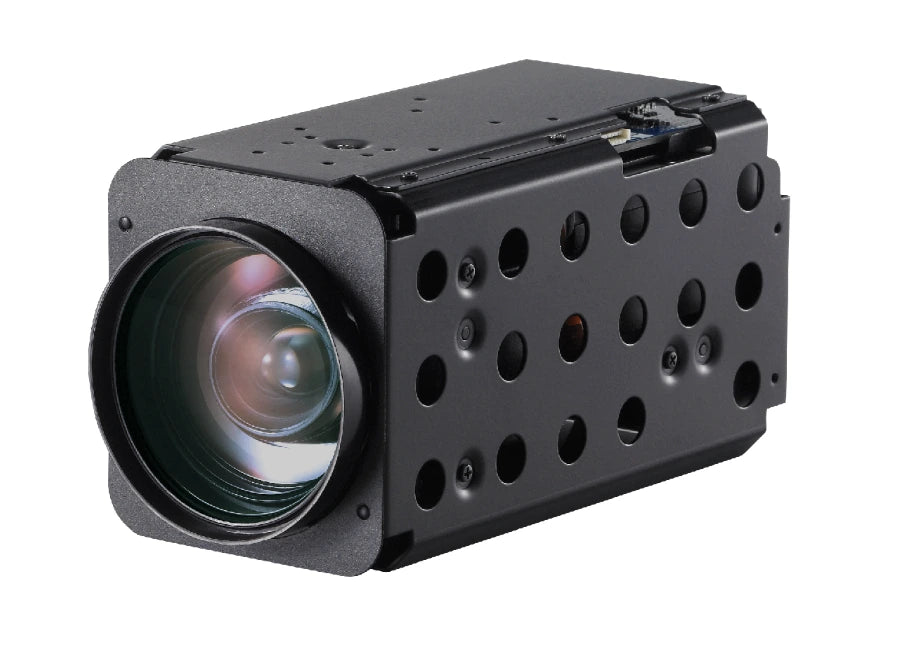

Wonwoo MC-S368B 2MP 36x Zoom Block Camera Module | HD-SDI / EX-SDI / HD-TVI

The MC-S368B is a high-performance 2MP block camera module designed for integrators and OEMs requiring long-range optical zoom, multi-format video output, and reliable low-light performance. Built around a 1/2" Sony CMOS sensor, this module delivers Full HD 1080p at up to 60fps, making it ideal for real-time surveillance, PTZ camera systems, and industrial imaging applications.

With 36x optical zoom (6mm–216mm) and additional 32x digital zoom, the MC-S368B enables precise subject capture across wide-area monitoring environments. Advanced imaging features such as Wide Dynamic Range (WDR), Digital Image Stabilization, Defog, and 2D/3D Noise Reduction ensure consistent image clarity in challenging lighting and weather conditions.

Designed for seamless integration, the MC-S368B supports VISCA and Pelco-D/P protocols and offers flexible video outputs including HD-SDI, EX-SDI, HD-TVI, and CVBS, making it compatible with a wide range of legacy and modern systems.

Key Features:

• SKU-Optimized Model: MC-S368B 2MP Zoom Camera Module
• Sensor: 1/2" Sony CMOS, ~2.1MP resolution
• Video Output: HD-SDI, EX-SDI, HD-TVI, CVBS (multi-format flexibility)
• Resolution & Frame Rates:
• 1080p @ 60/30fps
• 720p @ 60/30fps
• Powerful Zoom:
• 36x Optical Zoom (6mm – 216mm)
• 32x Digital Zoom
• Lens Aperture: F1.5 (wide) to F4.3 (tele)
• Low-Light Performance: Down to 0.01 lux (B/W)
• Wide Dynamic Range (WDR): Enhanced visibility in high-contrast scenes
• Image Processing:
• 2D + 3D Digital Noise Reduction
• Digital Image Stabilization
• Defog Function
• Smart Features:
• Motion Detection (up to 3 zones)
• Privacy Masking (up to 24 zones)
• Highlight Compensation (HLC/BLC)
• Day/Night Function: True Day & Night with ICR
• Control Protocols: VISCA, Pelco-D, Pelco-P
• Flexible Exposure Modes: Auto / Manual / Shutter Priority / Iris Priority

Applications:

• Long-Range Surveillance Systems (city, perimeter, critical infrastructure)
• PTZ Camera Integration & OEM Development
• Traffic Monitoring & License Plate Capture Systems
• Industrial Inspection & Remote Monitoring
• Border Security & Defense Surveillance
• Broadcast & Observation Systems
• Smart City & Public Safety Installations
