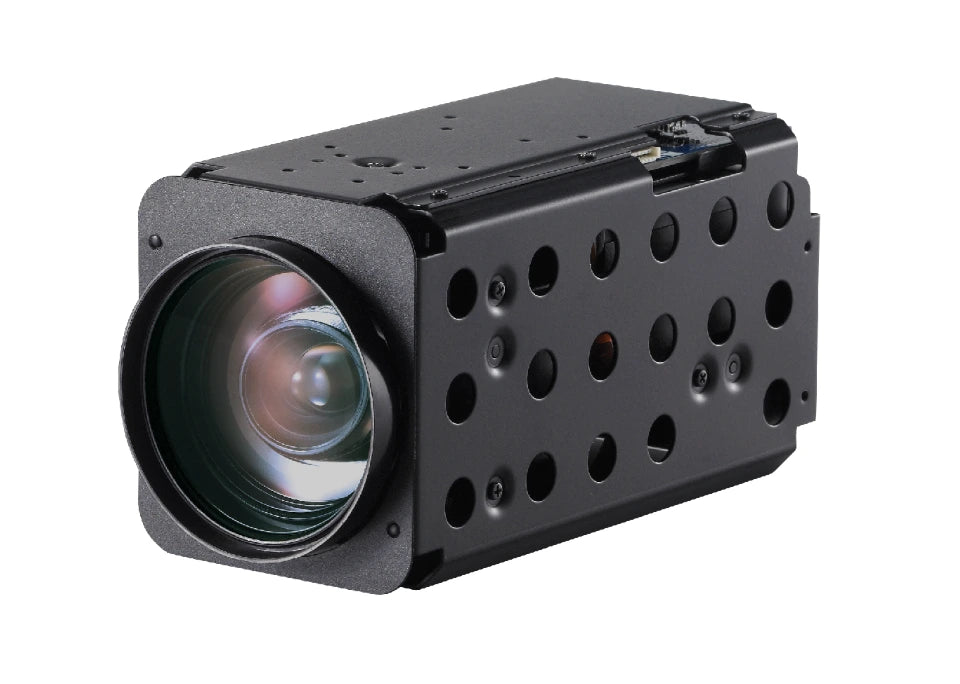

Wonwoo MC-S369 2MP 36x Zoom Camera Module | LVDS / EX-SDI / CVBS Output

The Wonwoo MC-S369 is a high-performance 2MP 36x optical zoom camera module engineered for integrators and OEMs requiring reliable long-range imaging with flexible video outputs. Built around a 1/2" Sony CMOS sensor, the MC-S369 delivers crisp Full HD 1080p video up to 60fps, making it ideal for real-time surveillance, PTZ systems, and industrial vision applications.

Designed for seamless system integration, the MCS-369 supports LVDS, EX-SDI, and CVBS outputs, along with VISCA and Pelco-D/P protocols, enabling compatibility with a wide range of control systems and video infrastructures. Its 36x optical zoom (6mm–216mm) combined with 32x digital zoom allows precise subject tracking at long distances without sacrificing image clarity.

Advanced image processing features such as Wide Dynamic Range (WDR), 2D/3D Digital Noise Reduction, Digital Image Stabilization, and Defog functionality ensure consistent performance across challenging lighting and environmental conditions. With built-in motion detection, privacy masking, and highlight compensation, the MC-S369 is optimized for security-critical deployments.

For customers searching by part number “MC-S369”, this module offers a proven, integration-ready solution for high-zoom, high-reliability imaging systems.

Key Features:

• MC-S369 2MP Sony CMOS Camera Module (1/2")
• 36x Optical Zoom (6mm–216mm) + 32x Digital Zoom
• Full HD Output: 1080p @ 60fps / 30fps, 720p up to 60fps
• Multi-Interface Output: LVDS, EX-SDI, CVBS
• Wide Dynamic Range (WDR) for high-contrast scenes
• 2D + 3D Digital Noise Reduction (DNR)
• Digital Image Stabilization (DIS) for steady imaging
• Day & Night (ICR) for 24/7 operation
• Defog Function for low-visibility environments
• Intelligent Motion Detection & Privacy Masking
• Highlight Compensation (HLC) for bright light control
• VISCA, Pelco-D, Pelco-P protocol support
• Compact integration-ready zoom block design

Applications:

• PTZ Camera Systems (Indoor & Outdoor)
• Long-Range Surveillance & Perimeter Security
• Traffic Monitoring & ITS Systems
• Industrial Inspection & Remote Monitoring
• UAV / Robotics Vision Systems
• Border & Critical Infrastructure Security
• Law Enforcement Mobile Surveillance
• Marine & Port Surveillance Systems
