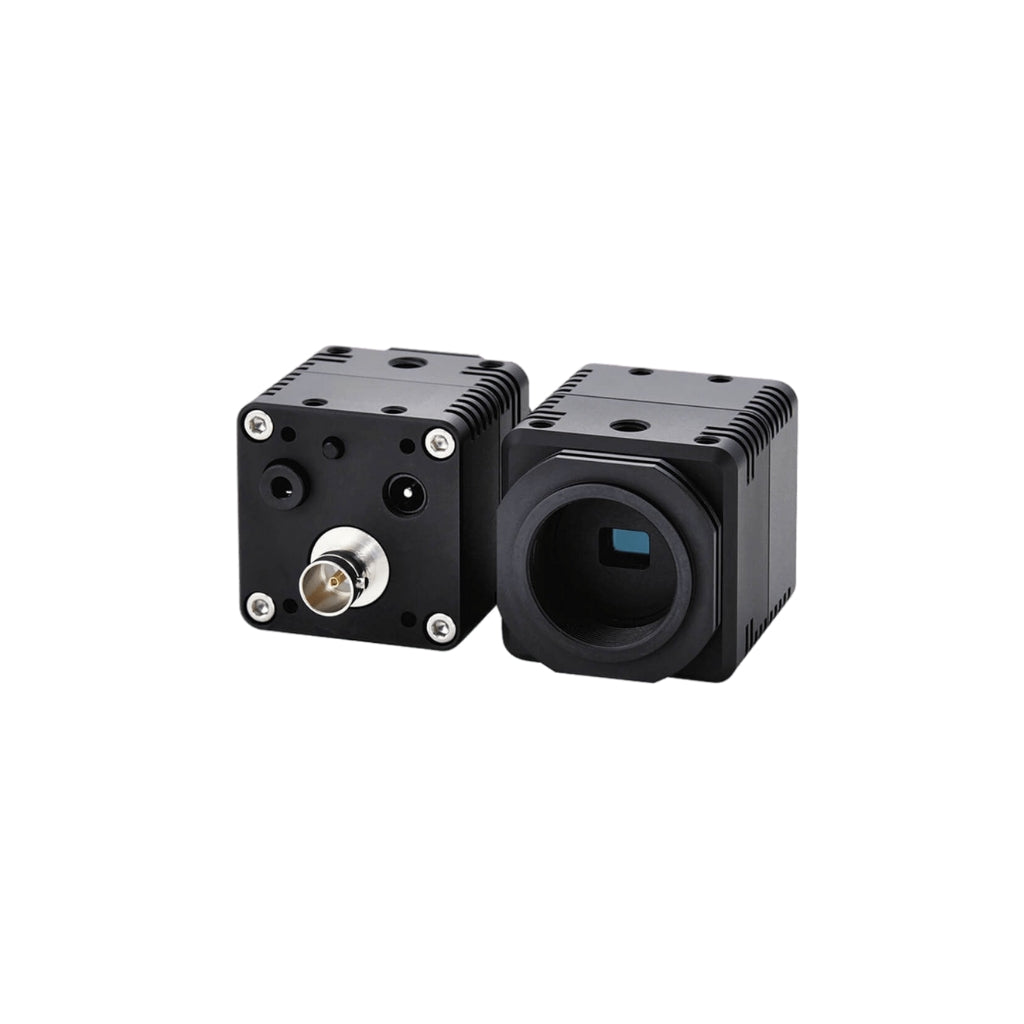

• STC-HD213SDI-CS Front Angled View
1 1

USA Security Systems

STCHD213SDICS

Omron STC-HD213SDI-CS 1/2.8" 1080p60 SDI/HDMI CS-Mount Camera

Omron STC-HD213SDI-CS 1/2.8" 1080p60 SDI/HDMI CS-Mount Camera

STC-HD213SDI-CS

$940.00 USD
$940.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

*Please note tariff fee is included in price*

The Omron STC-HD213SDI-CS is an NDAA compliant Full HD camera built for industrial imaging, machine vision monitoring, surveillance, and broadcast-style SDI workflows. Powered by a 1/2.8" Sony IMX291 CMOS sensor and rolling shutter technology, it delivers sharp 1920 x 1080 video with smooth motion performance up to 1080p60.

Designed for easy integration, the STC-HD213SDI-CS provides dual video outputs—SDI via BNC (3G-SDI/HD-SDI) and HDMI (DVI)—so you can connect directly to monitors, recorders, capture devices, or existing SDI infrastructure. With strong low-light capability rated down to 0.4 lux (F1.4, gain max) and a compact CS-mount form factor, it’s a practical choice for reliable 24/7 imaging in demanding environments.

Features:

  • 1/2.8" Sony IMX291 CMOS sensor – High-detail Full HD imaging with excellent sensitivity
  • Full HD 1080p resolution – Crisp 1920 x 1080 video for precise viewing and review
  • Up to 60 fps (1080p60) – Smoother motion capture for dynamic scenes
  • SDI output (3G-SDI/HD-SDI via BNC) – Professional digital video connectivity for long-run installs
  • HDMI (DVI) output – Simple direct connection to displays and capture hardware
  • Low-light performance – Minimum illumination down to 0.4 lux (F1.4, gain max)
  • CS-mount lens compatibility – Supports a wide range of interchangeable CS-mount lenses
  • Compact housing – Approx. 40 x 40 x 48.9 mm for tight integration spaces
  • Low power consumption – Under 3.3W for efficient 24/7 operation
  • OSD/UART control – Convenient configuration and system integration support

Applications:

  • Machine vision monitoring – Process verification, inspection viewing, and production oversight
  • Industrial imaging – Test setups, documentation, and automation system visibility
  • Surveillance & security (NDAA environments) – Facilities, infrastructure, and secure-site monitoring
  • Broadcast / AV workflows – SDI-compatible video pipelines requiring 1080p60 output
  • Traffic & situational monitoring – Real-time viewing where SDI cabling is preferred



FAQs - Omron STC-HD213SDI-CS Camera

Q1: Is the Omron STC-HD213SDI-CS camera NDAA compliant?
Yes. The STC-HD213SDI-CS is specified as NDAA compliant, making it suitable for procurement-sensitive deployments such as government, military, and other secure installations.

Q2: What video output options does the STC-HD213SDI-CS support?
The camera provides SDI output via BNC (3G-SDI/HD-SDI) and HDMI (DVI), giving flexibility for monitors, recorders, capture devices, and SDI infrastructure.

Q3: What is the minimum light sensitivity of this camera?
Minimum illumination is rated down to 0.4 lux at F1.4 (gain max), supporting strong performance for 24/7 monitoring in lower-light environments.

Q4: What type of lens mount does the STC-HD213SDI-CS use?
It uses a CS-mount, allowing compatibility with a wide range of interchangeable CS-mount lenses.

Q5: What frame rate does the camera support?
The camera supports up to 60 fps in Full HD, including 1080p60 for smooth, high-quality video capture.



Image Sensor 1/2.8" 2M Progressive Color CMOS (SONY: IMX291)
Shutter Type Rolling Shutter
HD Active Picture Elements 1,920 (H) x 1,080 (V)
Cell Size 2.9 (H) x 2.9 (V) µm
Sync. System Internal
Video Output DVI 1.0 conformity RGB
1080p60 / 1080p59.94 / 1080p50 / 1080p30 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 /
720p60 / 720p59.94 / 720p50 / Auto
Minimum Scene Illumination 0.4 Lux (Maximum Gain) @ F1.4
Camera Functions
ALC AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On)
Shutter Speed AEE or fixed exposure time control is selectable via UART communication (Default: AEE)
Extended Extend shutter frame unit (Up to 2.12 seconds): N/A
High Speed From 1/33,750 seconds (*1)
Gain AGC or Fixed gain is selectable via UART communication (Default: AGC)
0 to 45 dB
Gamma Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual)
White Balance Auto white balance / Manual white balance / Push to set white balance
White balance is selectable via UART (Default: Auto white balance)
WDR N/A
Mirror Image Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image
(Default: Normal image)
DSP User Preset 8 User preset is selectable via UART communication (Default: Preset 0)
Line Generator Four lines (Two horizontal and two vertical lines with all available colors)
(Default: Disable)
Circle Line Generator One circle
(Default: Disable)
Shadow Mask Generator Both horizontal and vertical with shading level are adjustable via UART communication
(Default: Disable)
Still Image Live video or freeze image is selectable via UART communication (Default: Live video)
Digital Zoom Support N/A
Communication +3.3V UART communication via 3.5Φ Stereo Jack
(Baud rate: 115,200bps / 57,600bps / 38,400bps / 19,200bps / 9,600bps)
Character Generator Built-in character generation function via UART communication
Defective Pixel Collection Support (Up to 256 points)
Power Input Voltage +9 to +15 Vdc (Typical: +12 Vdc)
Consumption Less than 3.2 W
Less than 2.1 W
SDI Models (STC-HD213SDI Series)
Model Number STC-HD213SDI / STC-HD213SDI-CS
STC-HD213SDIN / STC-HD213SDIN-CS
Image Sensor 1/2.8" 2M Progressive Color CMOS (SONY: IMX291)
Shutter Type Rolling Shutter
HD Active Picture Elements 1,920 (H) x 1,080 (V)
Cell Size 2.9 (H) x 2.9 (V) µm
Sync. System Internal
Video Output 3G-SDI (Physical layer: SMPTE 424M, Data Mapping: SMPTE 425M Level-A Compliant), 4:2:2 YCbCr 10bit
1080p60 / 1080p59.94 / 1080p50

HD-SDI (SMPTE 292M Compliant), 4:2:2 YCbCr 10bit
1080p30 / 1080p29.97 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50
(Default: 1080i59.94)
Minimum Scene Illumination 0.4 Lux (Maximum Gain) @ F1.4
Camera Functions
ALC AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On)
Shutter Speed AEE or fixed exposure time control is selectable via UART communication (Default: AEE)
Extended Extend shutter frame unit (Up to 2.55 seconds): N/A
High Speed From 1/33,750 seconds (*1)
Gain AGC or Fixed gain is selectable via UART communication (Default: AGC)
0 to 45 dB
Gamma Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual)
White Balance Auto white balance / Manual white balance / Push to set white balance
White balance is selectable via UART (Default: Auto white balance)
WDR N/A
Mirror Image Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image
(Default: Normal image)
Picture Modes 8 User preset is selectable via UART communication (Default: Preset 0)
Line Generator Four lines (Two horizontal and two vertical lines with all available colors)
(Default: Disable)
Circle Line Generator One circle
(Default: Disable)
Shadow Mask Generator Both horizontal and vertical with shading level are adjustable via UART communication
(Default: Disable)
Still Image Live video or freeze image is selectable via UART communication (Default: Live video)
Digital Zoom Support N/A
Communication +3.3V UART communication via 3.5Φ Stereo Jack
(Baud rate: 115,200bps / 57,600bps / 38,400bps / 19,200bps / 9,600bps)
Character Generator Built-in character generation function via UART communication
Defective Pixel Collection Support
Power Input Voltage +9 to +15 Vdc (Typical: +12 Vdc)
Consumption Less than 3.3 W
Less than 2.1 W
