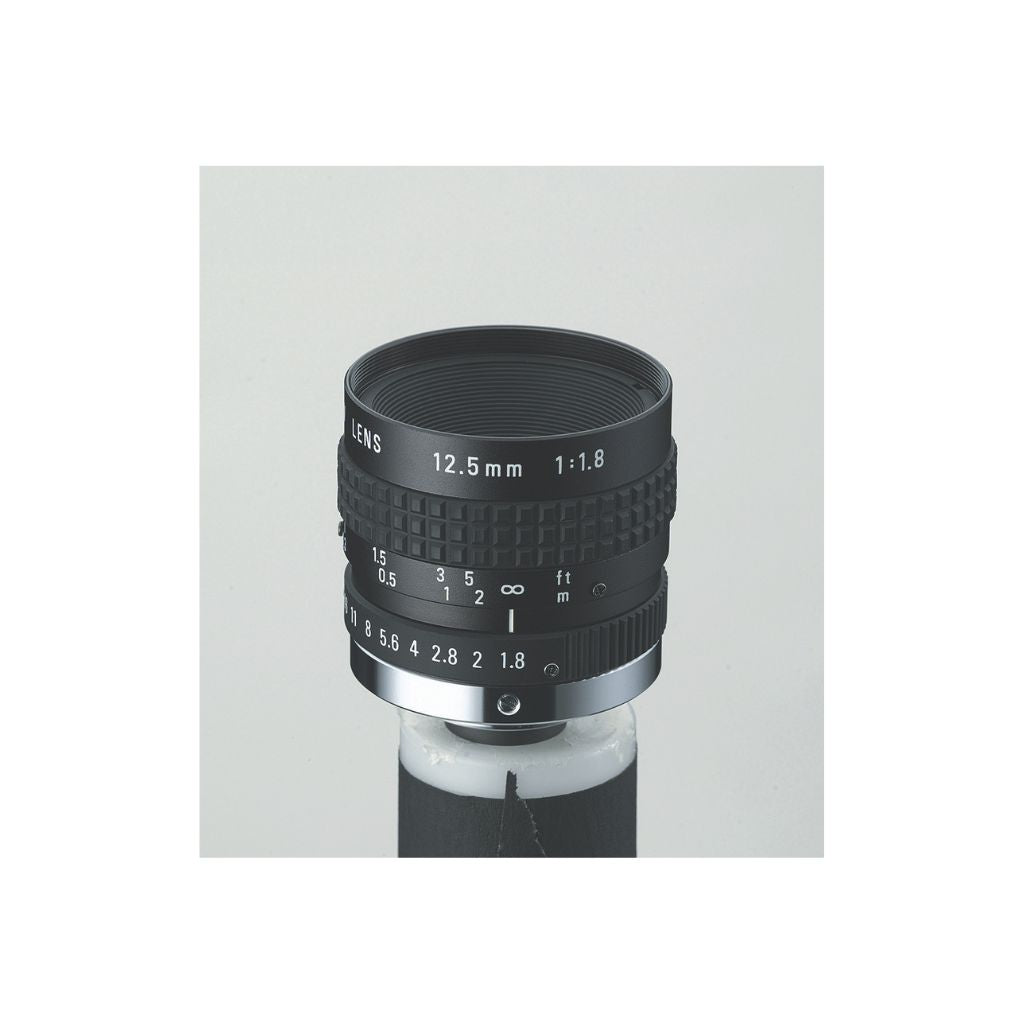

RICOH FL-BC1218A-VG – Industrial Machine Vision Lens | 1" VGA 12.5mm Manual Iris

*Please note tariff fee is included in price*

SKU focus: FL-BC1218A-VG (RICOH industrial machine vision lens) — sold by USA Security Systems.

Why choose the RICOH FL-BC1218A-VG?

• Focal length: 12.5mm
• Image format: 1" sensor coverage
• Resolution support: up to VGA
• Iris: Manual Iris
• Brand: RICOH industrial machine vision lens

Best-fit applications

• Automated optical inspection (AOI) and quality control
• Factory automation, robotics guidance, pick-and-place
• Measurement/metrology, barcode/label reading, sorting
• Edge detection and defect inspection in controlled lighting

Search terms this page targets

FL-BC1218A-VG, “RICOH FL-BC1218A-VG lens”, “12.5mm 1" machine vision lens”.

High-Performance Imaging with the RICOH FL-BC1218A-VG Lens

When it comes to advanced machine vision and industrial applications, the RICOH FL-BC1218A-VG (C21228KP) 1" 12.5mm VGA Manual Iris Lens is a top-tier choice, designed to meet the highest standards of precision and clarity. This lens, with its superior optical performance and innovative features, is essential for any application requiring accurate and reliable imaging.

Featuring a 12.5mm focal length and a fast maximum aperture ratio of 1:1.8, the RICOH FL-BC1218A-VG delivers sharp, detailed images across various industrial settings. The manual iris control enables users to fine-tune the aperture, ensuring optimal exposure and image quality, even in challenging lighting conditions.

Specifically engineered for the demands of machine vision systems, the FL-BC1218A-VG supports multiple sensor formats, including 1/3", 1/2", 2/3", and 1", making it versatile for various imaging tasks. Its robust design includes focus and iris lock screws, offering dependable stability in rigorous industrial environments.

Ideal for applications such as quality inspection, robotics, automated production, and precision monitoring, the RICOH FL-BC1218A-VG lens excels in providing the accuracy needed for high-performance industrial processes. Whether it’s identifying flaws in manufacturing or guiding robotic operations, this lens enhances efficiency and ensures top-tier results.

Upgrade your imaging systems with the RICOH FL-BC1218A-VG and experience cutting-edge technology that drives industrial innovation. Optimize your machine vision applications with a lens that guarantees precision, reliability, and exceptional image quality.

Format size	1, 2/3, 1/2, 1/3" format
Focal length	12.5 mm
Maximum aperture ratio	1:1.8
Iris range	1.8-Close
Mount	C
Horizontal Angle of View - 1/4" format	16.5°
Horizontal Angle of View - 1/3" format	22.0°
Horizontal Angle of View - 1/2" format	29.1°
Horizontal Angle of View - 2/3" format	39.6°
Horizontal Angle of View - 1" format	55.5°
Minimum object distance	0.3 m
Back focal length	10.36 mm
Filter size	40.5 P=0.5 mm

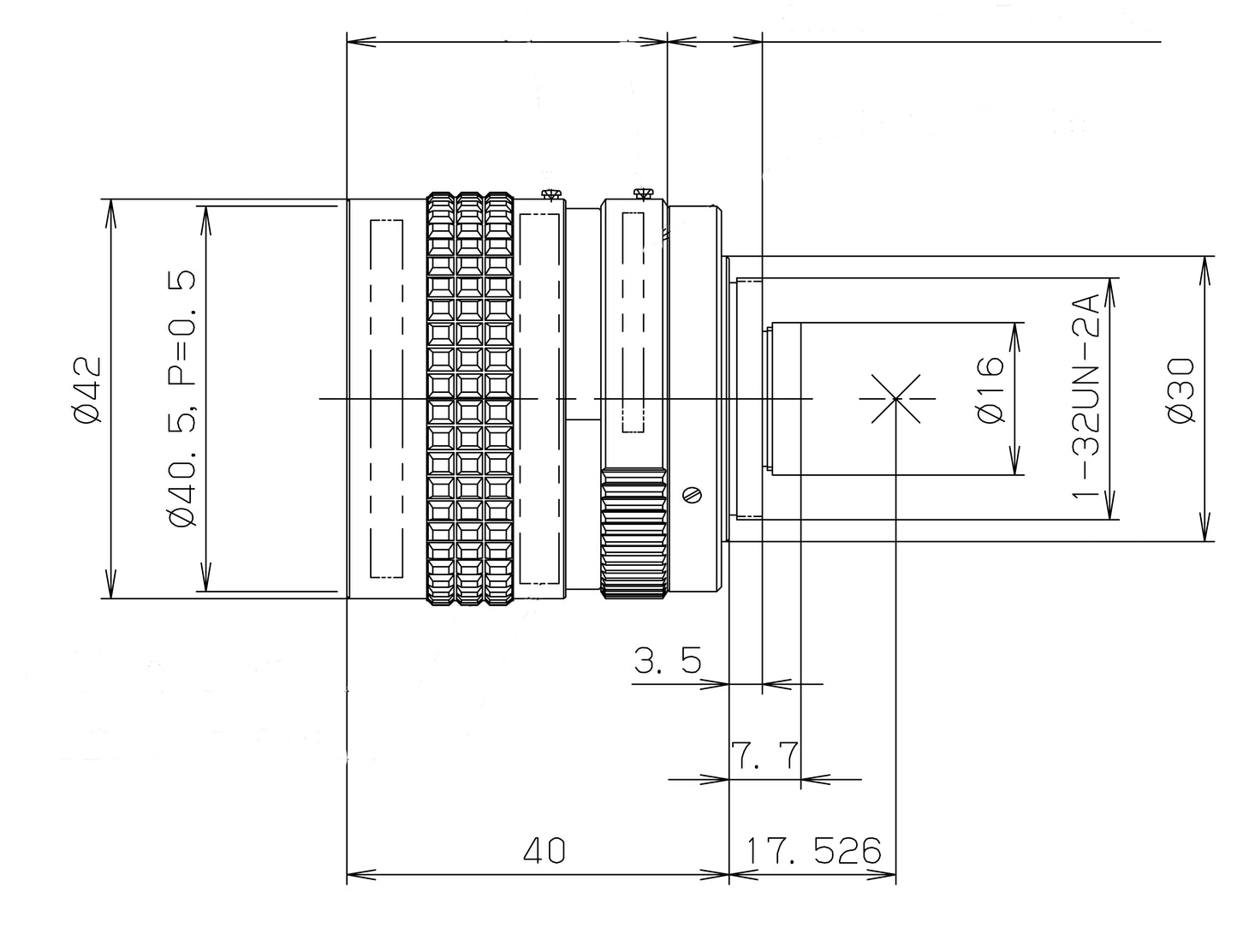

Dimensions	φ42x40 mm
Weight	95 g
Remarks	Focus & Iris lock screws
