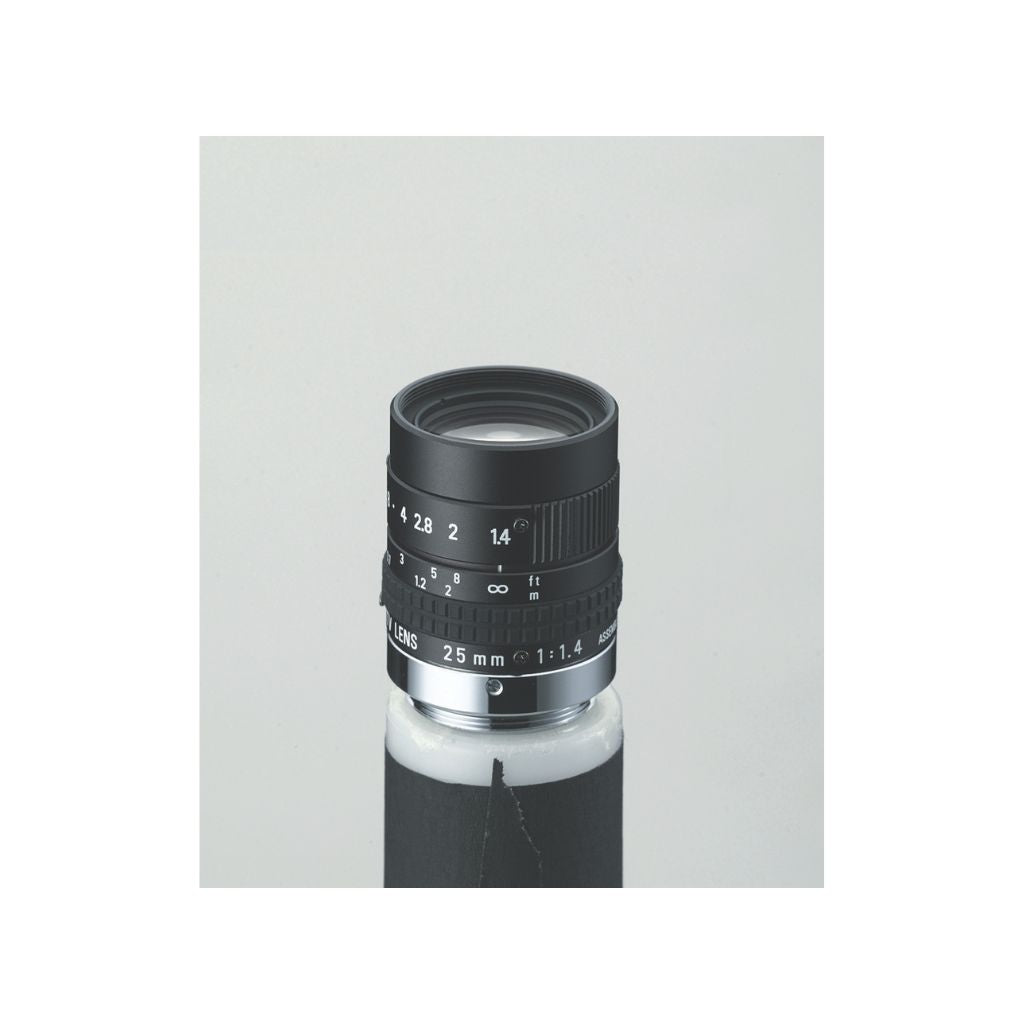

RICOH FL-BC2514D-VG 1" 25mm VGA Manual Iris Lens
RICOH FL-BC2514D-VG 1" 25mm VGA Manual Iris Lens
SKU:FL-BC2514D-VG
Couldn't load pickup availability
Unleash Precision with the Ricoh FL-BC2514D-VG Manual Iris Lens
The Ricoh FL-BC2514D-VG is a top-tier manual iris lens engineered for high-performance in industrial and machine vision applications. With a 25mm focal length and a maximum aperture of f/1.4, this lens ensures exceptional image clarity and precision, making it an ideal choice for demanding environments. The Ricoh FL-BC2514D-VG's C-mount compatibility, compact design (φ30×37.3 mm), and lightweight construction (76g) make it highly versatile and easy to integrate into various machine vision systems.
This lens stands out with its iris range of f/1.4 to f/22, offering precise control over light intake to deliver optimal image quality in a wide array of lighting conditions. The inclusion of focus and iris lock screws enhances stability, ensuring consistent and reliable performance even in dynamic industrial settings. Whether you're optimizing production line monitoring, conducting detailed inspections, or enhancing security systems, the Ricoh FL-BC2514D-VG delivers unmatched reliability and performance.
Optimize your imaging systems with the Ricoh FL-BC2514D-VG Manual Iris Lens, designed for crystal-clear, high-resolution imaging in industrial and machine vision applications. Upgrade your setup today to experience superior imaging quality with the Ricoh FL-BC2514D-VG.
Format size | 1, 2/3, 1/2, 1/3" format |
Focal length | 25 mm |
Maximum aperture ratio | 1:1.4 |
Iris range | 1.4-22 |
Mount | C |
Horizontal Angle of View - 1/4" format | 8.2° |
Horizontal Angle of View - 1/3" format | 11.0° |
Horizontal Angle of View - 1/2" format | 14.6° |
Horizontal Angle of View - 2/3" format | 20.1° |
Horizontal Angle of View - 1" format | 29.0° |
Minimum object distance | 0.3 m |
Back focal length | 14.98 mm |
Filter size | 27 P=0.5 mm |

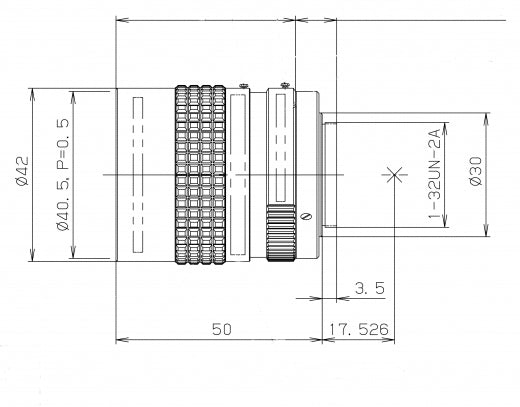

Dimensions | φ30x37.3 mm |
Weight | 76 g |
Remarks | Focus & Iris lock screws |
