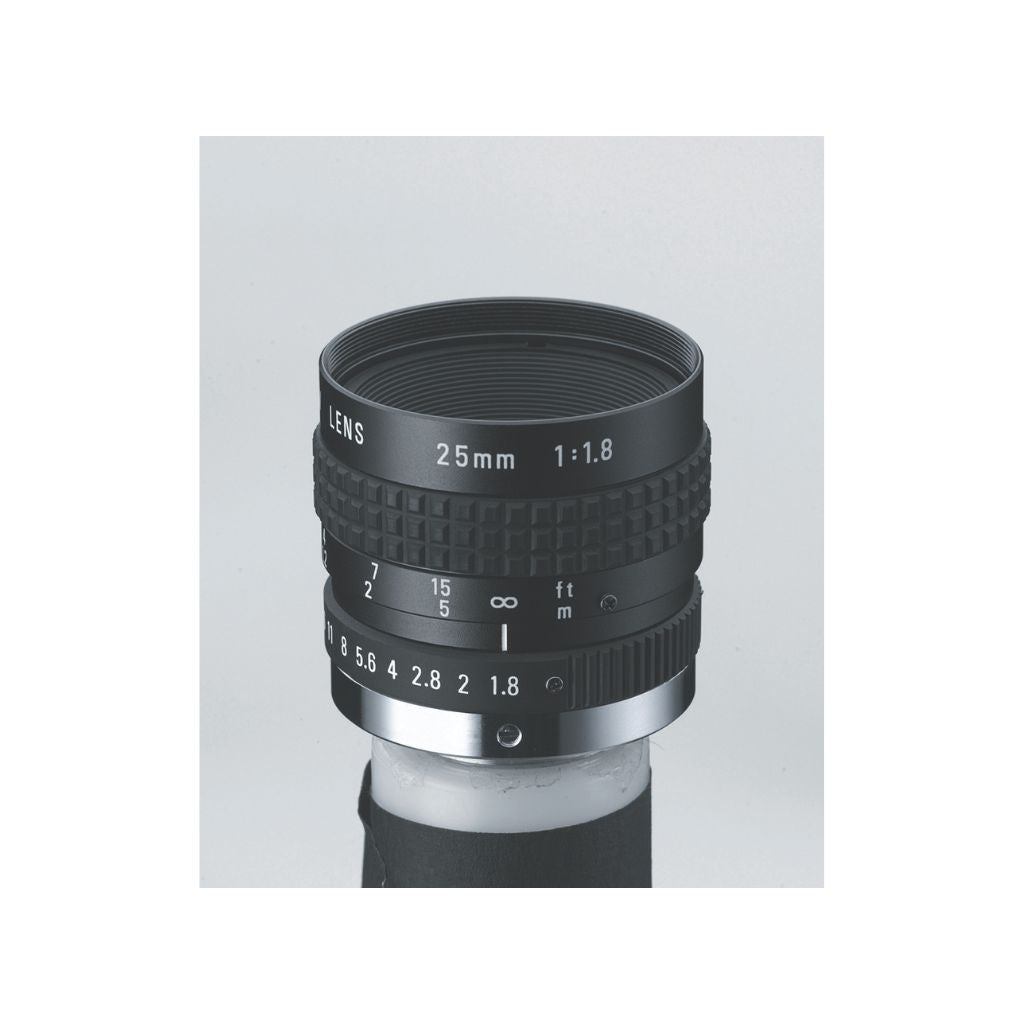

RICOH FL-BC2518-VG – Industrial Machine Vision Lens | 1" VGA 25mm Manual Iris

*Please note tariff fee is included in price*

SKU focus: FL-BC2518-VG (RICOH industrial machine vision lens) — sold by USA Security Systems.

Why choose the RICOH FL-BC2518-VG?

• Focal length: 25mm
• Image format: 1" sensor coverage
• Resolution support: up to VGA
• Iris: Manual Iris
• Brand: RICOH industrial machine vision lens

Best-fit applications

• Automated optical inspection (AOI) and quality control
• Factory automation, robotics guidance, pick-and-place
• Measurement/metrology, barcode/label reading, sorting
• Edge detection and defect inspection in controlled lighting

Search terms this page targets

FL-BC2518-VG, “RICOH FL-BC2518-VG lens”, “25mm 1" machine vision lens”.

Optimize Your Imaging System with the RICOH FL-BC2518-VG 25mm 1" Manual Iris Lens

Discover the superior performance of the RICOH FL-BC2518-VG lens, engineered to meet the rigorous demands of machine vision and industrial applications. This 25mm lens, designed for 1" format sensors, delivers exceptional image quality, ensuring sharp and detailed capture across various environments. The manual iris feature allows precise light control, optimizing image clarity even in challenging lighting conditions.

The FL-BC2518-VG lens offers a wide horizontal angle of view, making it ideal for comprehensive scene coverage. Its compact, lightweight design ensures easy integration into any imaging system, while the C-mount compatibility guarantees versatile usage across different setups. Whether you're upgrading your current machine vision system or starting a new project, the RICOH FL-BC2518-VG lens provides the reliability and performance you need to achieve outstanding results.

Upgrade to the RICOH FL-BC2518-VG lens today and experience enhanced precision and image quality in your machine vision and industrial applications.

Format size	1, 2/3, 1/2, 1/3" format
Focal length	25 mm
Maximum aperture ratio	1:1.8
Iris range	1.8-Close
Mount	C
Horizontal Angle of View - 1/4" format	8.2°
Horizontal Angle of View - 1/3" format	11.0°
Horizontal Angle of View - 1/2" format	14.6°
Horizontal Angle of View - 2/3" format	19.9°
Horizontal Angle of View - 1" format	28.2°
Minimum object distance	0.6 m
Back focal length	15.80 mm
Filter size	40.5 P=0.5 mm

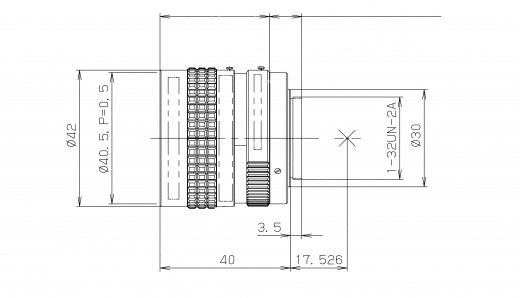

Dimensions	φ42x40 mm
Weight	87 g
Remarks	Focus & Iris lock screws
