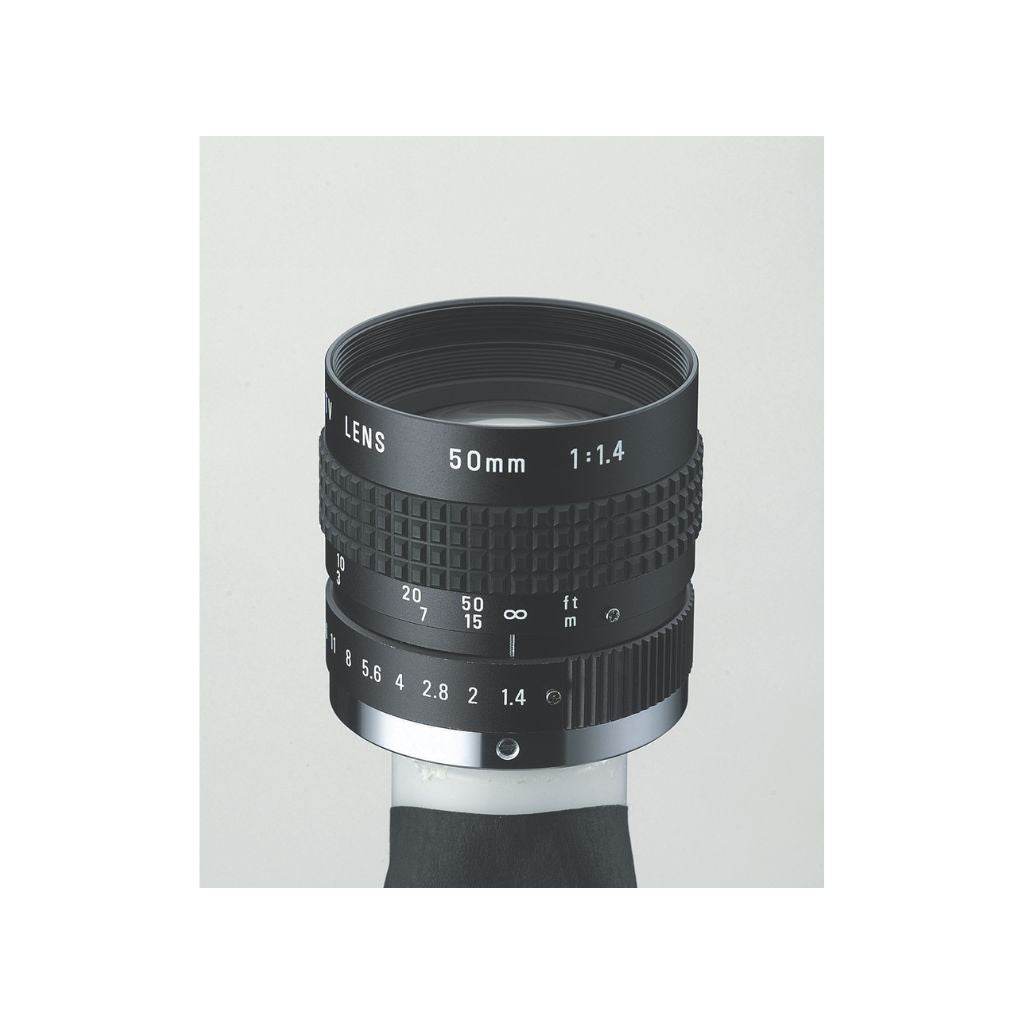

RICOH FL-BC5014A-VG VGA Manual Iris Lens
RICOH FL-BC5014A-VG VGA Manual Iris Lens
SKU:FL-BC5014A-VG
Couldn't load pickup availability
FL-BC5014A-VG Lens by RICOH: Superior Imaging for Industrial Applications
When it comes to high-precision imaging in industrial environments, the RICOH FL-BC5014A-VG (C25011KP) lens sets the standard. Engineered to deliver outstanding clarity and detail, this manual iris lens is ideal for applications such as quality control, machine vision, and industrial inspection.
The FL-BC5014A-VG lens features a 50mm focal length and an impressive maximum aperture of 1:1.4, ensuring exceptional image quality even in low-light or challenging conditions. With its C-mount compatibility, this versatile lens integrates seamlessly with a wide range of industrial cameras, providing flexibility across various applications.
Designed for ease of use, the FL-BC5014A-VG is compact and lightweight, making it simple to install in any setup. Its durable construction, combined with focus and iris lock screws, ensures stable and reliable performance over extended use. These features make it an excellent choice for demanding environments where precision and durability are paramount.
Available through USA Security Systems Inc., the RICOH FL-BC5014A-VG lens elevates industrial imaging solutions, supporting advanced automation, security systems, and more. Enhance your industrial imaging setup with this high-performance lens, designed to meet the rigorous demands of modern machine vision applications.
Format size | 1, 2/3, 1/2, 1/3" format |
Focal length | 50 mm |
Maximum aperture ratio | 1:1.4 |
Iris range | 1.4-Close |
Mount | C |
Horizontal Angle of View - 1/4" format | 4.1° |
Horizontal Angle of View - 1/3" format | 5.5° |
Horizontal Angle of View - 1/2" format | 7.3° |
Horizontal Angle of View - 2/3" format | 10.0° |
Horizontal Angle of View - 1" format | 14.4° |
Minimum object distance | 1.0 m |
Back focal length | 18.05 mm |
Filter size | 46 P=0.75 mm |

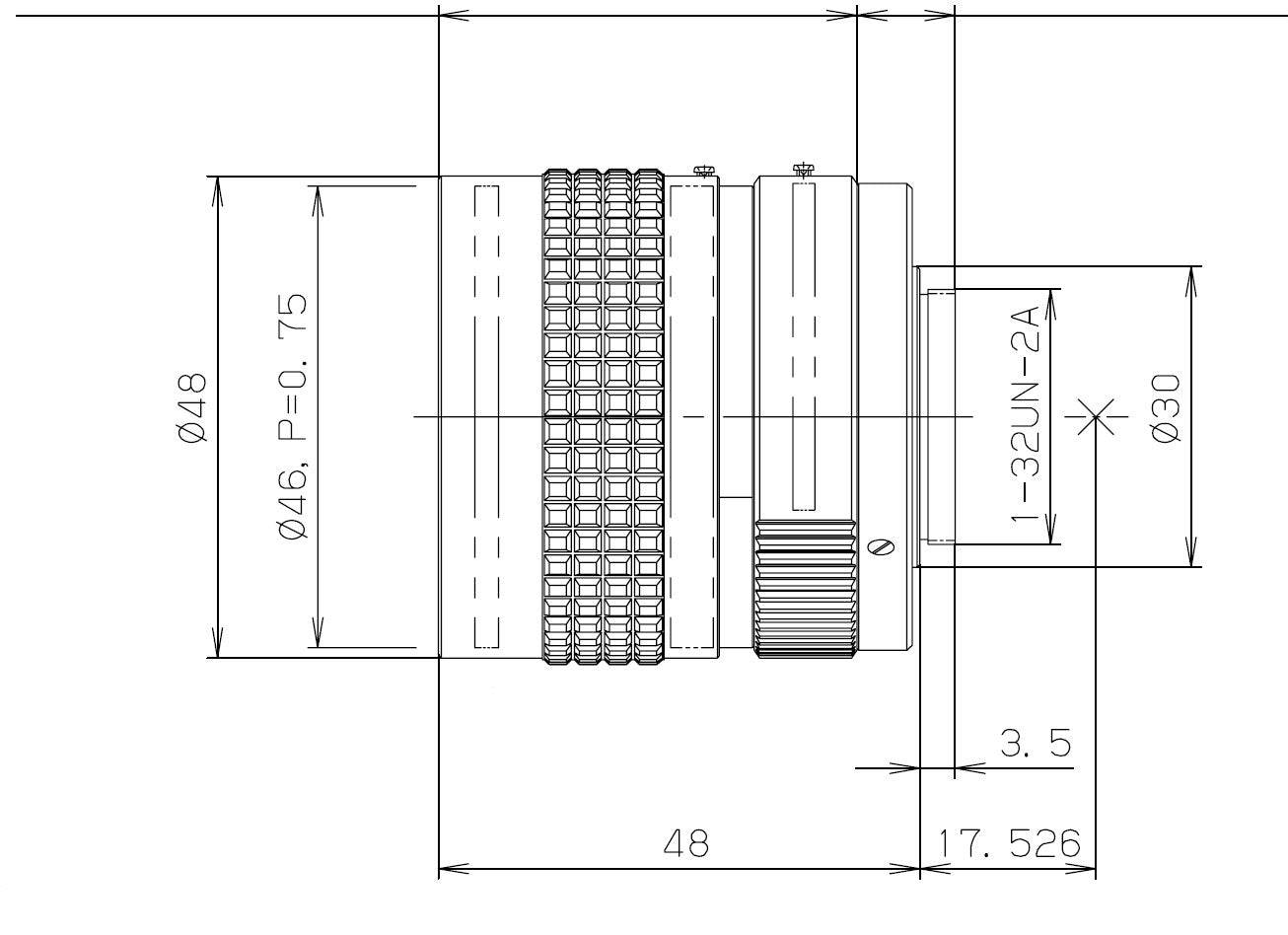

Dimensions | φ48x48 mm |
Weight | 180 g |
Remarks | Focus & Iris lock screws |
