USA Security Systems

FLCC0418DXVG

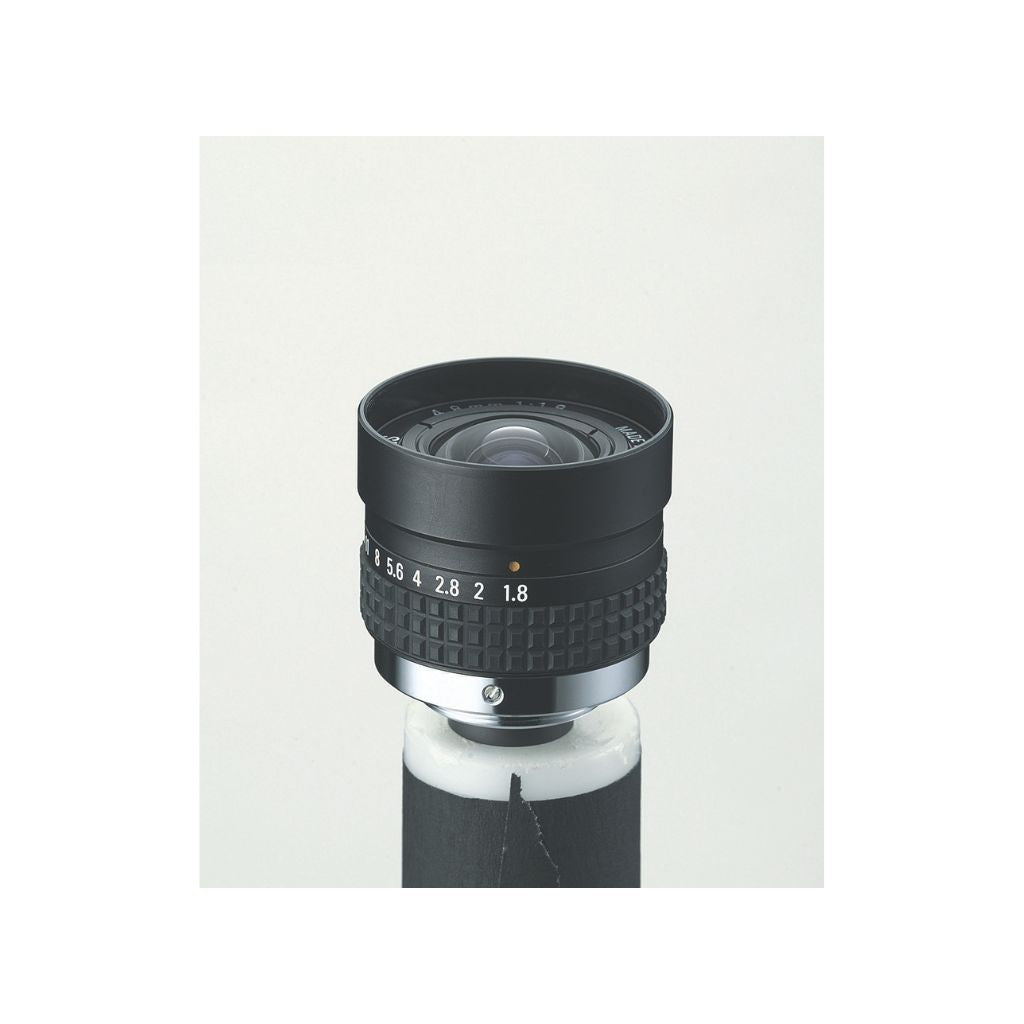

RICOH FL-CC0418DX-VG 2/3" 4.8mm VGA Manual Iris Lens

RICOH FL-CC0418DX-VG 2/3" 4.8mm VGA Manual Iris Lens

SKU:FL-CC0418DX-VG

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

FL-CC0418DX-VG Manual Iris Lens: Unmatched Precision for Machine Vision

The RICOH FL-CC0418DX-VG Manual Iris Lens is engineered to provide exceptional precision and clarity for machine vision and industrial applications. With a 4.8mm focal length and a bright maximum aperture of 1:1.8, this lens ensures high-quality imaging in diverse lighting conditions. It is compatible with a range of sensor formats, including 2/3", 1/2", 1/3", and 1/1.8", offering versatile integration into various machine vision systems.

Designed for demanding environments, the FL-CC0418DX-VG features a robust manual iris that allows precise control over the aperture, ensuring optimal light management. The lens's iris lock screws and fixed focus mechanism guarantee stability, making it a reliable choice for industrial automation, quality control, and inspection tasks.

Whether used for defect detection, object recognition, or monitoring production lines, the FL-CC0418DX-VG lens provides consistent, high-accuracy results. Its compact and lightweight design makes it easy to install, even in space-constrained settings, enhancing the efficiency of your vision systems.

Enhance your machine vision capabilities with the RICOH FL-CC0418DX-VG Manual Iris Lens. Unlock superior imaging performance for your industrial applications. Order the FL-CC0418DX-VG today for unmatched precision and reliability!

Download Data Sheet

Format size 2/3, 1/2, 1/3" format
Focal length 4.8 mm
Maximum aperture ratio 1:1.8
Iris range 1.8-Close
Mount C
Horizontal Angle of View - 1/4" format 41.7°
Horizontal Angle of View - 1/3" format 55.1°
Horizontal Angle of View - 1/2" format 72.4°
Horizontal Angle of View - 2/3" format 96.4°
Minimum object distance 0.3 m
Back focal length 9.71 mm

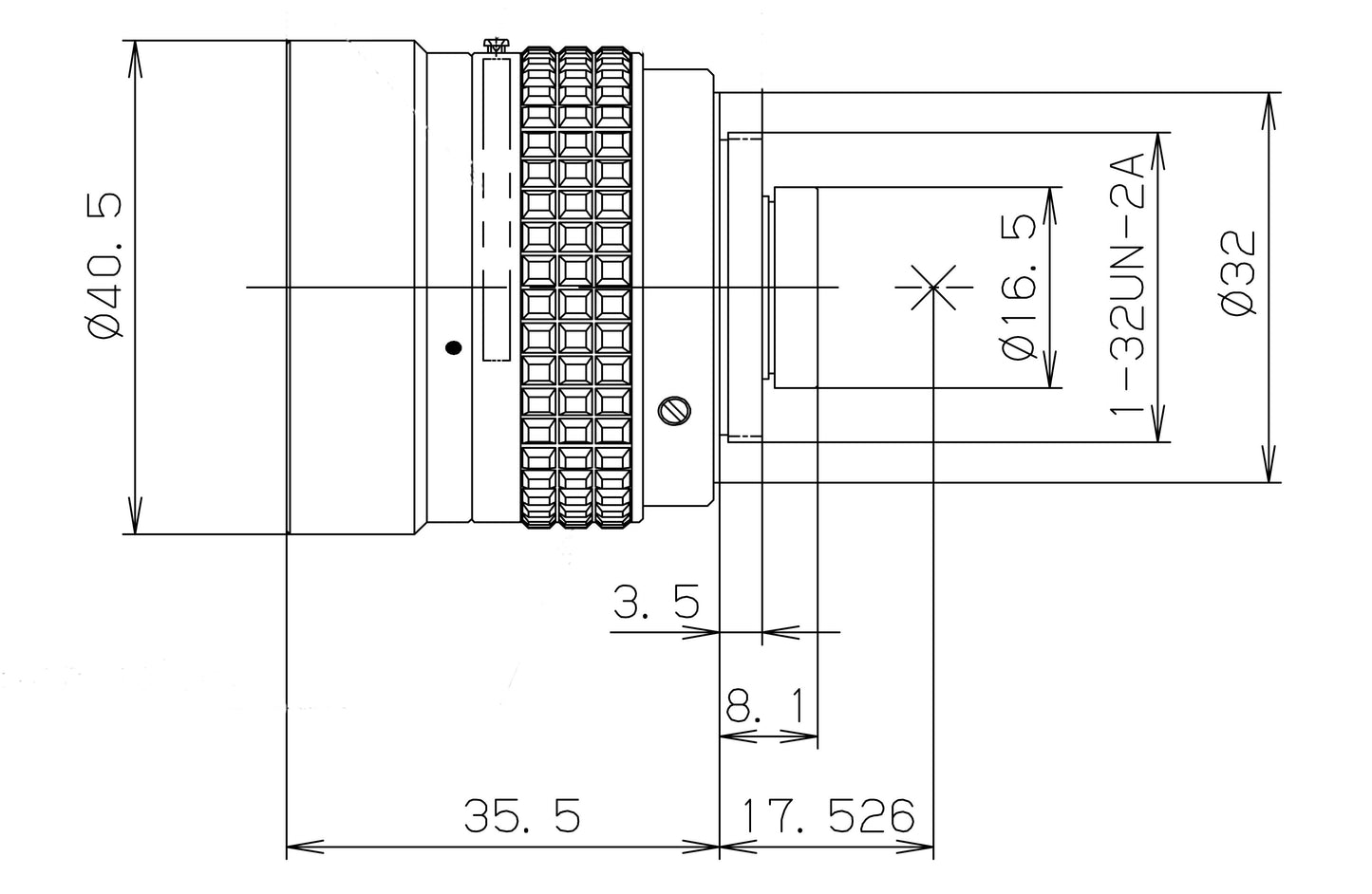

Dimensions φ40.5x35.5 mm
Weight 105 g
Remarks Iris lock screws, Fixed focus
