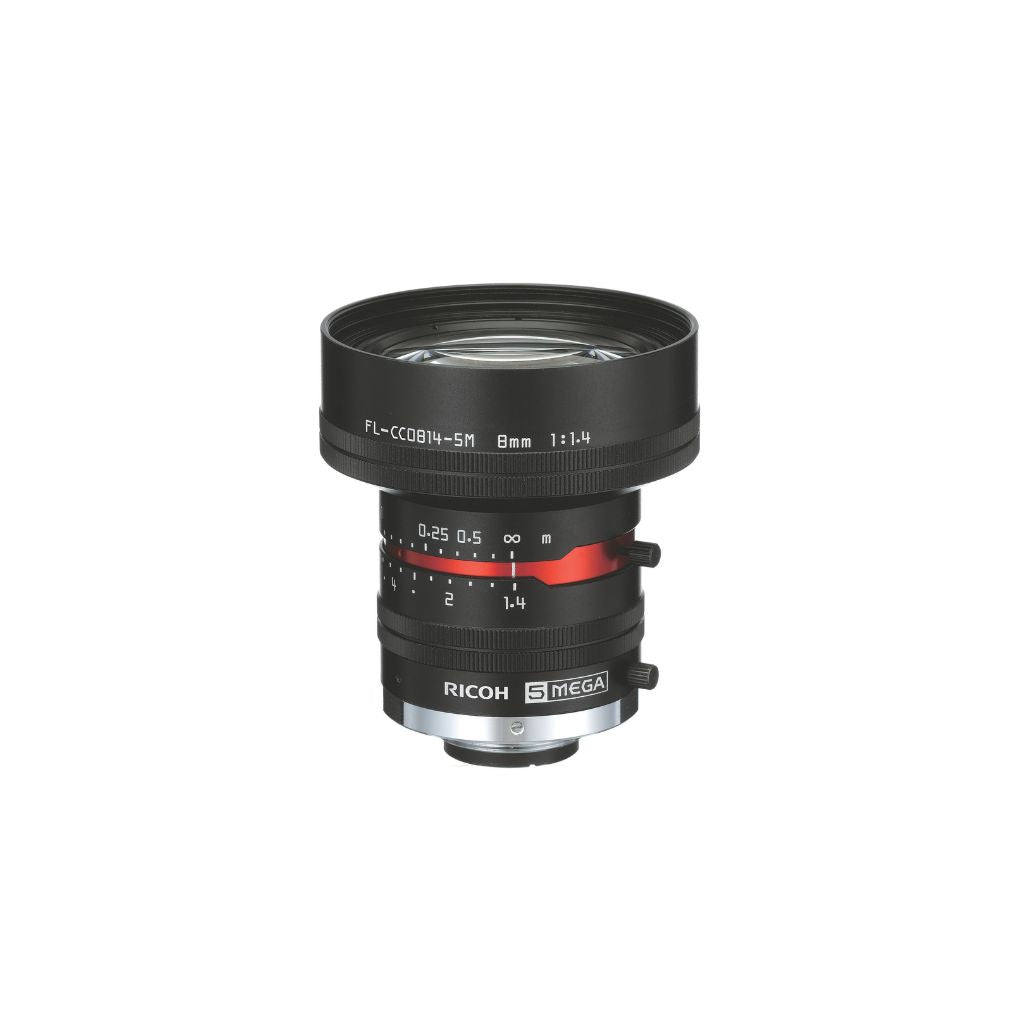

RICOH FL-CC0814-5M 2/3" 5MP 8 mm Manual Iris Lens
RICOH FL-CC0814-5M 2/3" 5MP 8 mm Manual Iris Lens
SKU:FL-CC0814-5M
Couldn't load pickup availability
Elevate Your Imaging with the RICOH FL-CC0814-5M Lens
Discover superior imaging performance with the RICOH FL-CC0814-5M lens, engineered for precision in industrial and machine vision applications. Renowned for its high-quality optics, RICOH's FL-CC0814-5M lens offers exceptional clarity and reliability. Featuring a 2/3" sensor format and an 8mm focal length, it comes with a manual iris for precise control, making it ideal for diverse industrial settings.
This lens is designed to deliver high resolution and outstanding contrast while minimizing optical distortion. Its edge-to-edge sharpness is crucial for detailed inspection tasks, from wafer analysis to chip mounting and circuit board assembly. The RICOH FL-CC0814-5M ensures bright, clear peripheries and precise imaging, enhancing the accuracy of your quality control processes.
With its compact design and exceptional optical performance, the FL-CC0814-5M lens is a valuable asset for any machine vision system. Upgrade your imaging capabilities with the RICOH FL-CC0814-5M and achieve unparalleled visual precision and dependability.
Optimize your vision system with the RICOH FL-CC0814-5M today and experience unmatched imaging excellence!
| Format Size | 2/3, 1/1.8, 1/2, 1/3" format |
| Focal Length | 8mm |
| Maximum Aperture Ratio | 1:1.4 |
| Iris Range | 1.4～16 |
| Mount | C |
| Horizontal Angle Of View | 1/3” Format 32.4° 1/2” Format 42.5° 1/1.8” Format 47.3° 2/3” Format 56.3° |
| Minimum Object Distance | 0.1 m |
| Back Focal Length | 13.1 mm |
| Filter Size | 30.5 P=0.5 mm |

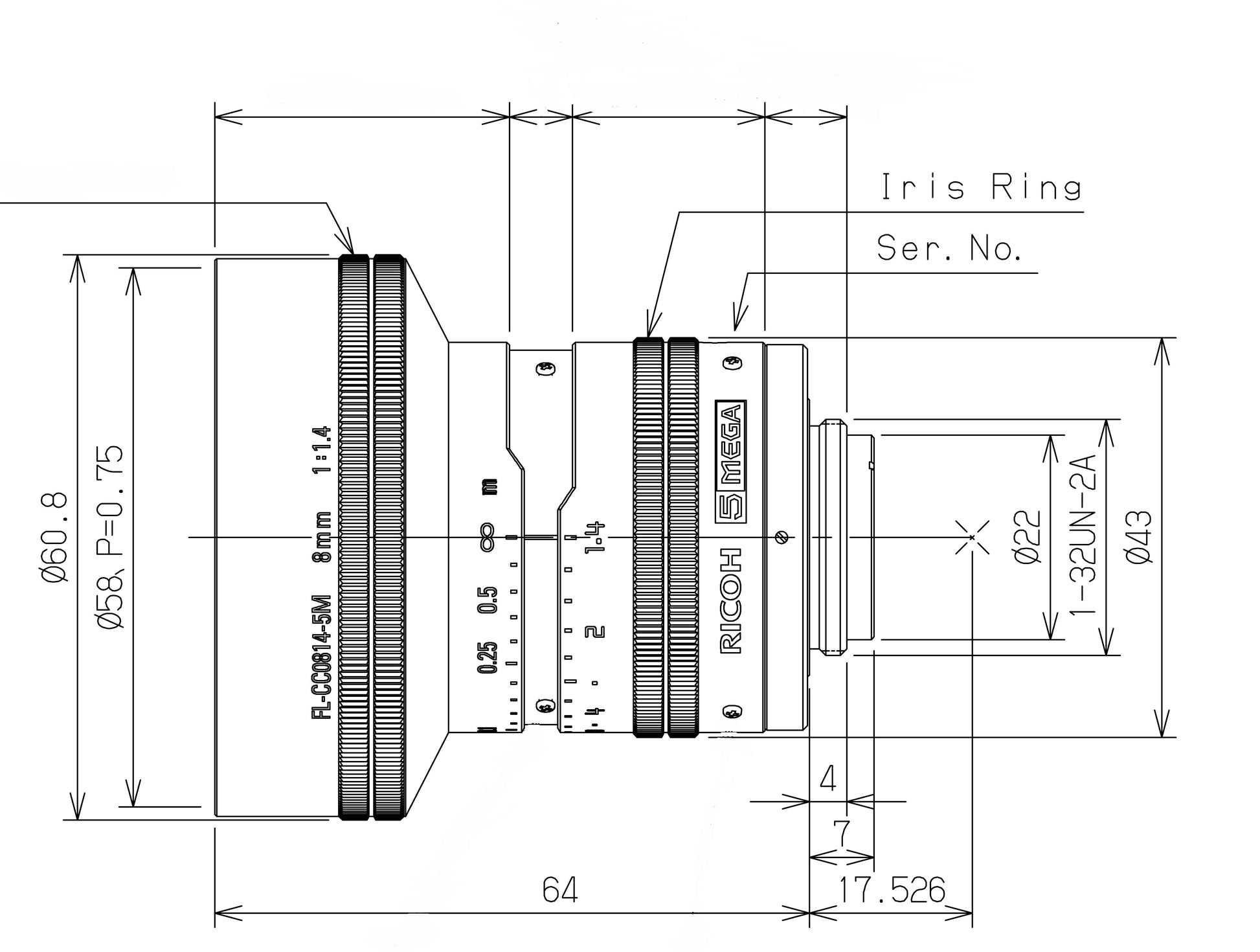

| Dimensions | 48×59.9 mm |
| Weight | 149g |
| Remarks | Focus & Iris lock screws |
