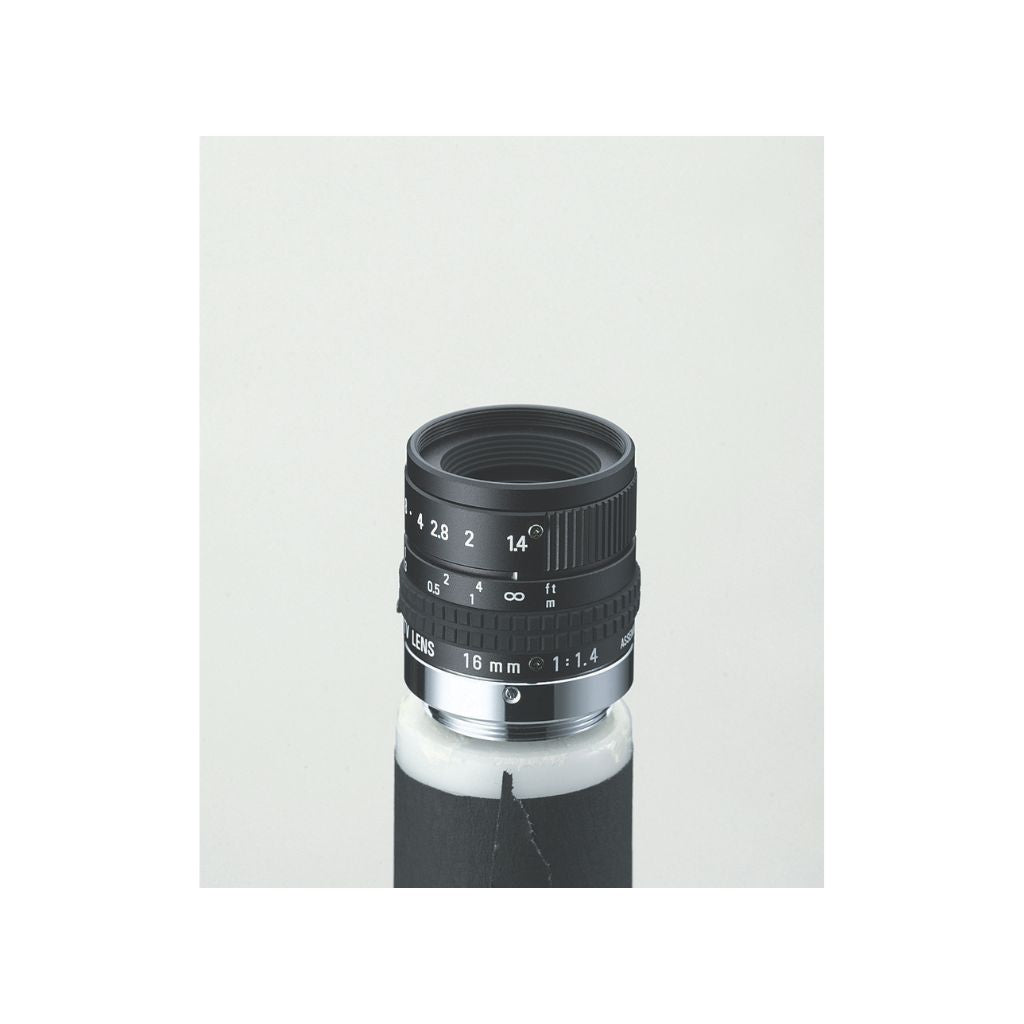

RICOH FL-CC1614A-VG 2/3" 16mm VGA Manual Iris Lens
RICOH FL-CC1614A-VG 2/3" 16mm VGA Manual Iris Lens
SKU:FL-CC1614A-VG
Couldn't load pickup availability
Unlock Precision Vision with RICOH FL-CC1614A-VG 16mm VGA Manual Iris Lens
RICOH, a renowned name in imaging technology, brings you the FL-CC1614A-VG 2/3" 16mm VGA Manual Iris Lens, designed for industrial and machine vision applications. Crafted with precision optics, this lens offers exceptional image quality and clarity, ensuring accurate inspection and analysis in various industrial environments. Its versatile focal length and high aperture ratio of 1:1.4 make it ideal for capturing detailed images across different format sizes, from 2/3" to 1/3".
Whether it's quality control, automation, or surveillance, this lens delivers optimal performance, thanks to its precise engineering and advanced features like focus and iris lock screws. Its compact design and lightweight build enhance flexibility in installation, while the C-mount compatibility ensures easy integration with a wide range of machine vision systems.
| Format size | 2/3, 1/2, 1/3" format |
| Focal length | 16 mm |
| Maximum aperture ratio | 1:1.4 |
| Iris range | 1.4-22 |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 12.7° |
| Horizontal Angle of View - 1/3" format | 16.9° |
| Horizontal Angle of View - 1/2" format | 22.5° |
| Horizontal Angle of View - 2/3" format | 30.7° |
| Minimum object distance | 0.3 m |
| Back focal length | 13.22 mm |
| Filter size | 27 P=0.5 mm |

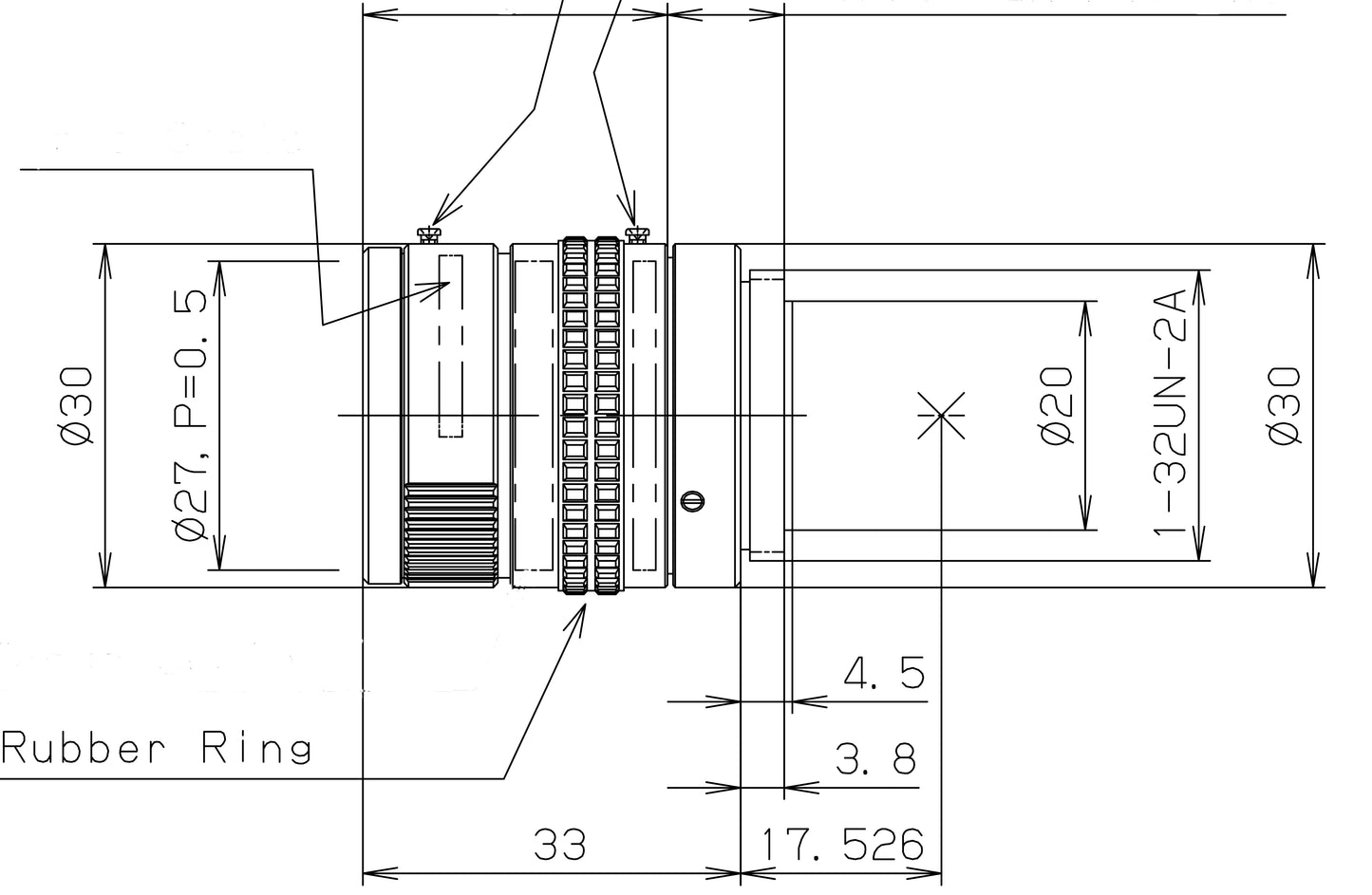

| Dimensions | φ30x33 mm |
| Weight | 58 g |
| Remarks | Focus & Iris lock screws |
