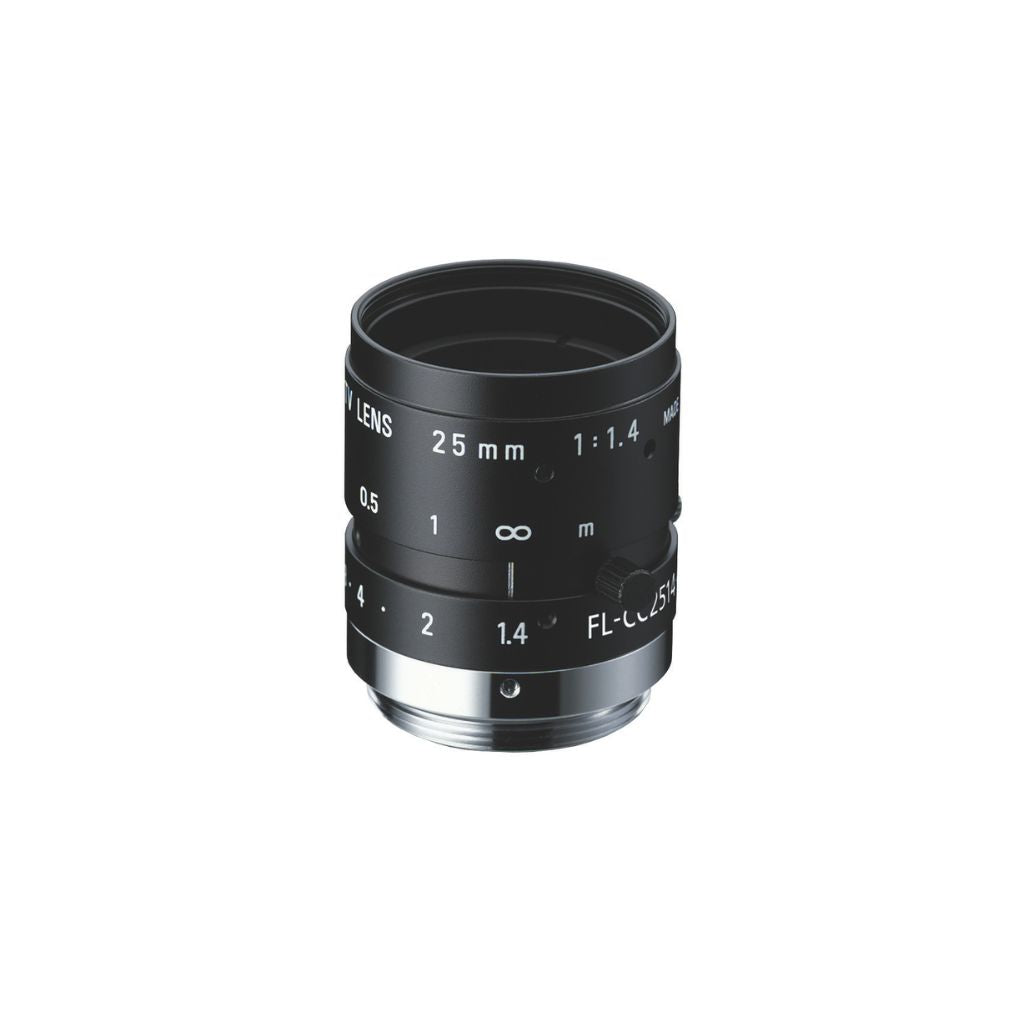

RICOH FL-CC2514-2M – Industrial Machine Vision Lens | 2/3" 2MP 25mm Manual Iris

*Please note tariff fee is included in price*

SKU focus: FL-CC2514-2M (RICOH industrial machine vision lens) — sold by USA Security Systems.

Why choose the RICOH FL-CC2514-2M?

• Focal length: 25mm
• Image format: 2/3" sensor coverage
• Resolution support: up to 2MP
• Iris: Manual Iris
• Brand: RICOH industrial machine vision lens

Best-fit applications

• Automated optical inspection (AOI) and quality control
• Factory automation, robotics guidance, pick-and-place
• Measurement/metrology, barcode/label reading, sorting
• Edge detection and defect inspection in controlled lighting

Search terms this page targets

FL-CC2514-2M, “RICOH FL-CC2514-2M lens”, “25mm 2/3" machine vision lens”.

Enhance Your Industrial Imaging with Ricoh FL-CC2514-2M

Unlock exceptional imaging performance with the Ricoh FL-CC2514-2M, a state-of-the-art manual iris lens designed to excel in industrial and machine vision applications. Engineered with precision in mind, the FL-CC2514-2M lens delivers superior optical quality, making it an ideal choice for tasks such as inspecting manufactured goods, overseeing production lines, and performing rigorous quality control evaluations. This lens boasts a 25mm focal length and supports 2MP resolution, specifically optimized for 2/3" sensors, ensuring crisp and detailed image capture.

The Ricoh FL-CC2514-2M stands out for its ability to provide unparalleled clarity and reliability in demanding environments. Its manual iris feature allows for fine-tuned control over light exposure, enhancing image accuracy and consistency. Whether used in automated inspection systems, surveillance applications, or any setting requiring high-resolution imaging, this lens ensures that every detail is captured with precision. The robust construction of the FL-CC2514-2M is designed to withstand the rigors of industrial use, offering long-lasting performance and minimal maintenance.

Upgrade your imaging capabilities with the Ricoh FL-CC2514-2M and experience a new level of efficiency and accuracy in your machine vision systems. Trust this lens to deliver sharp, reliable insights for all your industrial imaging needs.

Experience superior precision and performance with the Ricoh FL-CC2514-2M lens. Transform your machine vision capabilities and achieve unparalleled clarity in every application. Upgrade now to see the difference!

Format Size	2/3, 1/1.8, 1/2, 1/3" format
Focal Length	25 mm
Maximum aperture ratio	1：1.4
Iris Range	1.4～16
Mount	C
Horizontal Angle of View 1/3" Format	11.0°
Horizontal Angle of View 1/2" Format	14.6°
Horizontal Angle of View 1 1/8" Format	16.4°
Horizontal Angle of View 2/3" Format	20.0°
Min. Object Distance	0.25 m
Back Focal Length	11.50 mm
Filter Size	27 P=0.5 mm

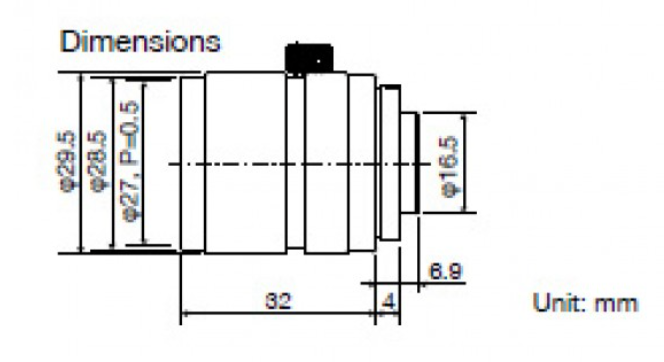

Dimensions	φ29.5×32 mm
Weight	55 g
Comments	Focus & Iris lock screws
