USA Security Systems

FLCC25145M

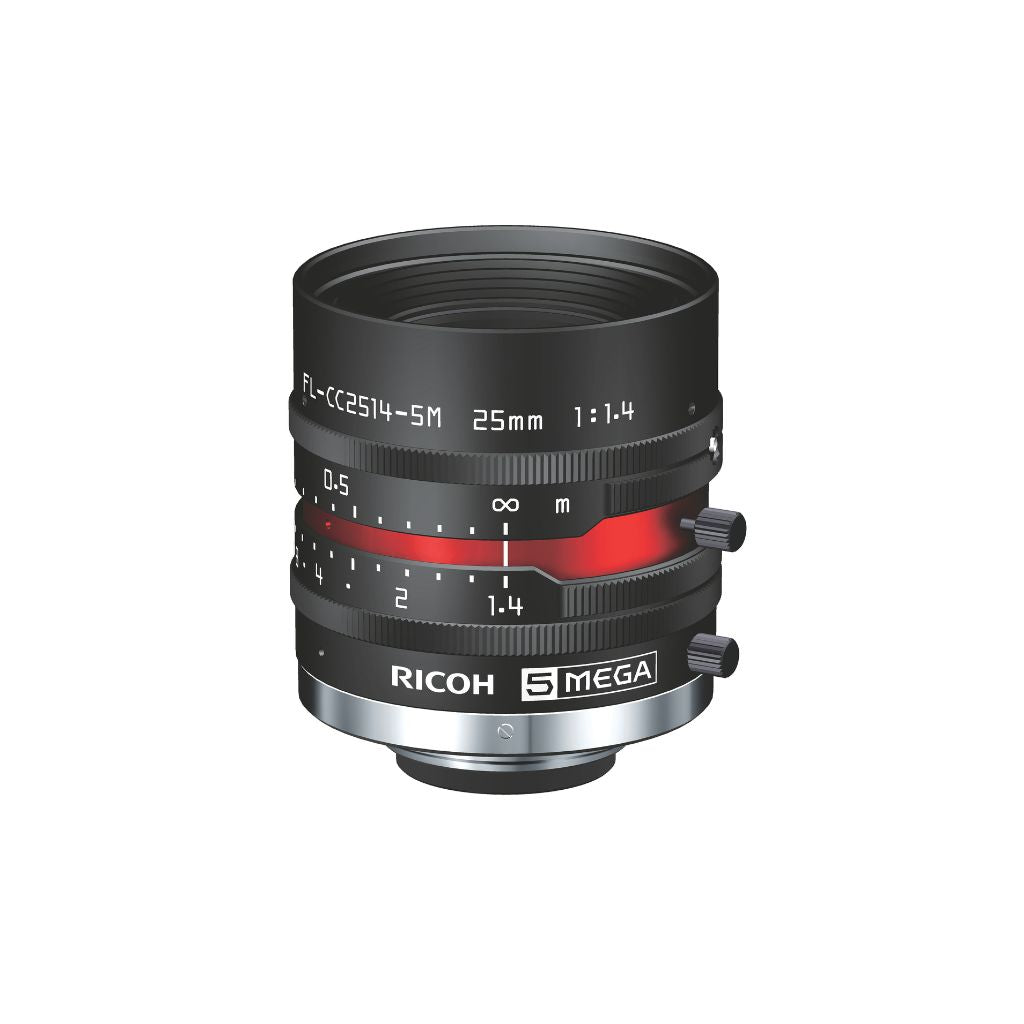

RICOH FL-CC2514-5M 2/3" 5MP 25mm Manual Iris Lens

RICOH FL-CC2514-5M 2/3" 5MP 25mm Manual Iris Lens

SKU:FL-CC2514-5M

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover the Power of the RICOH FL-CC2514-5M FA Lens: Transforming Industrial Imaging

Elevate your industrial imaging capabilities with the RICOH FL-CC2514-5M (C32501KP) Manual Iris Lens, a state-of-the-art solution designed to meet the exacting demands of modern machine vision applications. Engineered with precision and innovation, the FL-CC2514-5M is specifically crafted for use with 5-megapixel cameras, offering exceptional image quality and performance that sets a new standard in the industry.

The RICOH FL-CC2514-5M lens is a game-changer in industrial imaging, delivering high resolution and high contrast for the most detailed and accurate image capture. Its advanced optical design minimizes distortion, ensuring that every frame is rendered with the utmost clarity and accuracy. This makes it an indispensable tool for applications where precision is paramount, such as semiconductor inspection, electronic component manufacturing, and automated quality control systems.

One of the standout features of the FL-CC2514-5M is its compact Φ43 mm design, which allows for easy integration into various industrial setups without sacrificing performance. The lens's brightness, which extends uniformly to the periphery, ensures consistent image quality across the entire frame, making it ideal for detailed inspections and complex imaging tasks.

Whether you're inspecting tiny components, performing detailed quality checks, or capturing high-resolution images in challenging industrial environments, the RICOH FL-CC2514-5M FA Lens delivers the reliability and performance you need. Its robust construction and low optical distortion make it a long-term investment in the future of your industrial imaging capabilities.

Download Data Sheet

Format Size 2/3, 1/1.8, 1/2, 1/3" format
Focal Length 25mm
Minimum Aperture Ratio 1:1.4
Iris Range 1.4~16
Mount C
Horizontal Angle Of View 1/3” Format 11.0°
Horizontal Angle Of View 1/2” Format 14.6°
Horizontal Angle Of View 1/1.8” Format 16.4°
Horizontal Angle Of View 2/3” Format 19.9°
Minimum Object Distance 0.1m
Back Focal Length 12.3mm
Filter Size 40.5 P=0.5mm

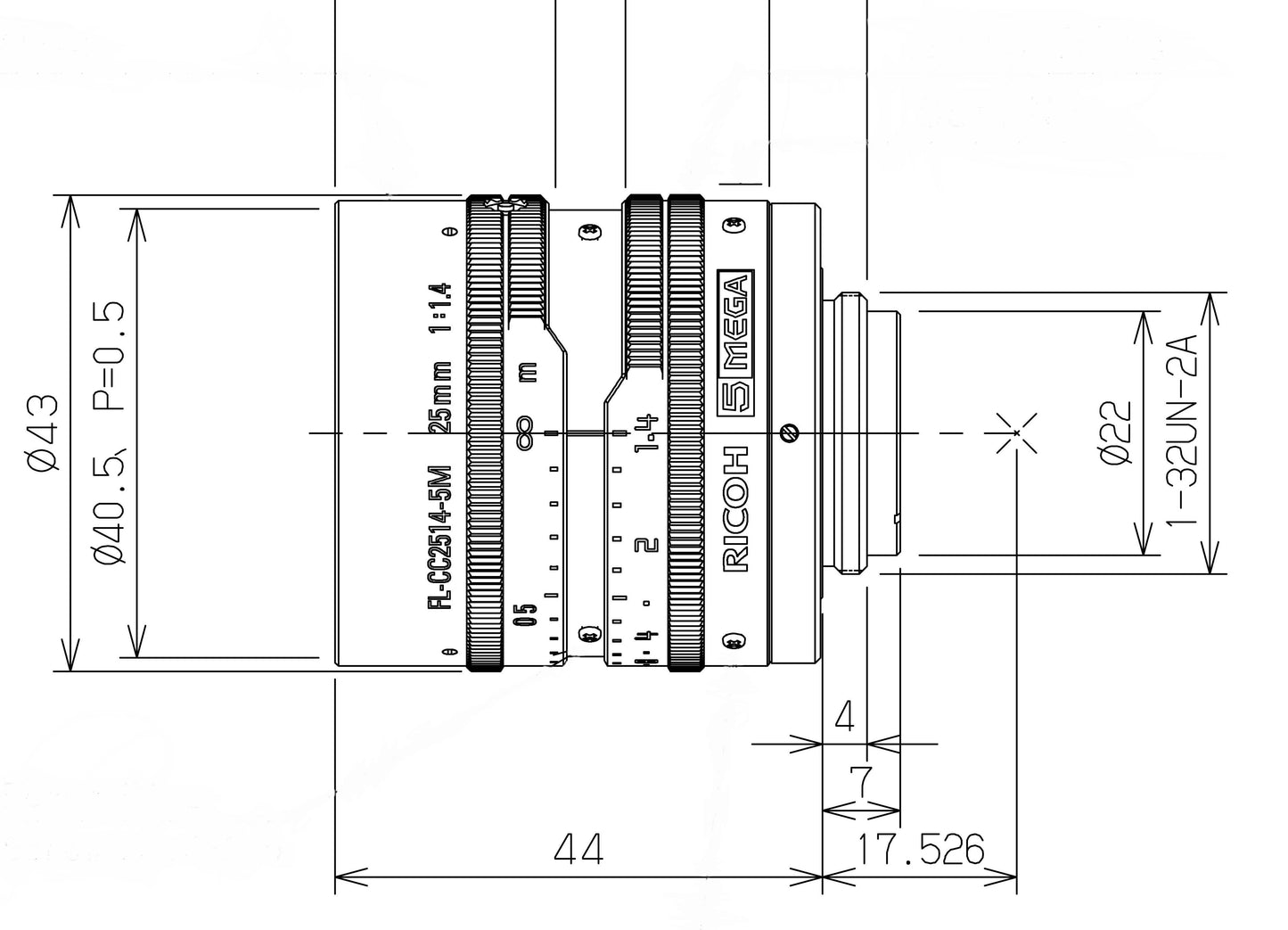

Dimensions φ43mmx44mm
Weight 130g
Remarks Focus & Iris lock screws
