RICOH FL-CC2518-5MX 5MP 25mm FA Camera Lens
RICOH FL-CC2518-5MX 5MP 25mm FA Camera Lens
SKU:FL-CC2518-5MX
Optimize Your Machine Vision with the RICOH FL-CC2518-5MX 5MP 25mm FA Camera Lens
The RICOH FL-CC2518-5MX 5MP 25mm FA Camera Lens is a game-changer in the world of industrial and machine vision applications. Specifically designed for 2/3" format cameras, this lens delivers exceptional image quality with a high-resolution 5 Megapixel sensor. Its compact 25mm focal length makes it an ideal choice for systems where space is limited but precision is paramount. Engineered with advanced optics, the FL-CC2518-5MX minimizes distortion and ensures that images remain bright and clear all the way to the edges, making it perfect for detailed inspections that require absolute accuracy.
This lens stands out not only for its optical performance but also for its durability. Built to withstand the rigors of harsh industrial environments, the RICOH FL-CC2518-5MX offers reliable performance under challenging conditions. Whether you’re inspecting LCD monitors for pixel defects or identifying fine cracks in metal components, this lens provides the clarity and detail needed for critical applications. It’s also highly effective in the inspection of food and pharmaceuticals, ensuring that products meet stringent quality standards.
Enhance your machine vision system's capabilities with the RICOH FL-CC2518-5MX 5MP 25mm FA Camera Lens, and experience the difference that superior imaging technology can make in your industrial processes. This lens is the key to achieving unparalleled precision and quality in your visual inspection tasks.
Resolution | over 5 Mega-Pixel | |
Format size | 2/3" format | |
Focal length | 25mm | |
Maximum aperture ratio | 1:1.8 | |
Iris range | 1.8~16 | |
Mount | C | |
Horizontal angle of view |
1/3" format | 11.0° |
1/2" format | 14.6° | |
1/1.8" format | 16.4° | |
2/3" format | 20.0° | |
Minimum object distance | 0.1m | |
Back focal length | 13.6mm | |
Filter size | 30.5 P=0.5mm | |

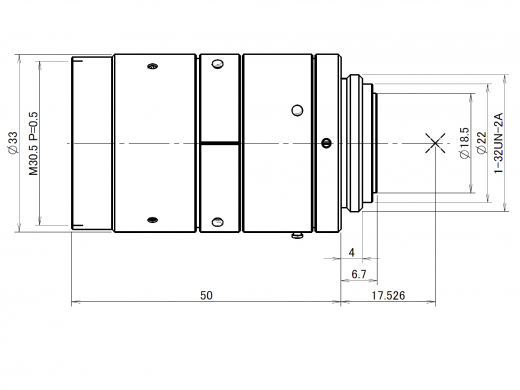

Dimensions | φ33×50mm | |
Weight | 68g | |
Remarks | Focus & Iris lock screw |
