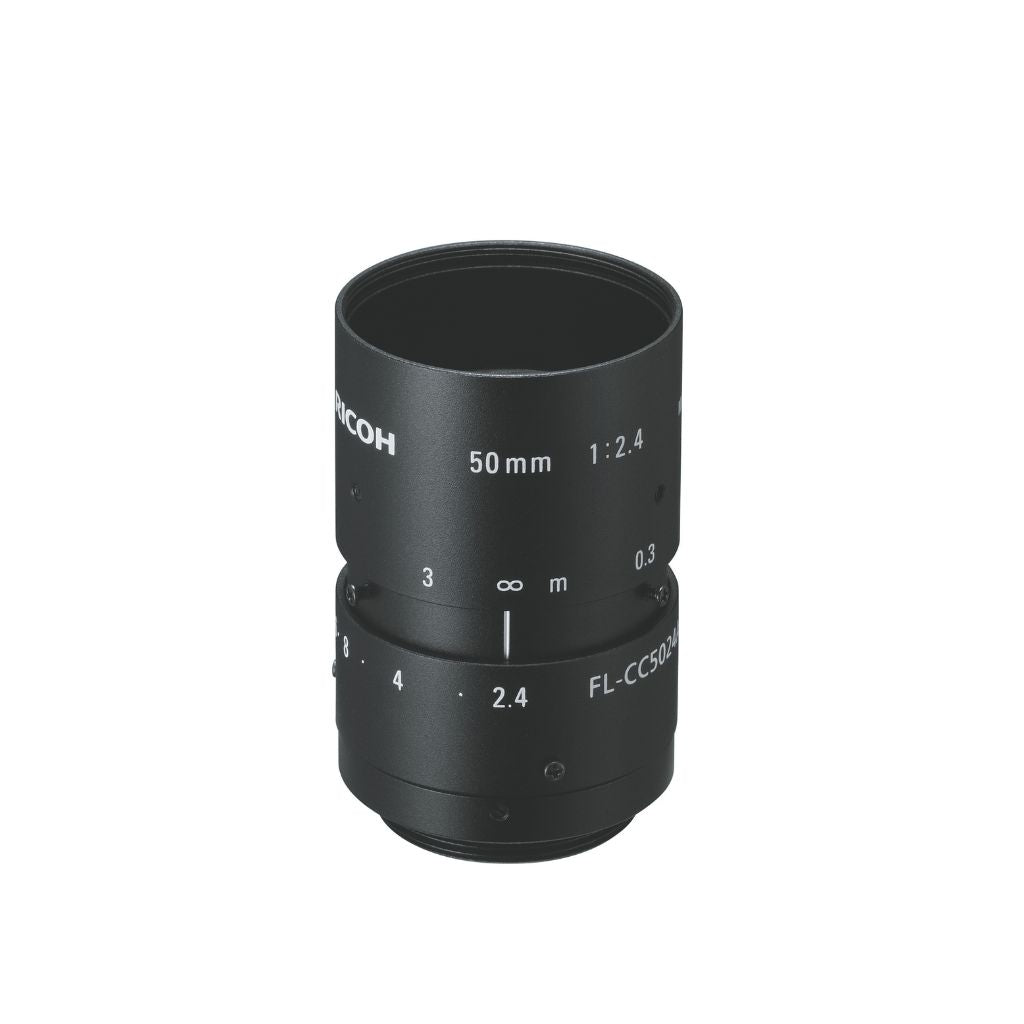

RICOH FL-CC5024A-2M – Industrial Machine Vision Lens | 2/3" 2MP 50mm Manual Iris

*Please note tariff fee is included in price*

SKU focus: FL-CC5024A-2M (RICOH industrial machine vision lens) — sold by USA Security Systems.

Why choose the RICOH FL-CC5024A-2M?

• Focal length: 50mm
• Image format: 2/3" sensor coverage
• Resolution support: up to 2MP
• Iris: Manual Iris
• Brand: RICOH industrial machine vision lens

Best-fit applications

• Automated optical inspection (AOI) and quality control
• Factory automation, robotics guidance, pick-and-place
• Measurement/metrology, barcode/label reading, sorting
• Edge detection and defect inspection in controlled lighting

Search terms this page targets

FL-CC5024A-2M, “RICOH FL-CC5024A-2M lens”, “50mm 2/3" machine vision lens”.

Discover Unmatched Precision with the RICOH FL-CC5024A-2M Manual Iris Lens

The RICOH FL-CC5024A-2M Manual Iris Lens exemplifies cutting-edge optical technology, designed for professionals demanding high precision and exceptional performance in industrial and machine vision applications. This lens is engineered to deliver superior imaging quality and reliability, making it a top choice for high-stakes manufacturing tasks.

Featuring a compact yet robust design, the FL-CC5024A-2M is tailored for integration with 2-megapixel CCD and CMOS sensors. It excels in producing sharp, high-resolution images with minimal distortion, ensuring that every detail is captured with utmost accuracy. The lens’s advanced optical construction minimizes resolution loss from the center to the edges, which is critical for precise inspection, quality control, and automation processes.

The manual iris feature of the RICOH FL-CC5024A-2M allows for meticulous control over light entry, adapting seamlessly to varying lighting conditions. This flexibility is vital for maintaining consistent image quality across diverse applications. Additionally, its lightweight and durable design, combined with reliable focus and iris locking mechanisms, ensures ease of integration and stability even in demanding environments.

In high-precision manufacturing and machine vision tasks where clarity and accuracy are paramount, the RICOH FL-CC5024A-2M Manual Iris Lens stands out as a key component, delivering unparalleled performance and reliability. Whether you're enhancing inspection systems or refining automated processes, this lens empowers you to achieve exceptional results with confidence.

Format Size	2/3"
Focal Length	50 mm
Maximum aperture ratio	1：2.4
Iris Range	2.4-22
Mount	C
Horizontal Angle of View 1/3" Format	5.6°
Horizontal Angle of View 1/2" Format	7.5°
Horizontal Angle of View 1 1/8" Format	8.4°
Horizontal Angle of View 2/3" Format	10.3°
Min. Object Distance	0.3 m
Back Focal Length	22.3 mm
Filter Size	30.5 P=0.5 mm

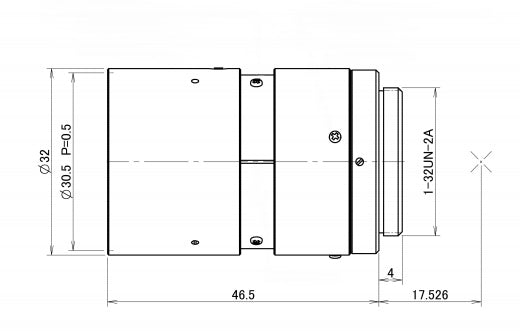

Dimensions	φ32.0×46.5 mm
Weight	66 g
Comments	Focus & Iris lock screws
