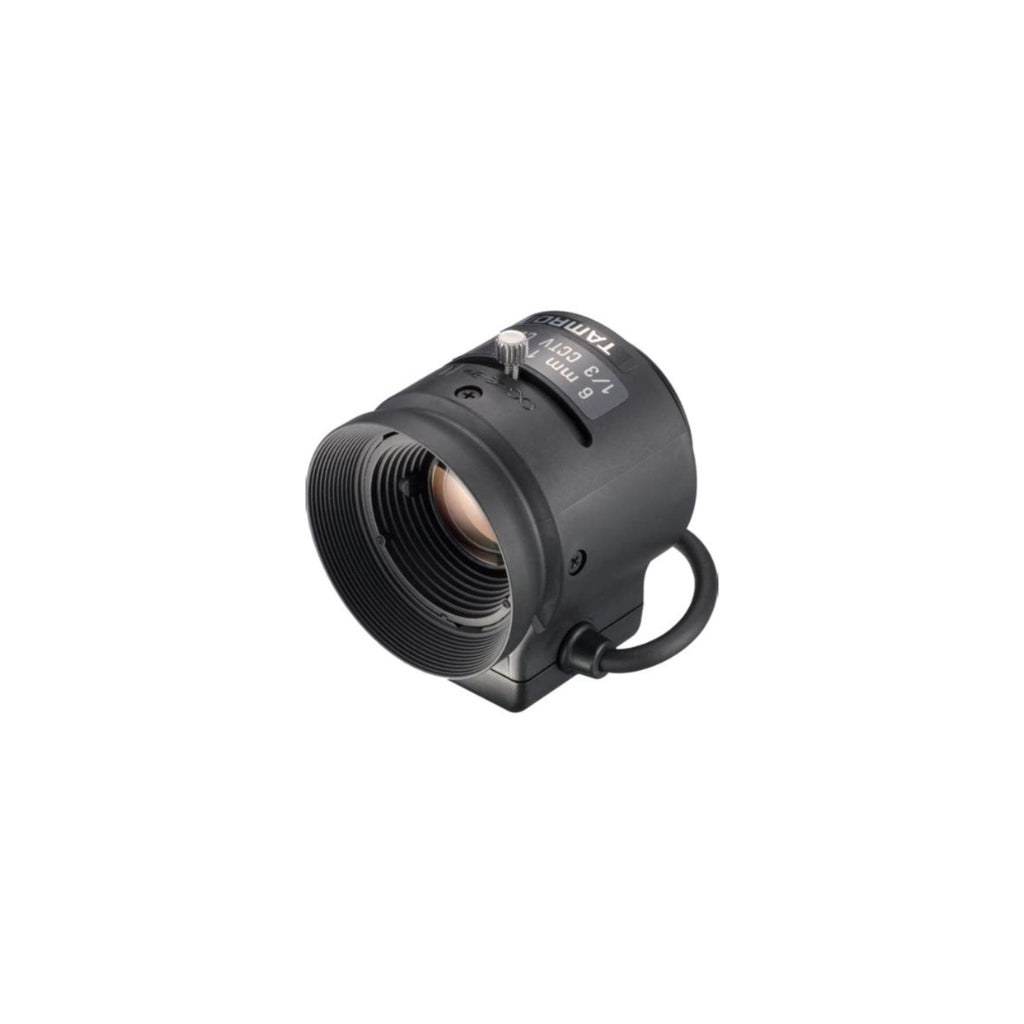

Tamron 13FG06IR-SQ 1/3" 6mm F/1.2 CS-Mount Auto-Iris Lens

Tamron 13FG06IR-SQ 1/3" 6mm F/1.2 CS-Mount Auto-Iris Lens

SKU:13FG06IR-SQ

Regular price $88.24 USD
Regular price Sale price $88.24 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Tamron 13FG06IR-SQ Lens: Enhancing Precision in Machine Vision

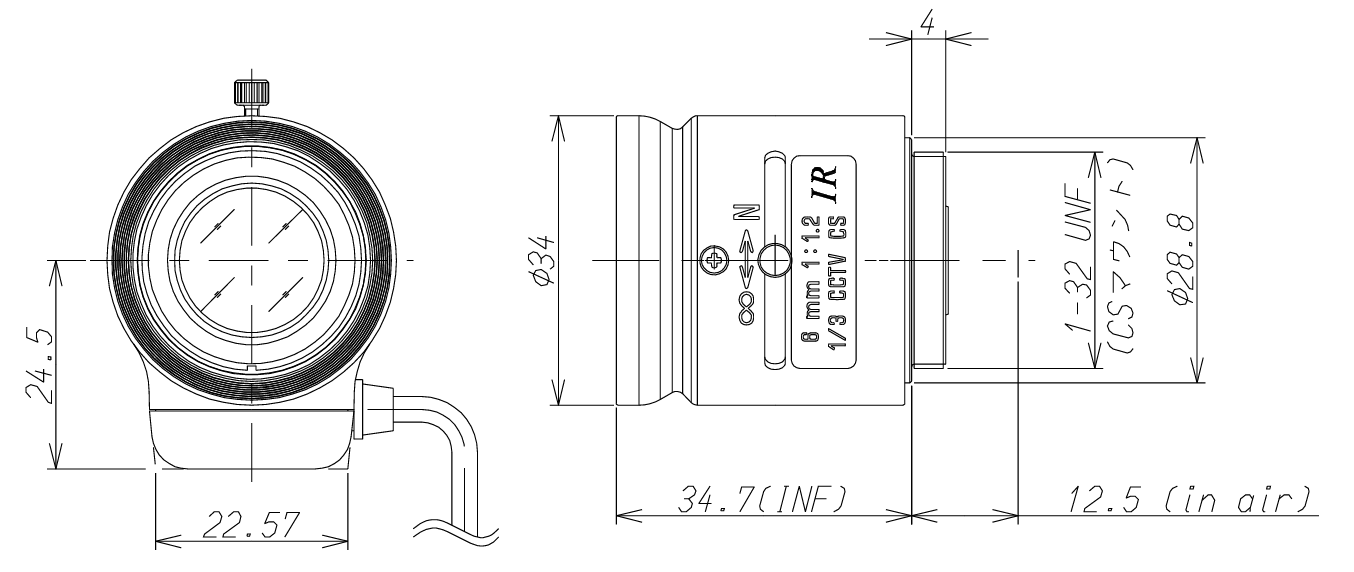

Product Spec Sheet

The Tamron 13FG06IR-SQ is a specialized 6mm F/1.2 CS-Mount Auto-Iris Lens designed to meet the rigorous demands of machine vision and industrial imaging applications. Known for its exceptional clarity and precision, this lens offers a wide aperture range from F/1.2 to 360, ensuring optimal performance in various lighting conditions. Its manual focus with lock and DC auto-iris capabilities provide flexibility and reliability, crucial for maintaining sharp focus and exposure control in dynamic environments.

Engineered with a robust build and weighing only 38g, the Tamron 13FG06IR-SQ is lightweight yet durable, making it ideal for integration into compact industrial systems. With an operating temperature range from -20°C to +60°C, it performs reliably in both extreme cold and heat. The lens supports 1/3" imagers and features a versatile field of view angle of 46.5° x 34.6°, suitable for detailed imaging tasks across various industrial sectors.

Features:

  • 6mm focal length with 1/3" imager size
  • F/1.2 - 360 aperture range
  • Manual focus with lock and DC auto iris
  • Lightweight design (38g) for easy integration
  • Wide operating temperature range (-20°C to +60°C)

Applications:

  • Machine vision systems
  • Industrial automation
  • Robotics
  • Quality control
  • Surveillance and security
