USA Security Systems

13FM22IR

Tamron 13FM22IR 1/3" IR 2.2mm F/1.2 Mono-Focal Lens

Tamron 13FM22IR 1/3" IR 2.2mm F/1.2 Mono-Focal Lens

SKU:13FM22IR

Regular price $51.76 USD
Regular price Sale price $51.76 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Tamron 13FM22IR 2.2mm F/1.2 Mono-Focal IR CS-Mount Lens for Industrial Vision

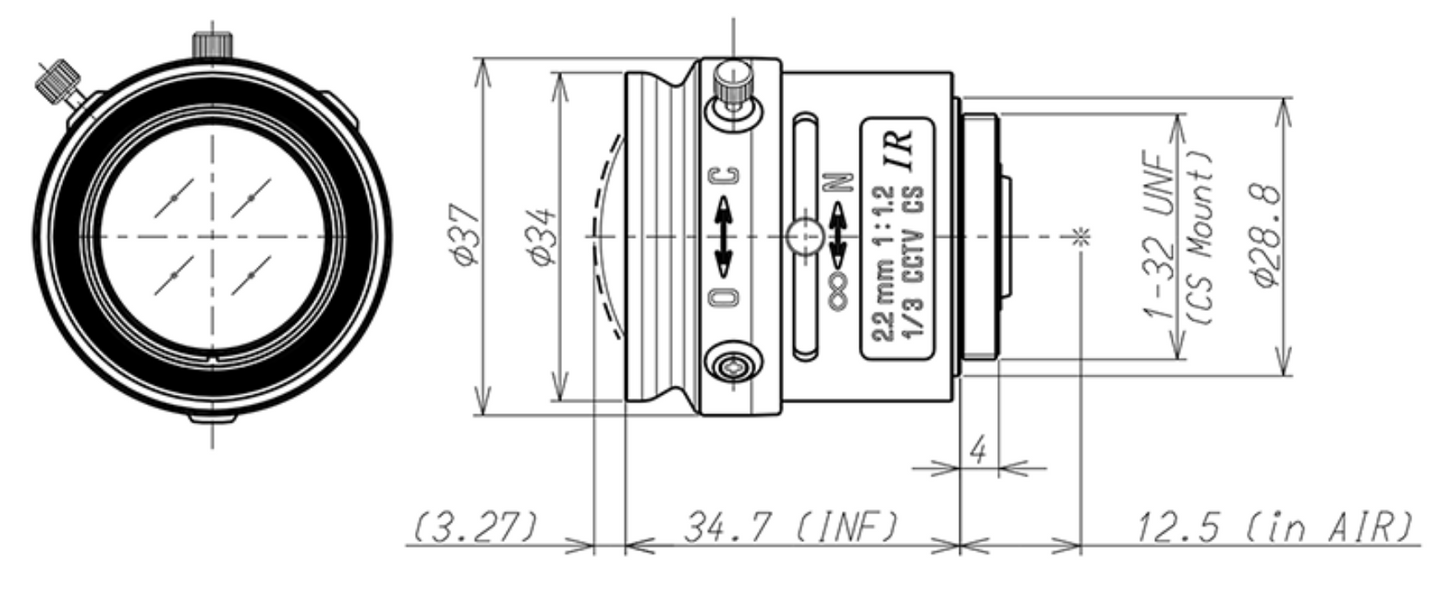

Product Spec Sheet

Introducing the Tamron 13FM22IR 2.2mm F/1.2 Mono-Focal IR Lens, designed for high-performance imaging in industrial and machine vision applications. This lens features a 2.2mm focal length with a fast F/1.2 aperture, optimized for capturing clear and detailed images in both visible and infrared spectra. With manual focus and iris controls including lock mechanisms, users can achieve precise adjustments for various imaging requirements.

Weighing just 41g and built to withstand temperatures from -20°C to +60°C, the Tamron 13FM22IR ensures reliability in demanding environments. It is ideal for integration into automated inspection systems, quality control processes, and surveillance setups where accurate imaging is critical. Whether deployed in manufacturing facilities, industrial automation environments, or security systems, this lens enhances operational efficiency and provides superior image quality.

Features:

  • CS-mount lens
  • 2.2mm focal length
  • Fast F/1.2 aperture
  • Manual focus with lock
  • Manual iris with lock
  • Lightweight design (41g)

Applications:

  • Industrial automation and robotics
  • Quality control inspection
  • Infrared imaging for heat detection
  • Surveillance and security systems
  • Precision imaging in varied lighting conditions
