TAMRON 13VG2812ASII-SQ – Industrial Lens | 1/3" 2.8–12mm Auto Iris

*Please note tariff fee is included in price*

SKU focus: 13VG2812ASII-SQ (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON 13VG2812ASII-SQ?

• Focal: 2.8–12mm
• Image format: 1/3" sensor coverage
• Iris: Auto Iris

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

13VG2812ASII-SQ, “TAMRON 13VG2812ASII-SQ lens”, and “2.8–12mm 1/3" lens”.

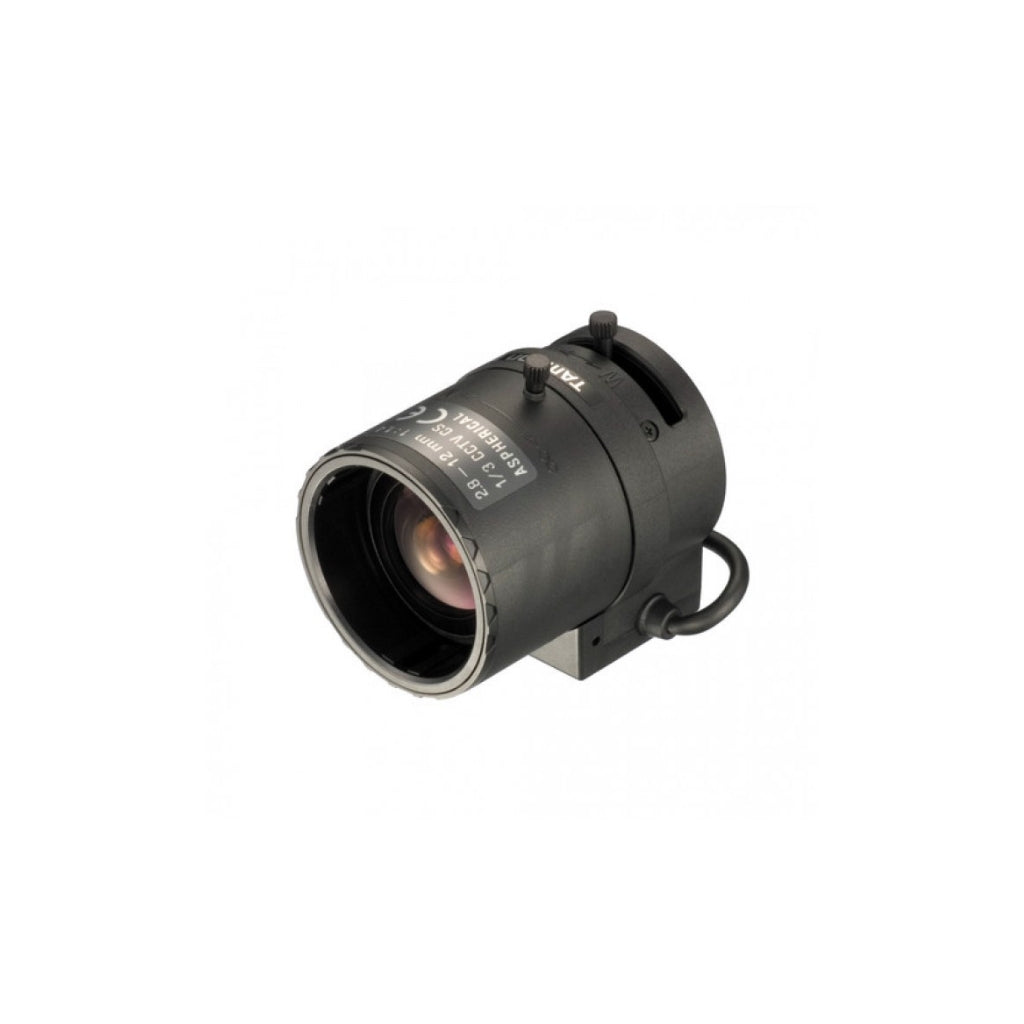

Discover the Tamron 13VG2812ASII-SQ Industrial Lens

Tamron is renowned for its precision optics, catering specifically to industrial and machine vision applications. The Tamron 13VG2812ASII-SQ exemplifies this expertise with its versatile 2.8-12mm focal length and fast f/1.4 aperture, ideal for capturing clear images across varying distances and lighting conditions. Designed with a CS mount and featuring DC Auto Iris, manual focus, and zoom with lock capabilities, this lens ensures precise image control and stability.

Engineered for reliability, the lens offers a wide field of view ranging from 97.4° to 24.1° horizontally, accommodating diverse monitoring needs. Its robust construction includes an operating temperature range from -20°C to +60°C, suitable for harsh industrial environments. Whether used in factory automation, quality control, or surveillance systems, the Tamron 13VG2812ASII-SQ enhances accuracy and efficiency in image capture and analysis.

Features:

• Versatile 2.8-12mm focal length
• Fast f/1.4 aperture
• CS mount compatibility
• DC Auto Iris for optimal light adjustment
• Manual focus and zoom with lock

Applications:

• Factory automation
• Vision inspection
• Quality control
• Surveillance systems

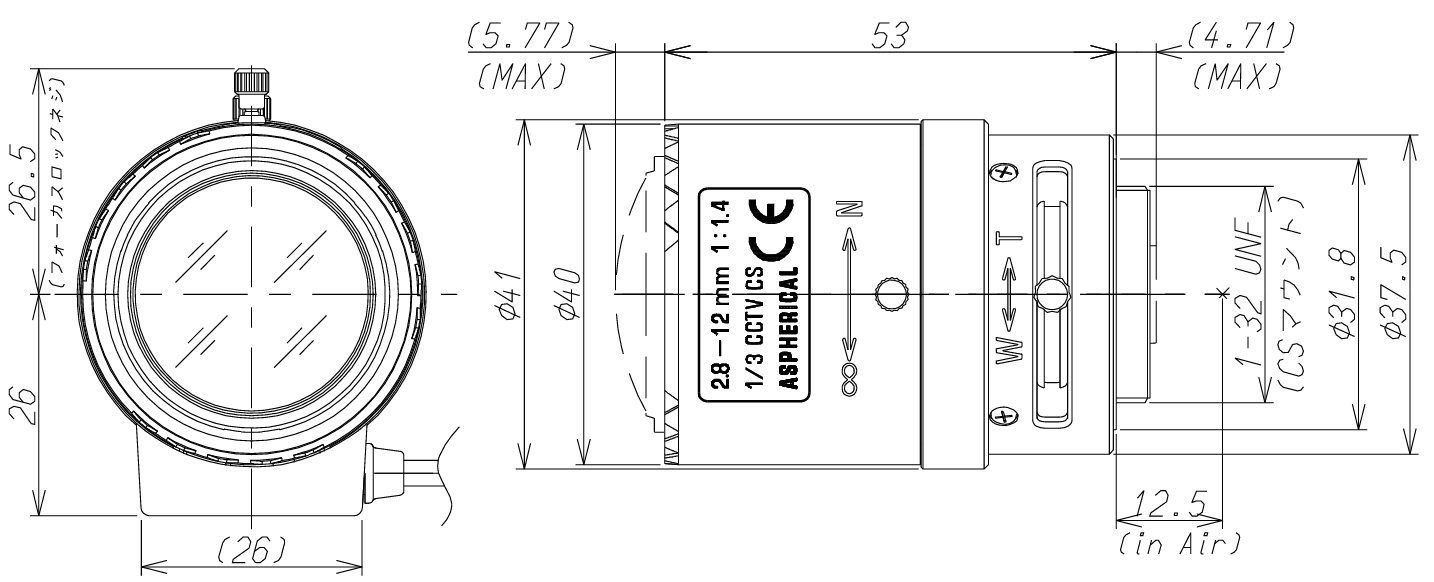

Imager Size	1/3
Mount Type	CS
Focal Length	2.8-12mm
Aperture Range	1.4 - 360
Field of View Angle (1/3)	Wide: 97.4° x 72.5°, Tele: 24.1° x 18.1°
Focusing Range	0.3m - INF
Operation Focus	Manual with Lock
Zoom	Manual with Lock
Iris	DC Auto Iris
Back Focus (in air)	Wide 8.61 - Tele 19.90mm
Operating Voltage	Open 3.3V, Close 0.7V
Weight	71g
Operating Temperature	-20°C - +60°C
