13VG550ASIISQ

Tamron 13VG550ASII-SQ 1/3" 5-50mm F/1.4 High Resolution Aspherical Auto-Iris Vari-Focal CCTV Lens

Tamron 13VG550ASII-SQ 1/3" 5-50mm F/1.4 High Resolution Aspherical Auto-Iris Vari-Focal CCTV Lens

SKU:13VG550ASII-SQ

Regular price $88.99 USD
Regular price Sale price $88.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

High-Resolution IR Auto-Iris Varifocal Lens for Machine Vision and Industrial Applications

Tamron, a leading brand in the lens industry, offers the 13VG308ASIRII lens, designed to meet the demanding needs of machine vision and industrial applications. This lens features a 1/3" imager size and a CS mount, providing compatibility with a wide range of cameras. Its focal length ranges from 3.0 to 8mm, offering flexibility for various imaging requirements. The lens boasts an impressive aperture range of F/1.0 to 360, ensuring optimal performance in different lighting conditions.

One of the key features of the Tamron 13VG308ASIRII is its high-resolution IR capability, making it ideal for applications requiring precise imaging in low-light or infrared environments. The DC auto-iris function automatically adjusts the iris to maintain consistent image quality, while the manual focus and zoom with lock ensure stable and accurate adjustments.

Industries that can benefit from this lens include manufacturing, quality control, security, and surveillance. The lens's robust design, with an operating temperature range of -20°C to +60°C and a weight of 44.8g, makes it suitable for harsh industrial environments.

Invest in the Tamron 13VG308ASIRII to enhance the performance and reliability of your imaging systems, ensuring superior image quality and operational efficiency.

Features:

  • 1/3" imager size
  • CS mount compatibility
  • 3.0-8mm focal length
  • F/1.0 to 360 aperture range
  • High-resolution IR capability
  • DC auto-iris function
  • Manual focus and zoom with lock
  • Operating temperature: -20°C to +60°C
  • Weight: 44.8g

Applications:

  • Manufacturing inspection
  • Quality control systems
  • Security and surveillance
  • Automated production lines
  • Robotics vision systems
  • Low-light imaging
  • Infrared imaging systems

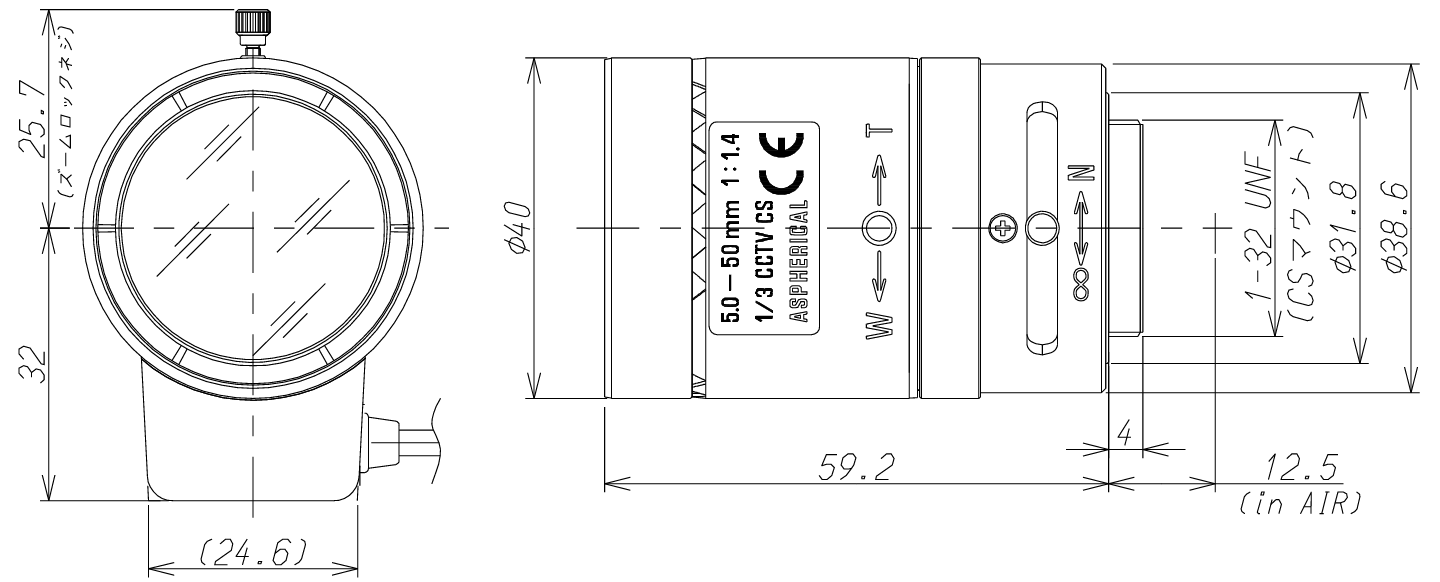

13VG550ASII-SQ Spec Sheet

Imager Size 1/3
Mount Type CS
Focal Length 5-50mm
Aperture Range f/1.4 - close (360)
Field of View Angle (1/3") Wide: 53.6° x 40.3°, Tele: 5.6° x 4.2°
Field of View Angle (1/4") Wide: 40.3° x 30.1°, Tele: 4.2° x 3.1°
Focusing Range 0.3m - Infinity
Operation Focus Manual with Lock
Operation Zoom Manual with Lock
Operation Iris DC Auto Iris
Back Focus (in air) Wide: 10.05mm - Tele: 11.81mm
Operating Voltage Open: 4.0V, Close: 0.7V
Weight 84g
Operating Temperature -20°C to +60°C
