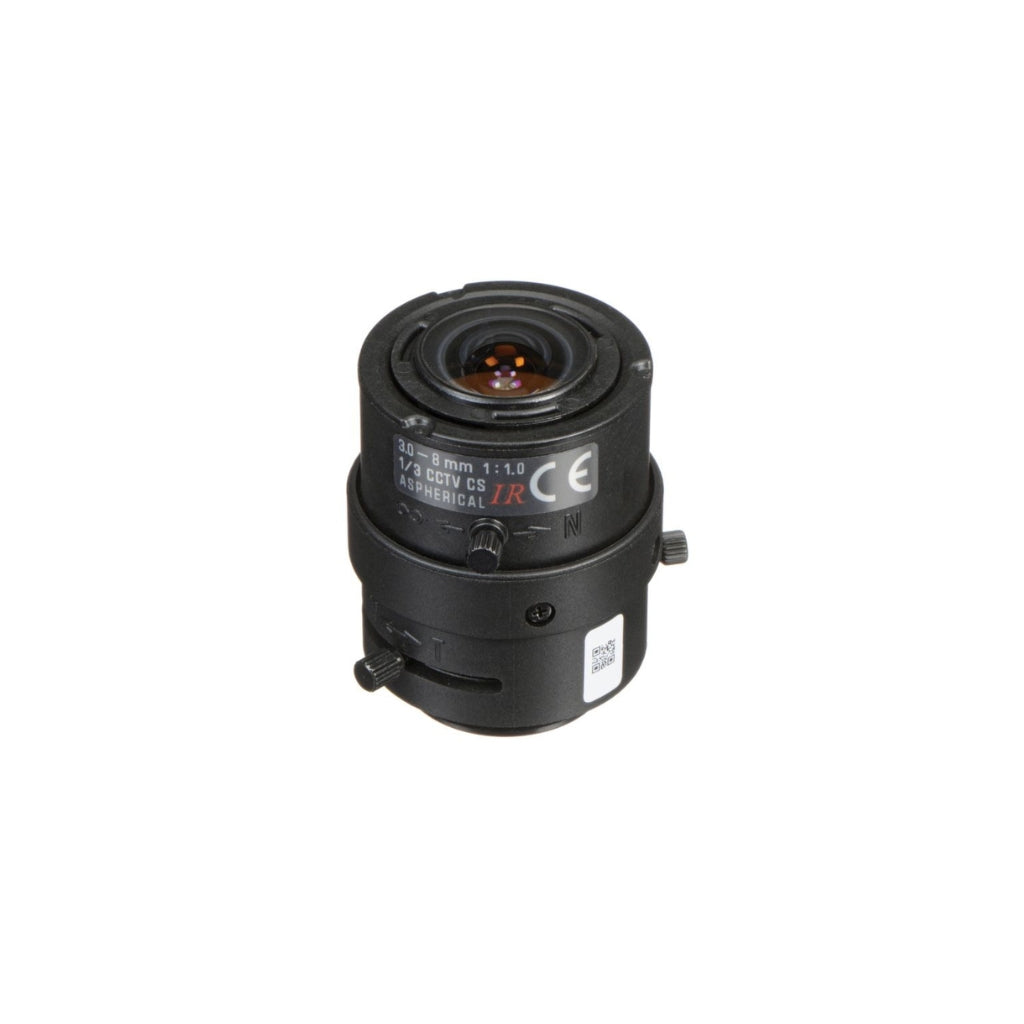

TAMRON 13VM308ASIRII – Industrial Lens | 1/3" 3–8mm IR

*Please note tariff fee is included in price*

SKU focus: 13VM308ASIRII (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON 13VM308ASIRII?

• Focal: 3–8mm
• Aperture: F3.0–F8
• Image format: 1/3" sensor coverage
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

13VM308ASIRII, “TAMRON 13VM308ASIRII lens”, and “3–8mm 1/3" lens”.

Precision and Versatility with Tamron Lenses for Industrial Applications

USA Security Systems Inc. is proud to offer the Tamron 13VG308ASIRII 1/3" 3-8mm F/1.0 High-Resolution IR Auto-Iris Varifocal Lens, a top-tier solution designed for the most demanding machine vision and industrial applications. Known for its superior optical performance, this lens features a focal length of 3.0-8mm and an aperture range of F/1.0 to close, providing exceptional flexibility and control in various lighting conditions.

With a horizontal field of view ranging from 92.5° (wide) to 35.7° (tele), this lens ensures comprehensive coverage and precision. The manual lock features on focus, zoom, and iris adjustments guarantee stability and reliability, crucial for high-stakes environments where consistency is key. Its robust design, with an operating temperature range of -20°C to +60°C and weighing only 38.4g, makes it ideal for challenging industrial settings.

Tamron, a leading brand in optical solutions, is synonymous with innovation and quality. The 13VG308ASIRII lens is especially beneficial for applications requiring high-resolution imaging and infrared capabilities, such as automated inspection systems, security surveillance, robotics, and more. Embrace the cutting-edge technology and unparalleled performance of Tamron lenses to enhance your industrial imaging capabilities.

Features:

• 1/3" imager size
• CS mount type
• 3.0-8mm focal length
• Aperture range of F/1.0 to close
• Wide and tele horizontal field of view: 92.5° to 35.7°
• Manual lock on focus, zoom, and iris
• Operating temperature: -20°C to +60°C
• Lightweight at 38.4g

Applications:

• Automated inspection systems
• Security surveillance
• Robotics
• Quality control in manufacturing
• Infrared imaging tasks
• High-resolution monitoring systems
• Industrial process control

Imager Size	1/3"
Mount	CS
Focal Length	3.0 to 8 mm
Aperture Range	F/1.0 - Close
Angle of View (1/3")	Wide: 92.5° x 68.0°, Tele: 35.7° x 26.8°
Angle of View (1/4")	Wide: 68.0° x 50.4°, Tele: 26.8° x 20.1°
Focus Range	0.2m to infinity
Focus Control	Manual lock
Zoom Control	Manual lock
Iris Control	Manual lock
Filter Thread Diameter	-
Back Focus	Wide: 7.69mm (in air), Tele: 13.72mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Operating Voltage	-
Weight	38 g ± 4 g
Operating Temperature Range	-20℃～+60℃
