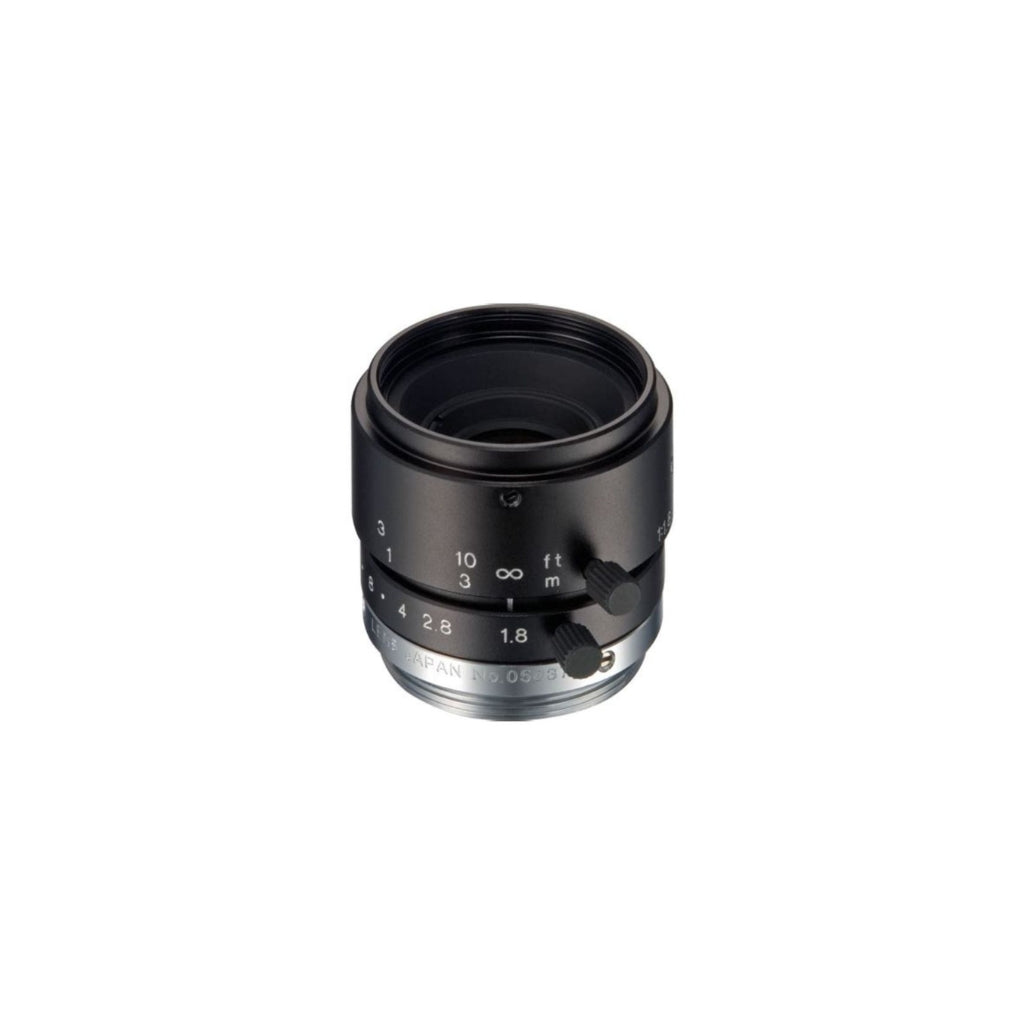

Tamron 23FM12L 2/3" High Res Mono-focal Lens 12mm F/1.8

Enhance Your Industrial and Machine Vision Systems with Tamron 23FM12L Lens

Tamron is a renowned brand in the optical lens industry, offering top-tier lenses for a wide range of applications. The Tamron 23FM12L 2/3" high-resolution mono-focal lens is specifically designed for machine vision and industrial applications. With a focal length of 12mm and an impressive aperture range of F/1.8 to F/16, this lens provides exceptional image clarity and brightness, even in low-light conditions. The C-mount design ensures compatibility with various industrial cameras, making it a versatile choice for different imaging solutions.

This lens boasts a manual focus and iris, allowing precise control over the image capture process. Its compact size, with a maximum diameter of ø1.1 inches and an overall length of 1.1 inches, makes it ideal for integration into tight spaces. Weighing just 40 grams, the Tamron 23FM12L is lightweight yet robust, ensuring durability and long-term performance.

Applications benefiting from the Tamron 23FM12L include industrial automation, quality control, factory automation, and security systems. Its high-resolution capabilities and wide field of view make it perfect for detailed inspections and monitoring tasks. By choosing Tamron, you are investing in a reliable and high-quality imaging solution that meets the rigorous demands of industrial environments.

Features:

• 2/3" high-resolution mono-focal lens
• 12mm focal length with F/1.8 - 16 aperture range
• C-mount for versatile camera compatibility
• Manual focus and iris for precise control
• Compact size and lightweight design
• Wide field of view (40.9° x 30.9° for 2/3")

Applications:

• Industrial automation
• Quality control inspections
• Factory automation systems
• Security and surveillance systems
• Detailed monitoring tasks

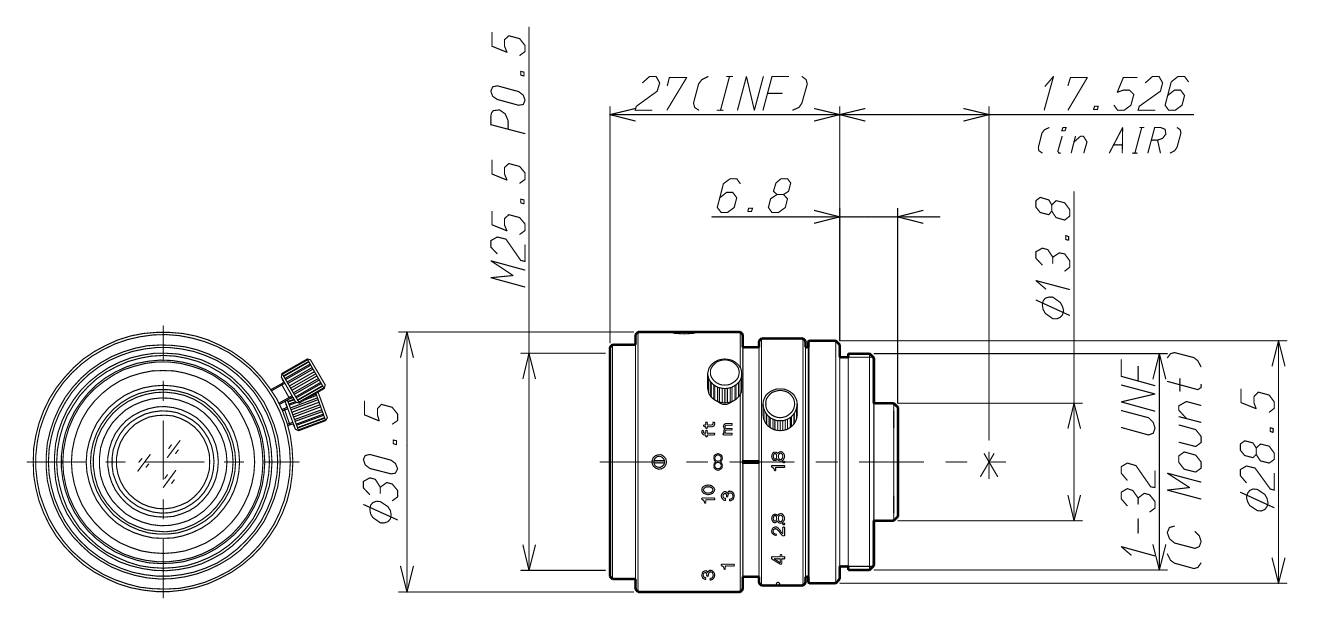

23FM12L Spec Sheet
