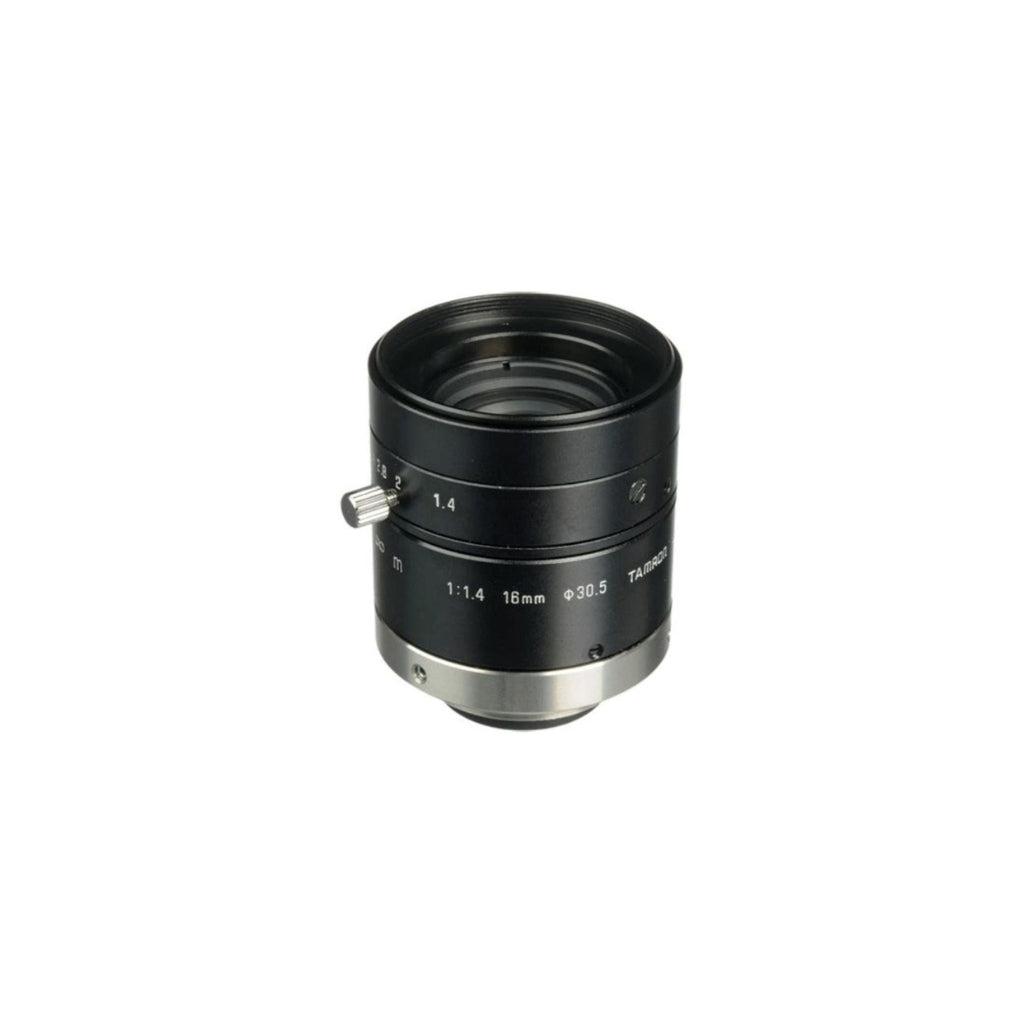

Tamron 23FM16SP 2/3" 16mm f/1.4 C-Mount Lens with Lock for Megapixel Cameras

Tamron 23FM16SP 2/3" 16mm f/1.4 C-Mount Lens with Lock for Megapixel Cameras

SKU:23FM16SP

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Imaging Solutions with Tamron 23FM16SP 16mm f/1.4 C-Mount Lens

The Tamron 23FM16SP is a versatile and high-performance C-Mount lens designed for industrial and machine vision applications. This 16mm f/1.4 lens is optimized for 2/3" imagers and offers megapixel compatibility up to 1.3, ensuring exceptional image clarity and sharpness. With a manual focus and iris, both equipped with locks, users can maintain precise control over their imaging settings, which is critical for consistent and repeatable results in industrial environments.

Tamron, a renowned name in the optics industry, has engineered this lens to meet the demanding requirements of high-resolution imaging systems. The lens features a wide aperture range of f/1.4 to f/22, providing flexibility in various lighting conditions. Its robust construction is designed to operate in temperatures ranging from -10°C to +60°C, making it suitable for diverse industrial settings.

Applications benefiting from the Tamron 23FM16SP include automated inspection systems, quality control, security surveillance, and any machine vision system requiring reliable, high-quality image capture. The lens's minimal TV distortion (less than -0.1%) and comprehensive field of view angles make it an excellent choice for precision imaging tasks.

For businesses seeking to enhance their imaging capabilities, the Tamron 23FM16SP lens from USA Security Systems Inc. offers an ideal combination of quality, durability, and performance.

Features:

  • 16mm focal length
  • Compatible with 2/3" imagers, up to 1.3 megapixels
  • Manual focus and iris with locks
  • Aperture range: f/1.4 - f/22
  • Minimal TV distortion: less than -0.1%
  • Operating temperature: -10°C to +60°C

Applications:

  • Automated inspection systems
  • Quality control processes
  • Security surveillance
  • High-resolution imaging systems
  • Precision measurement tools
  • Robotics vision systems
  • Industrial monitoring systems

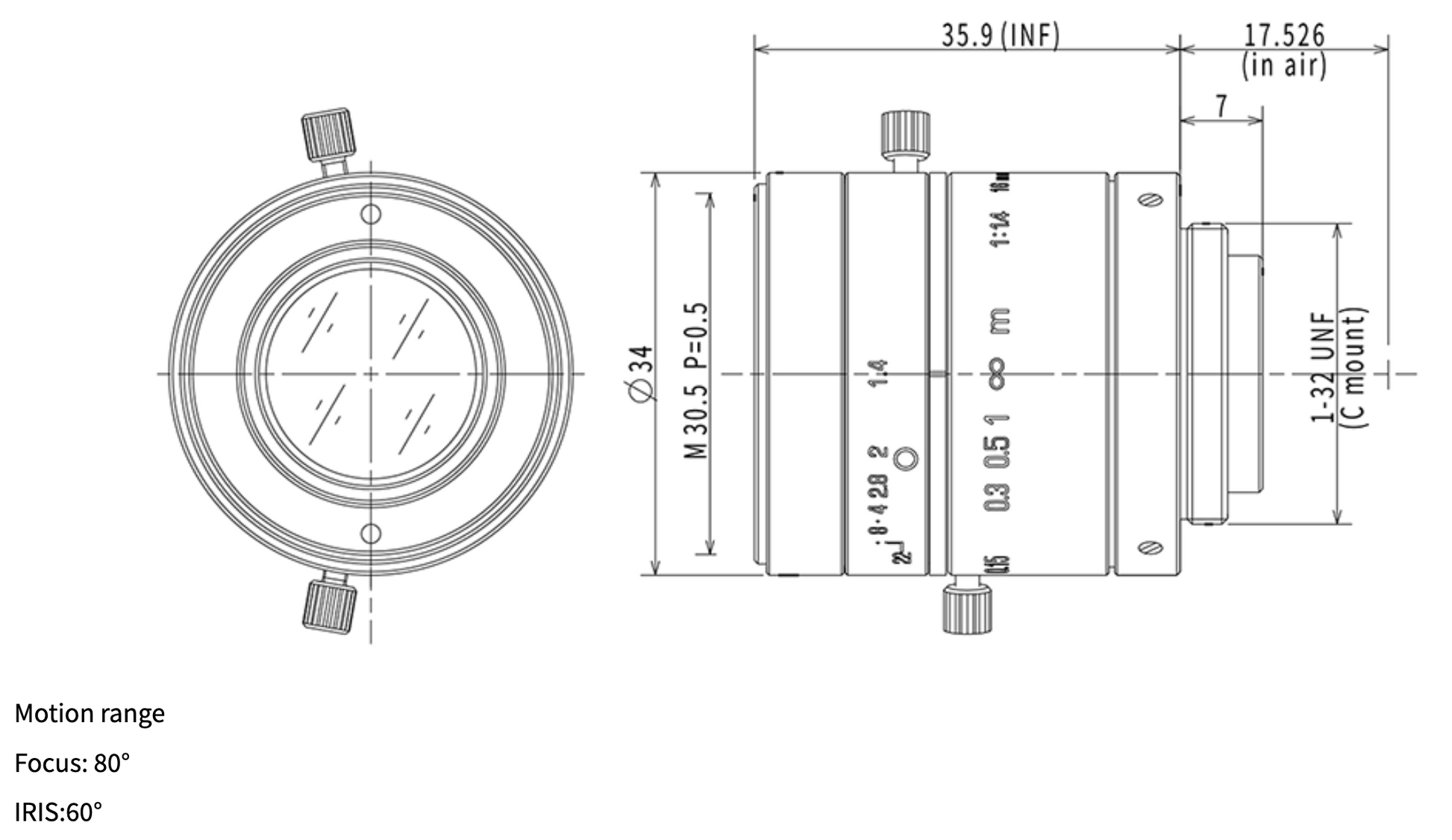

23FM16SP Spec Sheet

Imager Size 2/3"
Mount C
Focal Length 16mm
Aperture Range F/1.4 to F/22
Angle of View 2/3": 30.9° x 23.4°1/2": 22.7° x 17.1°1/3": 17.1° x 12.9°
Focus Range 0.15m to ∞
Focus Usage With manual lock
Iris With manual lock
Filter Thread Diameter M30.5 P=0.5mm
Compatible Wavelengths Visible light range
Distortion -0.1% ≤ D ≤ 0%
Mass 80g ± 5g
Operating Temperature Range -10℃ to +60℃
