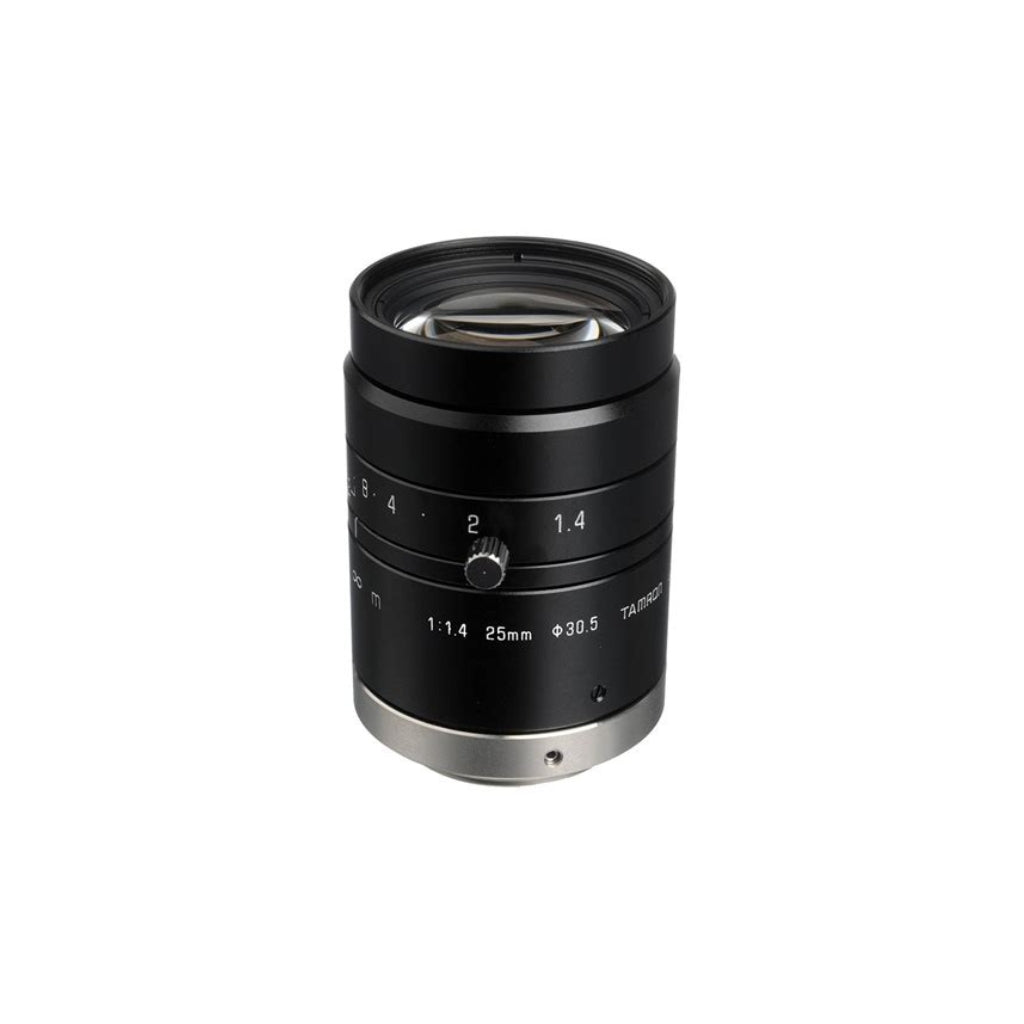

Tamron 23FM25SP 2/3" 25mm f/1.4 C-Mount Manual Iris Lens for Megapixel Cameras

Tamron 23FM25SP 2/3" 25mm f/1.4 C-Mount Manual Iris Lens for Megapixel Cameras

SKU:23FM25SP

Regular price $171.00 USD
Regular price Sale price $171.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Imaging Precision with Tamron 23FM25SP Lens

The Tamron 23FM25SP lens is a high-quality, precision optical component designed for industrial and machine vision applications. Compatible with 2/3" sensors and boasting a 25mm focal length, this lens provides sharp, high-resolution images essential for detailed inspection and analysis. With an aperture range of f/1.4 to f/22, it offers excellent versatility in various lighting conditions, ensuring optimal performance whether in bright or dim environments.

This C-mount lens supports megapixel cameras up to 1.3 megapixels, making it ideal for applications requiring superior image clarity and accuracy. The manual iris and focus, both equipped with locks, allow for precise adjustments and stability, crucial for maintaining consistent image quality during operation. Its compact design, with a weight of just 103 grams, makes it easy to integrate into existing systems without adding significant bulk.

Ideal for use in quality control, production line monitoring, and automated inspection systems, the Tamron 23FM25SP lens enhances the capabilities of your imaging setup. Its robust construction ensures reliable performance in varying temperatures, from -10°C to +60°C, making it suitable for diverse industrial environments. Trust Tamron and USA Security Systems Inc. to deliver the best in imaging technology.

Features:

  • 2/3" sensor compatibility
  • 25mm focal length
  • Aperture range: f/1.4 to f/22
  • Manual focus and iris with locks
  • Supports 1.3 megapixel cameras
  • Lightweight at 103 grams
  • Operating temperature: -10°C to +60°C
  • Less than -0.05% TV distortion
  • 17.17mm back focus

Applications:

  • Quality control inspections
  • Production line monitoring
  • Automated inspection systems
  • High-resolution imaging needs
  • Precision measurement tasks
  • Industrial process control
  • Scientific research and analysis

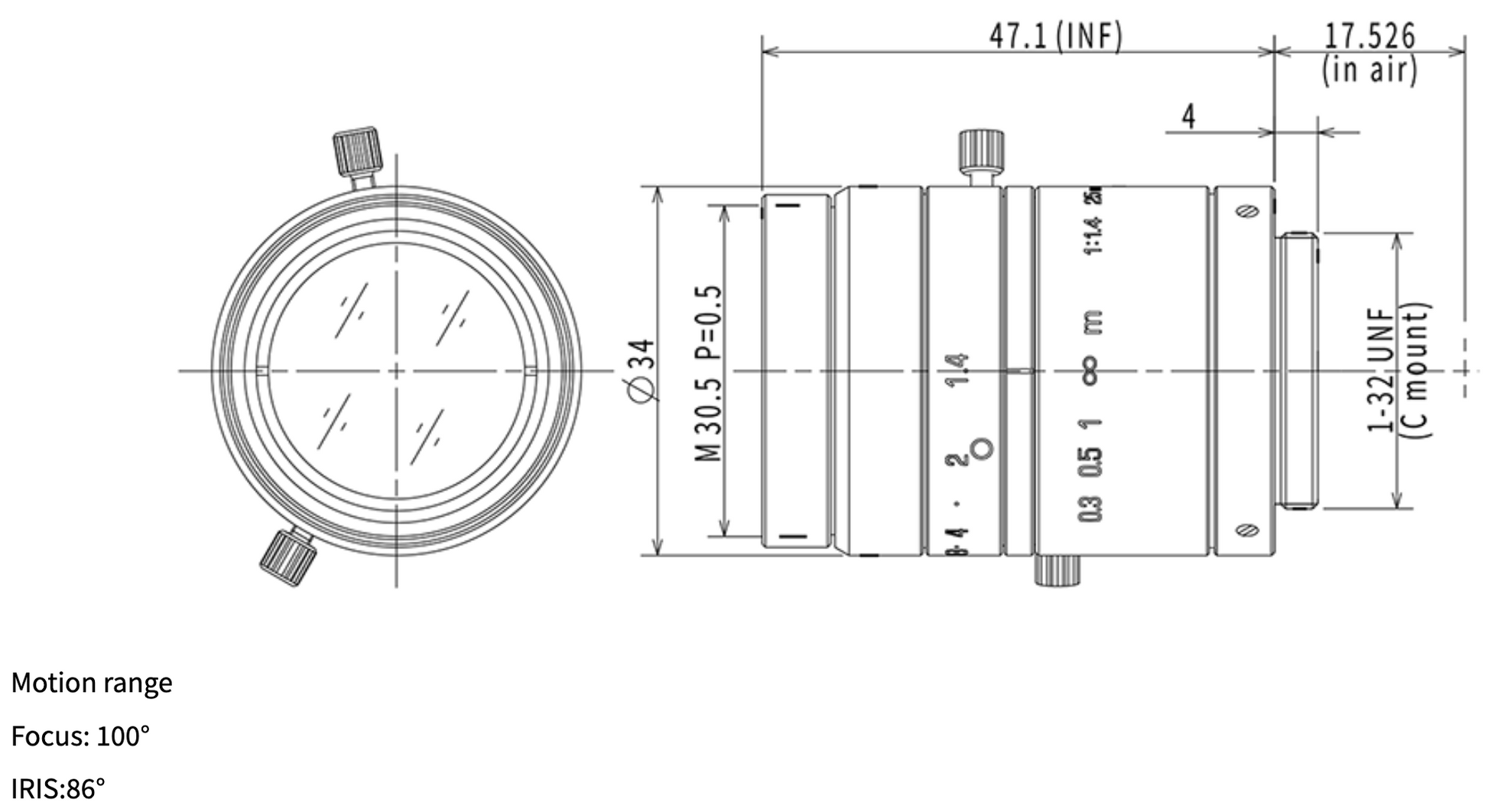

23FM25SP Spec Sheet

Imager Size 2/3"
Mount C
Focal Length 25mm
Aperture Range F/1.4 to F/22
Angle of View (2/3") 20° x 15.1°
Angle of View (1/2") 14.6° x 11°
Angle of View (1/3") 11° x 8.2°
Focus Range 0.15m to infinity
Focus Usage With manual lock
Iris With manual lock
Filter Thread Diameter M30.5 P=0.5mm
Compatible Wavelengths Visible light range
Distortion -0.05% ≦ D ≦ 0%
Mass 103g
Operating Temperature Range -10℃ to +60℃
