Tamron 23FM50L 2/3" High Resolution Fixed Focal Lens With Lock And Manual Iris

Tamron 23FM50L 2/3" High Resolution Fixed Focal Lens With Lock And Manual Iris

SKU:23FM50L

Regular price $158.00 USD
Regular price Sale price $158.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Imaging Precision with Tamron 23FM50L Lens

The Tamron 23FM50L 2/3" high-resolution fixed focal lens is a premier choice for those seeking precision and reliability in their machine vision and industrial applications. Manufactured by Tamron, a renowned name in optical engineering, this lens features a 50mm focal length and an impressive aperture range of 2.8 to 22, ensuring sharp and detailed images across various lighting conditions. Its manual focus and iris controls, both equipped with locking mechanisms, offer enhanced stability and control during critical operations.

The 23FM50L is designed for C mount compatibility and boasts a minimum object distance of 17.3 inches, making it versatile for close-up inspections. With a field of view ranging from 5.5° x 4.1° for 1/3” sensors to 10.0° x 7.5° for 2/3” sensors, this lens is adaptable to various imaging needs. Its compact size, with an overall length of 1.5 inches and a weight of just 52 grams, allows for easy integration into tight spaces.

Ideal for use in quality control, automated inspection systems, and surveillance, the Tamron 23FM50L lens ensures high-performance imaging and reliability. Choose USA Security Systems Inc. for top-tier optical solutions tailored to your industrial and machine vision needs.

Features:

  • 2/3" high-resolution lens
  • 50mm fixed focal length
  • Aperture range: 2.8 - 22
  • Manual focus and iris with lock
  • C mount compatibility
  • Compact and lightweight design
  • Field of view: up to 10.0° x 7.5°
  • Minimum object distance: 17.3 inches

Applications:

  • Quality control inspections
  • Automated manufacturing processes
  • Surveillance systems
  • Robotics and automation
  • Precision measurement
  • Optical character recognition
  • Scientific research imaging
  • Pharmaceutical production inspection

23FM50L Spec Sheet

Imager Size 2/3"
Mount Type C
Focal Length 50mm
Aperture Range F2.8 - F22
Field of View Angle (1/3") 5.5° x 4.1°
Field of View Angle (1/2") 7.3° x 5.5°
Field of View Angle (2/3") 10.0° x 7.5°
Effective Diameter (Front/Rear Lens) Ø17.5mm / Ø10.8mm
Operation - Focus Manual with Lock
Operation - Iris Manual with Lock

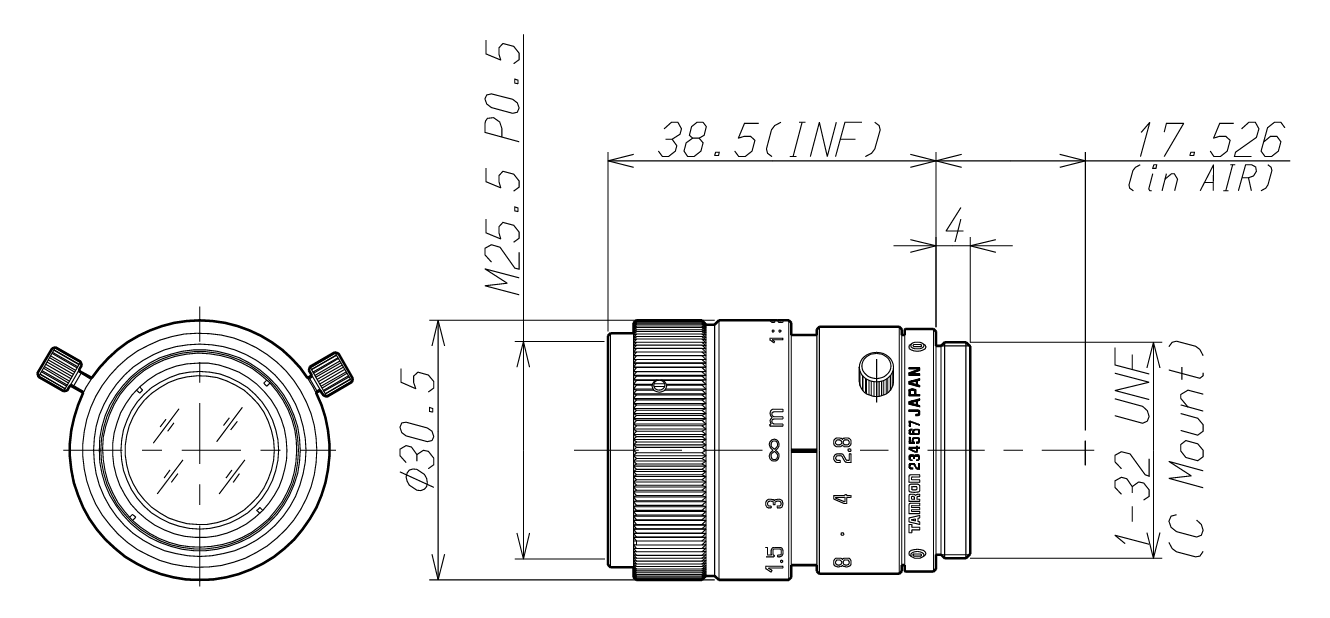

Minimum Object Distance 17.3 in. (0.44m)
Back Focus (in air) 22.10mm
Filter Size M25.5 P=0.5
Maximum Diameter ø1.2 in. (ø30.5mm)
Overall Length 1.5 in. (38.5mm)
Weight 52g
