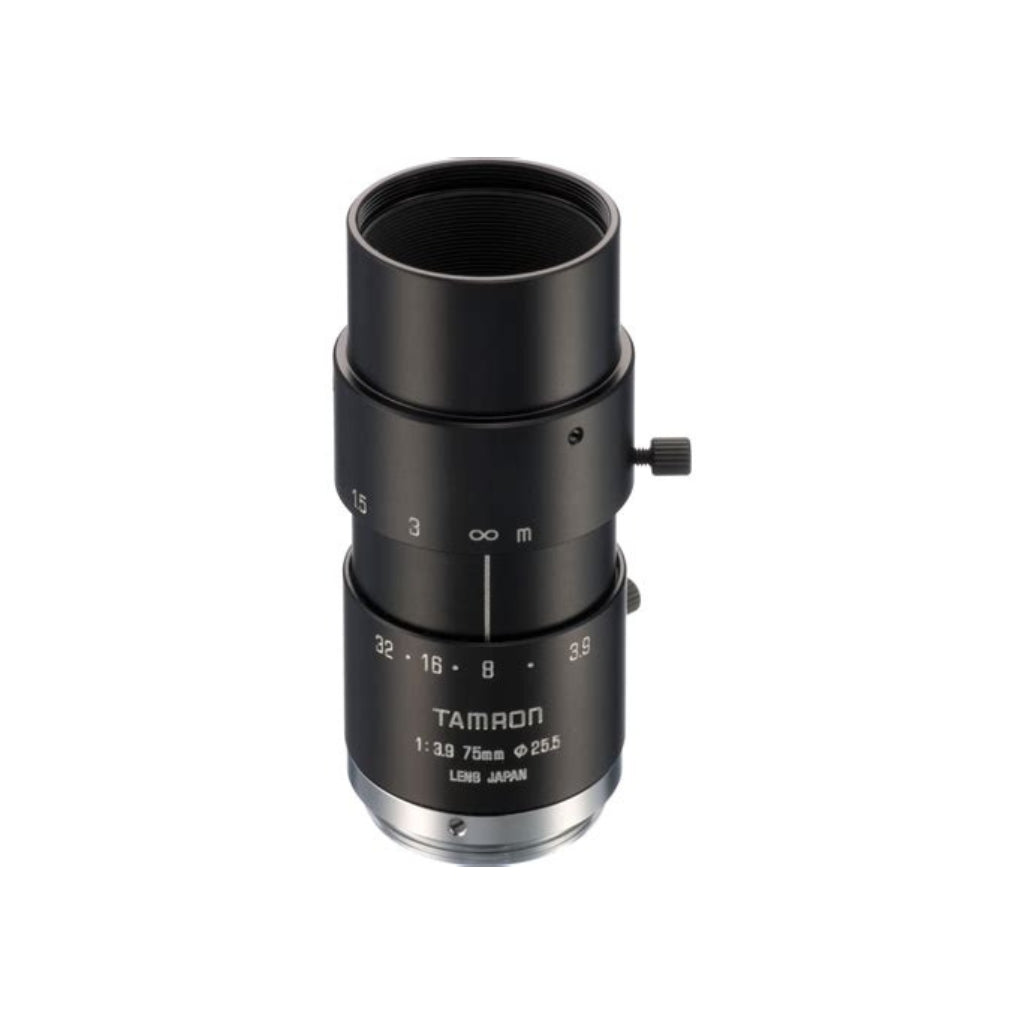

Tamron 23FM75L 2/3" 75mm f/3.9 High Resolution C-Mount Lens with Lock

Tamron 23FM75L 2/3" 75mm f/3.9 High Resolution C-Mount Lens with Lock

SKU:23FM75L

Regular price $168.00 USD
Regular price Sale price $168.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

High-Performance Tamron 23FM75L Lens for Industrial and Machine Vision Applications

Tamron is renowned for producing high-quality lenses that cater to a wide array of imaging needs. The Tamron 23FM75L 2/3" 75mm f/3.9 High Resolution C-Mount Lens is a prime example of their expertise in optical technology. This lens is specifically designed for high-resolution machine vision and industrial applications, offering exceptional clarity and precision.

The 23FM75L lens features a focal length of 75mm and an aperture range of f/3.9 to f/32, making it versatile for various lighting conditions. It supports a 2/3" sensor size and provides a horizontal field of view of 6.9° and a vertical field of view of 5.2° on a 2/3" imager. This narrow field of view is ideal for detailed inspections and applications requiring high magnification.

Both the focus and iris settings can be manually adjusted and locked, ensuring stable and consistent performance during prolonged use. The lens has a minimum object distance of 19.7 inches (0.5 meters), making it suitable for close-up inspections. With a compact design, featuring an overall length of 2.6 inches and a weight of 68 grams, it is easy to integrate into various machine vision systems.

Industries such as manufacturing, quality control, and automation can significantly benefit from this lens. It is perfect for tasks like product inspection, measurement, and monitoring, where precision and reliability are paramount.

Features:

  • 75mm focal length
  • High-resolution optics
  • Manual focus and iris with lock
  • Suitable for 2/3" sensor size
  • Compact and lightweight design
  • Minimum object distance: 19.7 inches
  • Aperture range: f/3.9 to f/32

Applications:

  • Product inspection
  • Quality control
  • Automation systems
  • Detailed measurements
  • Monitoring and surveillance

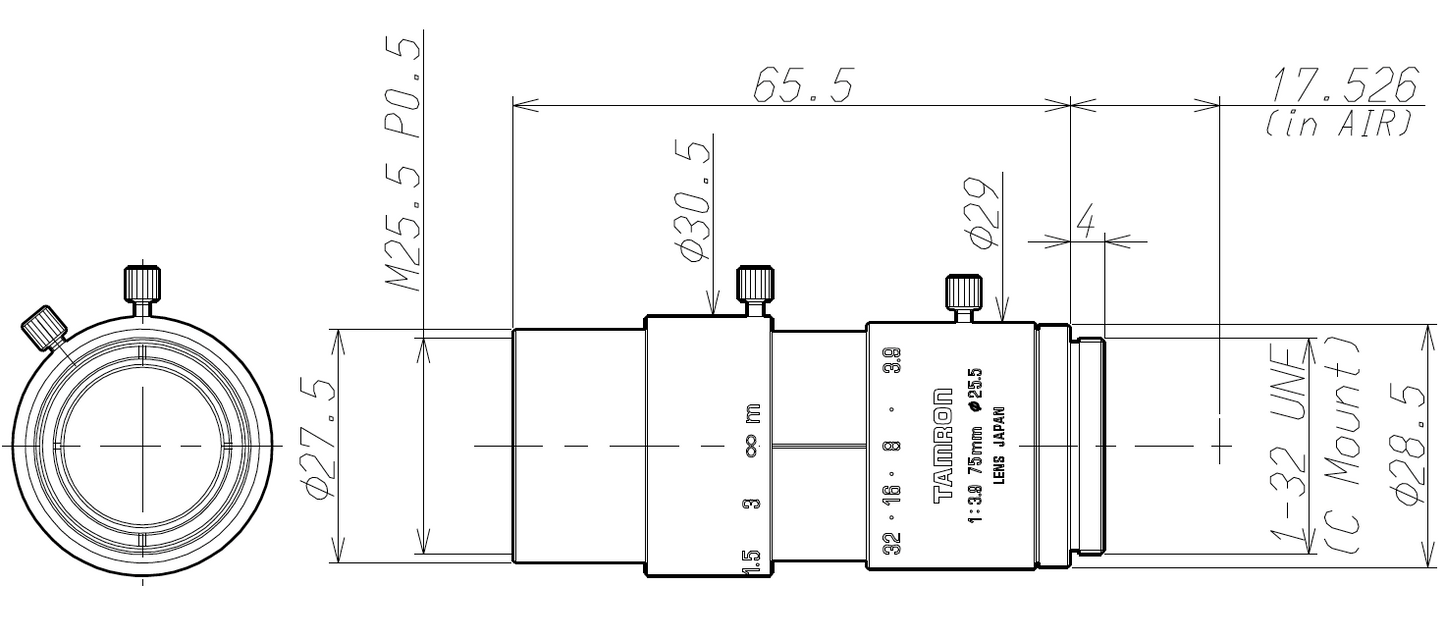

23FM75L Spec Sheet

Imager Size 2/3
Mount Type C
Focal Length 75mm
Aperture Range 3.9 - 32
Field of View Angle (Horizontal x Vertical) 1/3: 3.5° x 2.5°, 1/2: 5.0° x 3.5°, 2/3: 6.9° x 5.2°
Effective Diameter (Front/Rear Lens) Ø18.4mm / Ø10.7mm
Focus Operation Manual with Lock
Iris Operation Manual with Lock
Minimum Object Distance 19.7 in. (0.5m)
Back Focus (in air) 27.115mm
Filter Size M25.5 P=0.5
Maximum Diameter ø1.1 in. (ø29mm)
Overall Length 2.6 in. (65.5mm)
Weight 68g
