TAMRON M112FM06 – Industrial Lens | 1/1.2" 6mm

*Please note tariff fee is included in price*

SKU focus: M112FM06 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M112FM06?

• Focal: 6mm
• Aperture: F6
• Image format: 1/1.2" sensor coverage
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M112FM06, “TAMRON M112FM06 lens”, and “6mm 1/1.2" lens”.

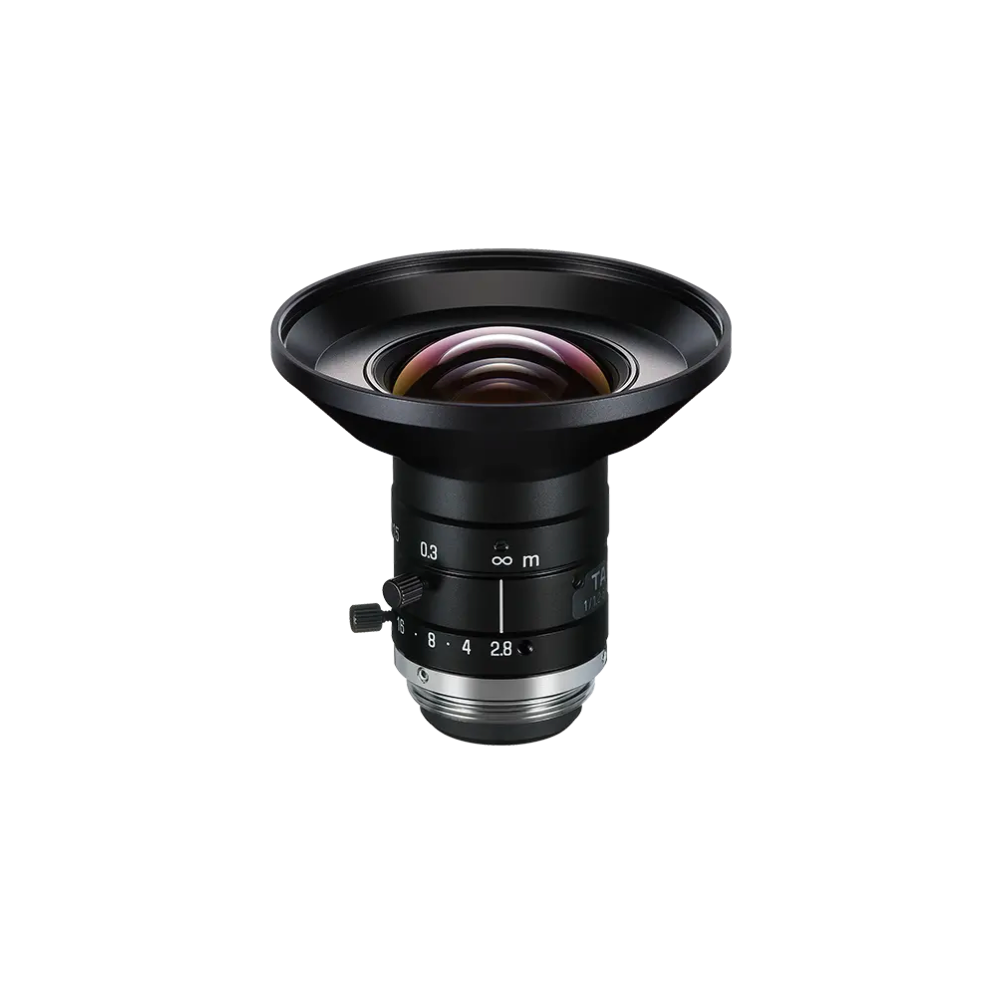

Enhance Your Machine Vision with Tamron M112FM06 Mega-Pixel Fixed-Focal Lens

The Tamron M112FM06 1/1.2" 6mm F/2.8 Aspherical Mega-Pixel Fixed-Focal Lens is an exceptional choice for professionals in the machine vision and industrial sectors. Designed for high-resolution imaging, this lens boasts a 5 mega-pixel compatibility, ensuring sharp and detailed images. Its C mount type makes it versatile and easy to integrate with a variety of systems.

With a focal length of 6mm and an aperture range of F/2.8 to F/16, the Tamron M112FM06 provides a broad field of view and excellent low-light performance. The lens supports various field of view angles, including 87.7° x 70.1° for 1/1.2 [4:3] and 93.1° x 59.0° for 1/1.2 [16:9], making it adaptable to different aspect ratios.

Constructed with aspherical elements, this lens minimizes distortion (-1.99% TV distortion) and ensures superior image quality. The manual focus and iris operations, both with locks, offer precision control for critical applications. Weighing just 115g and operating effectively in temperatures ranging from -20°C to +60°C, the Tamron M112FM06 is robust and reliable for various industrial environments.

Ideal for security systems, automated inspection, and robotics, this lens enhances performance and reliability in demanding machine vision applications.

Features:

• 1/1.2" imager size
• 5 mega-pixel compatibility
• C mount type
• 6mm focal length
• Aperture range: F/2.8 to F/16
• Aspherical lens design
• Manual focus and iris with lock
• Low TV distortion (-1.99%)
• Lightweight (115g)
• Wide operating temperature range (-20°C to +60°C)

Applications:

• Security systems
• Automated inspection
• Robotics
• Industrial imaging
• Quality control
• Process monitoring
• Surveillance systems
• Precision measurement
• Optical sorting
• Manufacturing automation

Imager Size	1/1.2"
Mount	C
Focal Length	6mm
Aperture Range	F/2.8 to F/16
Angle of View	1/1.2" (4:3) 87.7° x 70.1°1/1.2" (16:9) 93.1° x 59.0°2/3" (4:3) 75.5° x 59.2°2/3" (16:9) 80.8° x 49.3°
Focus Range	0.1m to ∞ (Recommended Shooting Distance: 0.3m)
How to Use	Focus with manual lockIris with manual lock
Filter Thread Diameter	M58 P=0.75 (with filter adapter)
Compatible Wavelengths	Visible light range
Distortion	-1.99%
Mass	115g (with filter adapter)
Operating Temperature Range	-20℃ to +60℃
