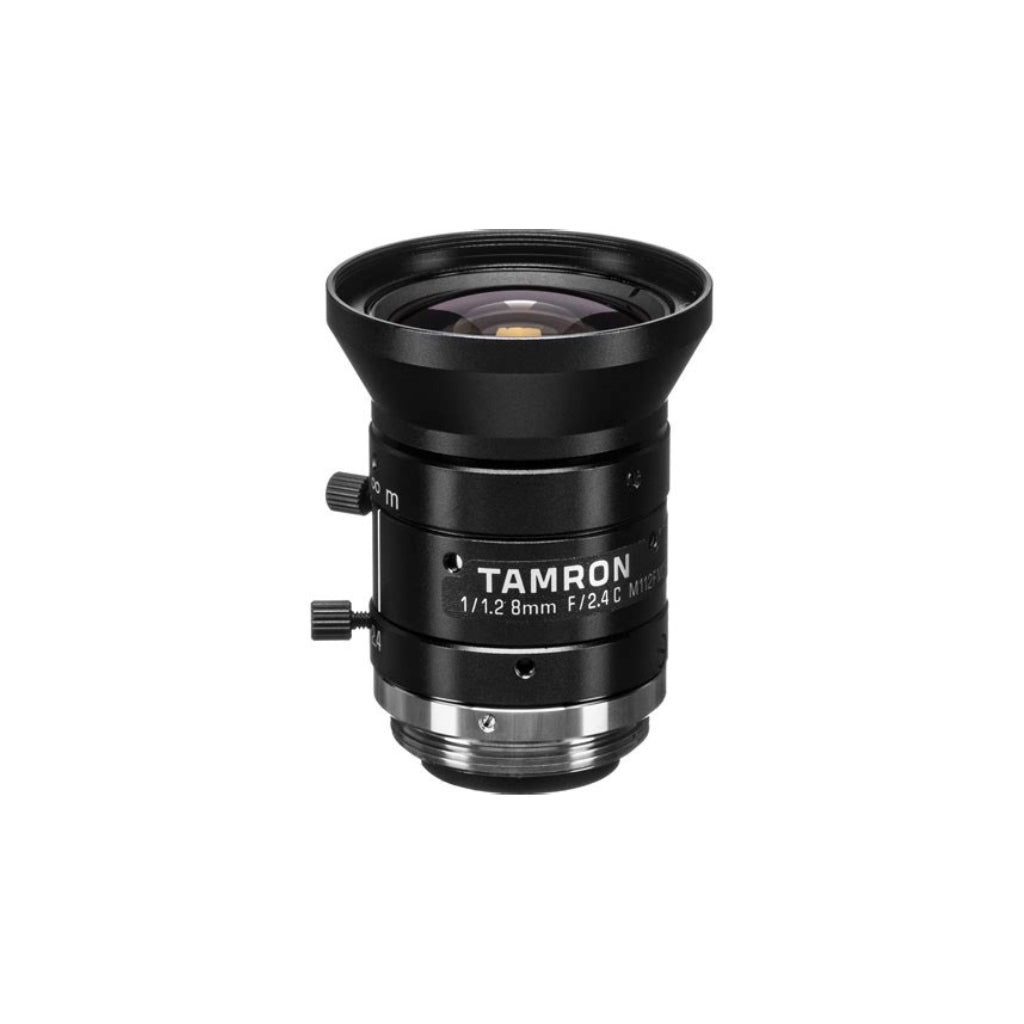

TAMRON M112FM08 – Industrial Lens | C-mount 1/1.2" 8mm

*Please note tariff fee is included in price*

SKU focus: M112FM08 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M112FM08?

• Focal: 8mm
• Image format: 1/1.2" sensor coverage
• Mount: C-mount
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M112FM08, “TAMRON M112FM08 lens”, and “8mm 1/1.2" lens”.

Enhance Your Industrial Vision Systems with Tamron's M112FM08 Lens

Tamron, a leading name in optical innovation, offers the M112FM08, a state-of-the-art 1/1.2" 8mm F/2.4 Aspherical Mega-Pixel Fixed-Focal Lens. Designed to meet the rigorous demands of modern industrial and machine vision applications, this lens delivers exceptional image quality with its 5-megapixel compatibility. The C-mount design ensures easy integration into various camera systems, making it a versatile choice for professionals.

The lens features a broad aperture range of F/2.4 to F/16, allowing precise control over exposure, while the aspherical elements minimize distortion and aberrations. Its manual focus and iris adjustments, both equipped with locks, provide stability and accuracy in demanding environments. The wide field of view angles, ranging from 70.3° x 54.9° to 75.3° x 45.6°, accommodate diverse imaging needs.

Built to perform under extreme conditions, the Tamron M112FM08 operates efficiently between -20°C and +60°C, ensuring reliable performance in various industrial settings. Applications benefiting from this lens include factory automation, quality inspection, robotics, and surveillance. With a focusing range from 0.1m to infinity, it excels in capturing detailed images at both close and distant ranges. Equip your vision systems with Tamron’s M112FM08 to achieve superior imaging precision and enhance your operational efficiency.

Features:

• 1/1.2" sensor size
• 5-megapixel compatibility
• 8mm focal length
• Aperture range: F/2.4 to F/16
• Aspherical lens elements
• Manual focus and iris with locks
• Wide field of view angles
• C-mount design
• -20°C to +60°C operating temperature
• Visible light wavelength

Applications:

• Factory automation
• Quality inspection
• Robotics
• Surveillance systems
• Image processing
• High-resolution monitoring
• Precision engineering
• Automated sorting systems

Imager Size	1/1.2"
Mount	C
Focal Length	8mm
Aperture Range	F/2.4 to F/16
Angle of View	1/1.2"(4:3) 70.3° x 54.9° 1/1.2"(16:9) 75.3° x 45.6° 2/3" (4:3) 59.5° x 45.8° 2/3"(16:9) 64.0° x 37.8°
Focus Range	0.1m～∞ (Recommended Shooting Distance: 0.3m)
Focus Method	With manual lock
Iris	With manual lock
Filter Thread Diameter	M35.5 P=0.5mm
Compatible Wavelengths	Visible light range
Distortion	-1.47% (*)
Weight	86g
Operating Temperature Range	-20℃ to +60℃
