Tamron M112FM35 1/1.2" 35mm F/2.1 Aspherical Mega-Pixel Fixed-Focal Lens

Tamron M112FM35 1/1.2" 35mm F/2.1 Aspherical Mega-Pixel Fixed-Focal Lens

SKU:M112FM35

Regular price $251.96 USD
Regular price Sale price $251.96 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover the Tamron M112FM35 35mm F/2.1 Aspherical Mega-Pixel Fixed-Focal Lens

Tamron lenses are renowned for their precision and reliability in industrial and machine vision applications. The Tamron M112FM35 35mm F/2.1 Aspherical Mega-Pixel Fixed-Focal Lens exemplifies this with its exceptional optical quality and robust build. Designed for 1/1.2" mega-pixel sensors, it offers a focal length of 35mm and an aperture range from F/2.1 to F/16, ensuring clarity and flexibility in various imaging scenarios.

Ideal for machine vision systems requiring detailed inspections or high-resolution imaging, this lens excels in applications such as automated manufacturing, quality control, robotics, and surveillance. Its aspherical design minimizes distortion and enhances image sharpness across the frame. With manual focus and iris controls, alongside a compact, lightweight build, the M112FM35 is versatile and easy to integrate into existing setups.

For businesses seeking to enhance their industrial imaging capabilities, Tamron lenses provide a trusted solution backed by decades of optical expertise. Whether you're upgrading existing equipment or starting anew, the Tamron M112FM35 ensures superior performance and reliability in every application.

Features:

  • 35mm focal length
  • Aspherical lens design
  • F/2.1 - F/16 aperture range
  • Manual focus and iris control
  • Lightweight (57g) and compact
  • Compatible with 1/1.2" mega-pixel sensors

Applications:

  • Automated manufacturing
  • Quality control inspections
  • Robotics and automation
  • Surveillance systems

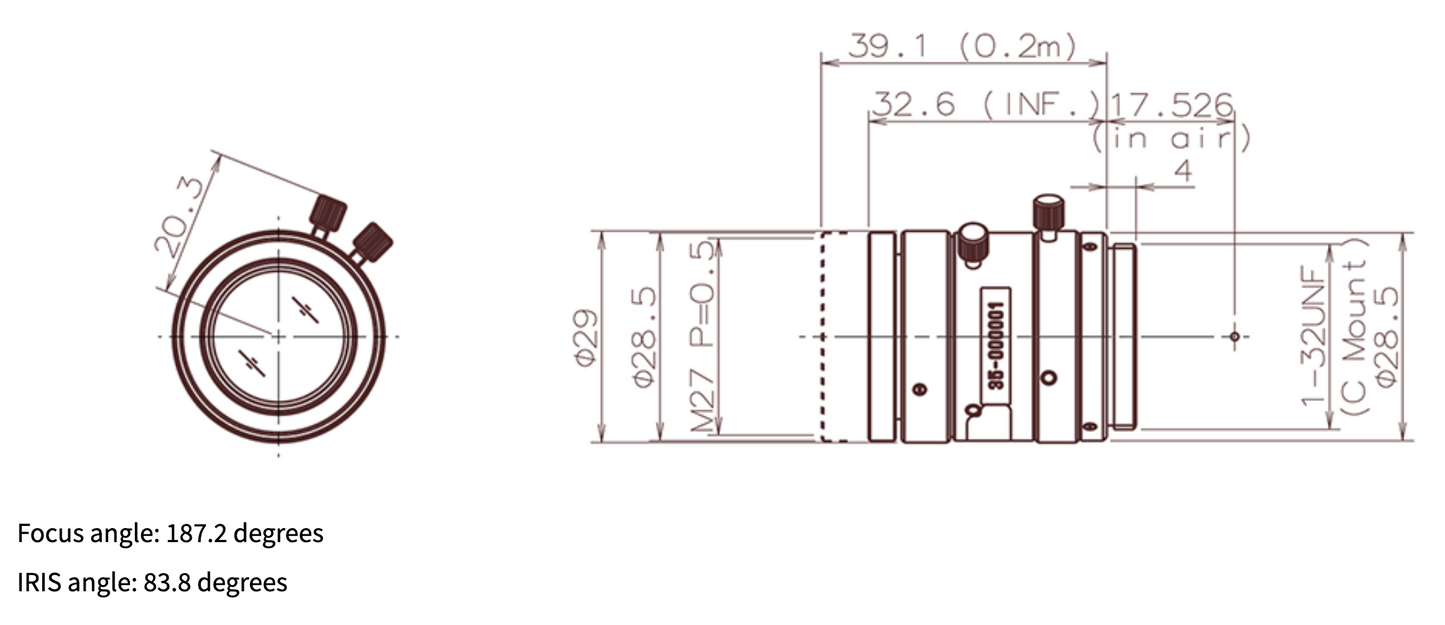

M112FM35 Spec Sheet

Imager Size 1/1.2"
Mount C
Focal length 35mm
Aperture Range F/2.1 to F/16
Angle of view (1/1.2") 4:3 (17.3° x 13.1°), 16:9 (18.8° x 10.7°)
Angle of view (2/3") 4:3 (14.3° x 10.7°), 16:9 (15.5° x 8.8°)
Focus Range 0.2m to ∞ (Recommended: 0.3m)
How to use - Focus With manual lock
How to use - Iris With manual lock
Filter Thread Diameter M27 P=0.5mm
Compatible Wavelengths Visible light range
Distortion 0.05%
Mass 57g
Operating Temperature Range -20°C to +60°C
