TAMRON M117FM08 – Industrial Lens | 1/1.7" 8mm

*Please note tariff fee is included in price*

SKU focus: M117FM08 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M117FM08?

• Focal: 8mm
• Aperture: F8
• Image format: 1/1.7" sensor coverage
• Resolution class: 6MP+
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M117FM08, “TAMRON M117FM08 lens”, and “8mm 1/1.7" lens”.

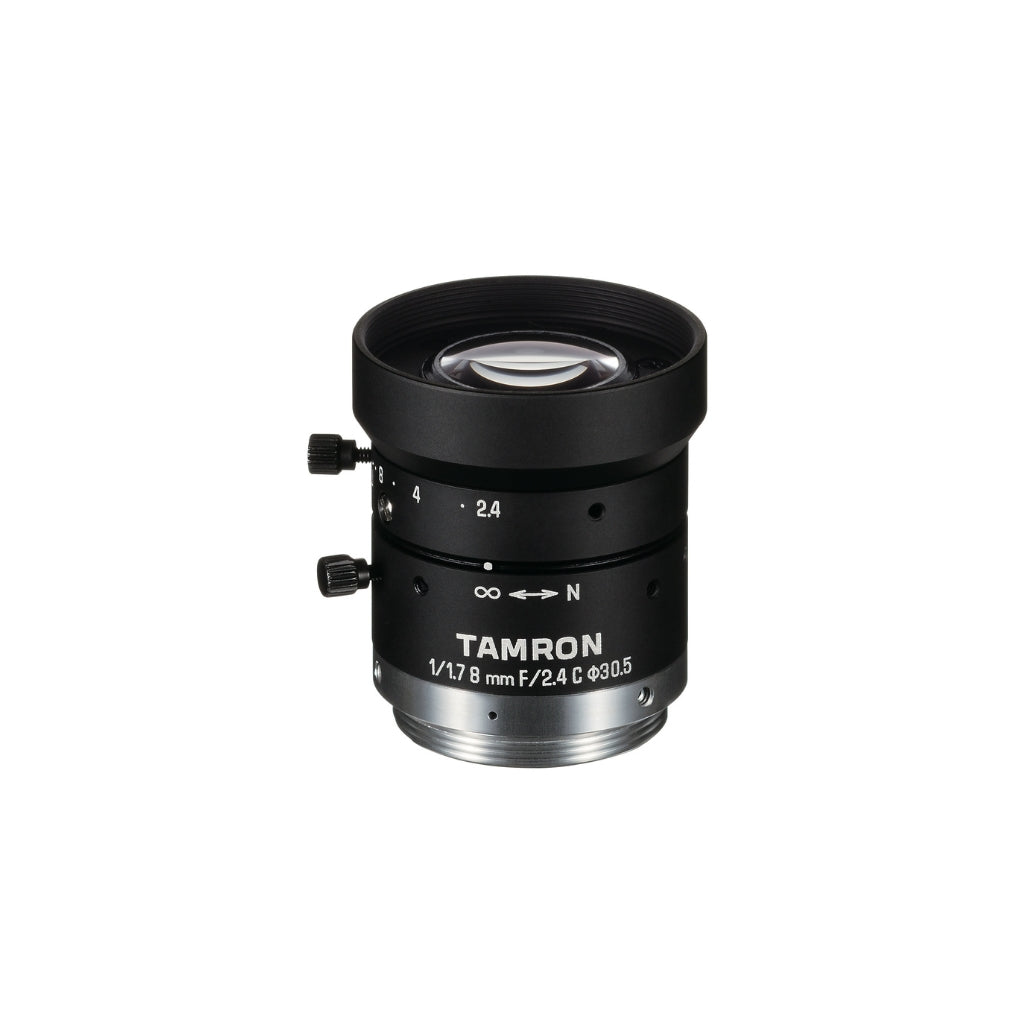

Tamron M117FM08 8mm F/2.4 Aspherical Mega Pixel Fixed-Focal Lens

Tamron is renowned for its precision optics, and the M117FM08 8mm F/2.4 Aspherical Mega Pixel Fixed-Focal Lens exemplifies its commitment to excellence. Designed for machine vision and industrial applications, this lens offers exceptional clarity and detail, compatible with 6MP sensors and featuring an aperture range from F/2.4 to F/16. With a focal length of 8mm, it provides a wide field of view (52.2° x 39.5°), ideal for capturing detailed images across various imager sizes including 1/1.7.

Engineered with manual focus and iris adjustments, and weighing only 48g, it's versatile and robust, operating reliably in temperatures from -20°C to +60°C. The lens minimizes TV distortion (-0.85%) and supports visible light wavelengths, ensuring optimal imaging performance. Ideal for integration into security systems, robotics, quality inspection, and more, the Tamron M117FM08 enhances operational efficiency and accuracy in industrial settings.

Features:

• Aspherical design for improved image quality
• Manual focus and iris adjustments for precise control
• Lightweight construction (48g) for easy integration
• Wide aperture range (F/2.4 - F/16) for versatility

Applications:

• Security systems
• Robotics guidance
• Quality inspection
• Automated manufacturing

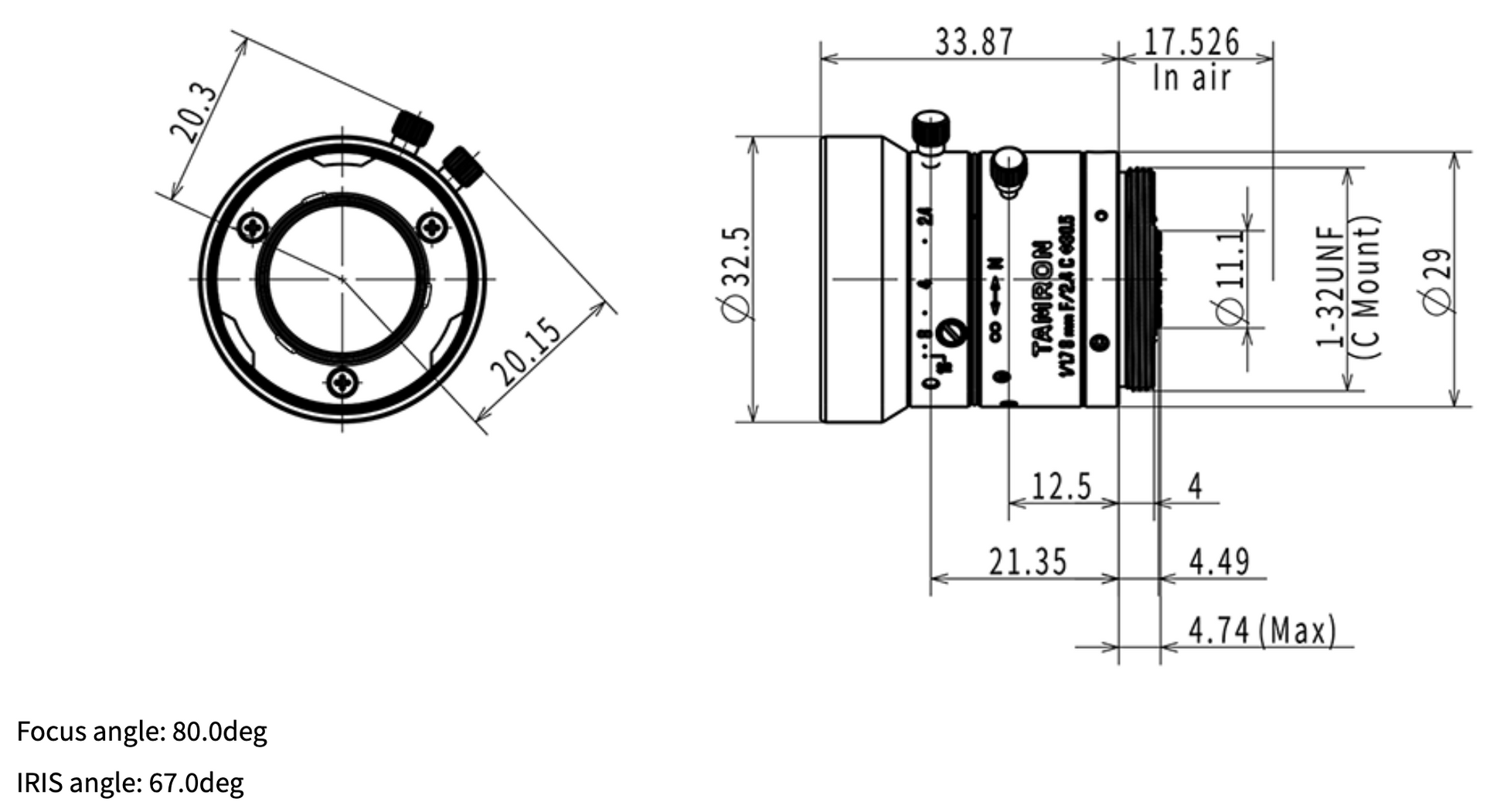

Imager Size	1/1.7"
Mount	C
Focal Length	8mm
Aperture Range	F/2.4 to F/16
Angle of View (1/1.7")	52.2° x 39.5°
Angle of View (1/1.8")	50.9° x 35.1°
Angle of View (1/2")	44.5° x 33.8°
Angle of View (1/3")	33.8° x 25.6°
Focus Range	0.1m – ∞ (Recommended Shooting Distance: 0.3m)
How to Use (Focus)	With manual lock
How to Use (Iris)	With manual lock
Filter Thread Diameter	M30.5 P=0.5mm
Compatible Wavelengths	Visible light range
Distortion	-0.85% (*)
Mass	48g
Operating Temperature Range	-20℃ to +60℃
