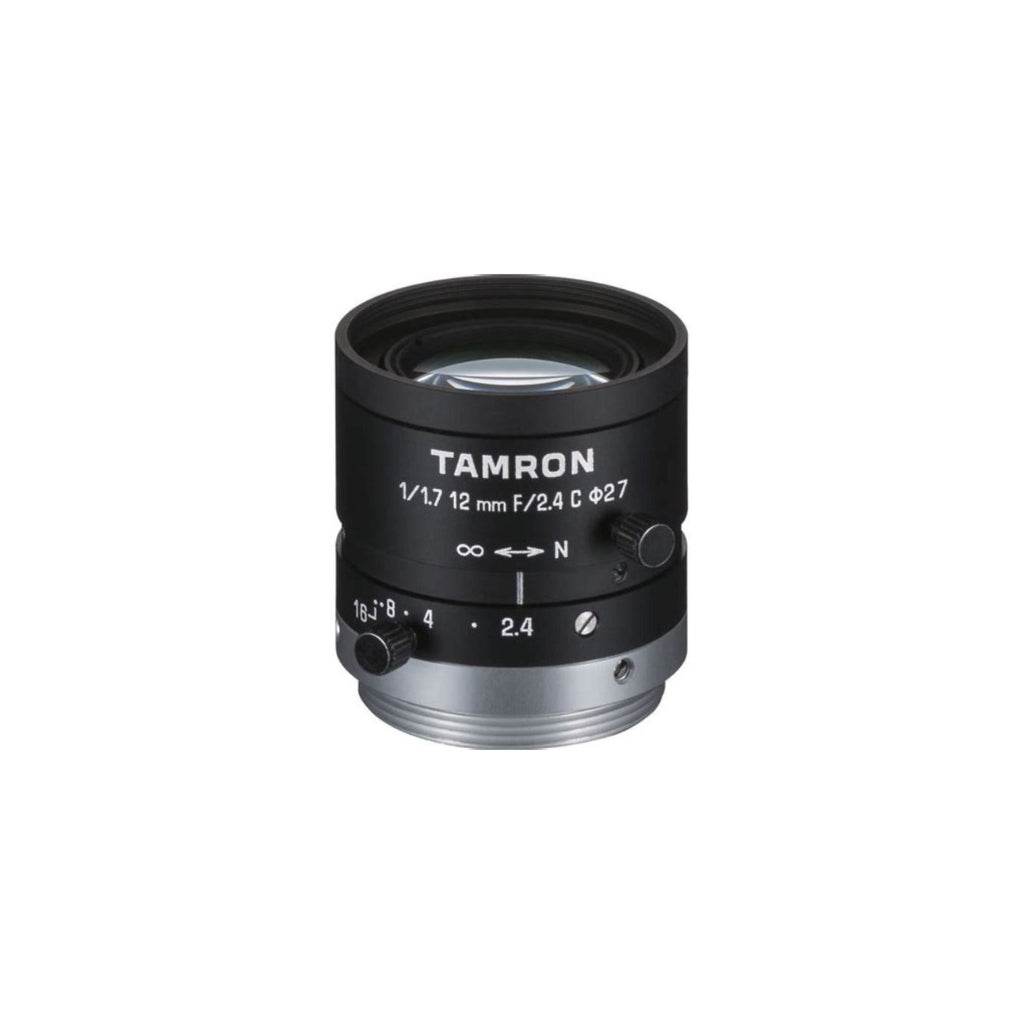

Tamron M117FM12 12mm F/2.4 Manual 6 Mega Pixel Lens w/lock - C-Mount

Tamron M117FM12 12mm F/2.4 Manual 6 Mega Pixel Lens w/lock - C-Mount

SKU:M117FM12

Regular price $187.00 USD
Regular price Sale price $187.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Discover the Tamron M117FM12 12mm F/2.4 Manual 6 Mega Pixel Lens

Tamron is renowned for crafting high-quality lenses tailored for demanding industrial and machine vision environments. The Tamron M117FM12 12mm F/2.4 Manual lens exemplifies this commitment, designed specifically for use with 6 megapixel cameras and featuring a precise C-mount interface. With a focal length of 12mm and an aperture range from F/2.4 to F/16, it offers versatility in capturing detailed images across various imaging sizes.

This lens supports manual focus and iris control, ensuring optimal clarity and flexibility in setup. Its compact form factor and lightweight design (40g) make it suitable for installations where space is at a premium. The Tamron M117FM12 boasts low TV distortion (-0.42%) and operates reliably in temperatures ranging from -20°C to +60°C, making it a robust choice for diverse industrial applications.

Features:

  • 12mm focal length with C-mount interface
  • Manual focus and iris with lock
  • Aperture range from F/2.4 to F/16
  • Lightweight design (40g)
  • Low TV distortion (-0.42%)

Applications:

  • Quality control
  • Inspection systems
  • Robotics
  • Automation
  • Surveillance

M117FM12 Spec Sheet

Imager Size 1/1.7"
Mount Type C
Focal Length 12mm
Aperture Range F/2.4 - F/16
Field of View Angle (1/1.7") 34.3° x 25.9°
Field of View Angle (1/1.8") 33.7° x 22.9°
Field of View Angle (1/2") 29.3° x 22.1°
Field of View Angle (1/3") 22.1° x 16.6°
Focus Range 0.1m - ∞ (Recommended Shooting Distance: 0.3m)
Operation - Focus Manual w/lock
Operation - Iris Manual w/lock
Filter Size M34 P=0.5
Wavelength Visible Light
TV Distortion -1.02%
Weight 50g
Operating Temperature -20°C - +60°C
