USA Security Systems

M117FM25

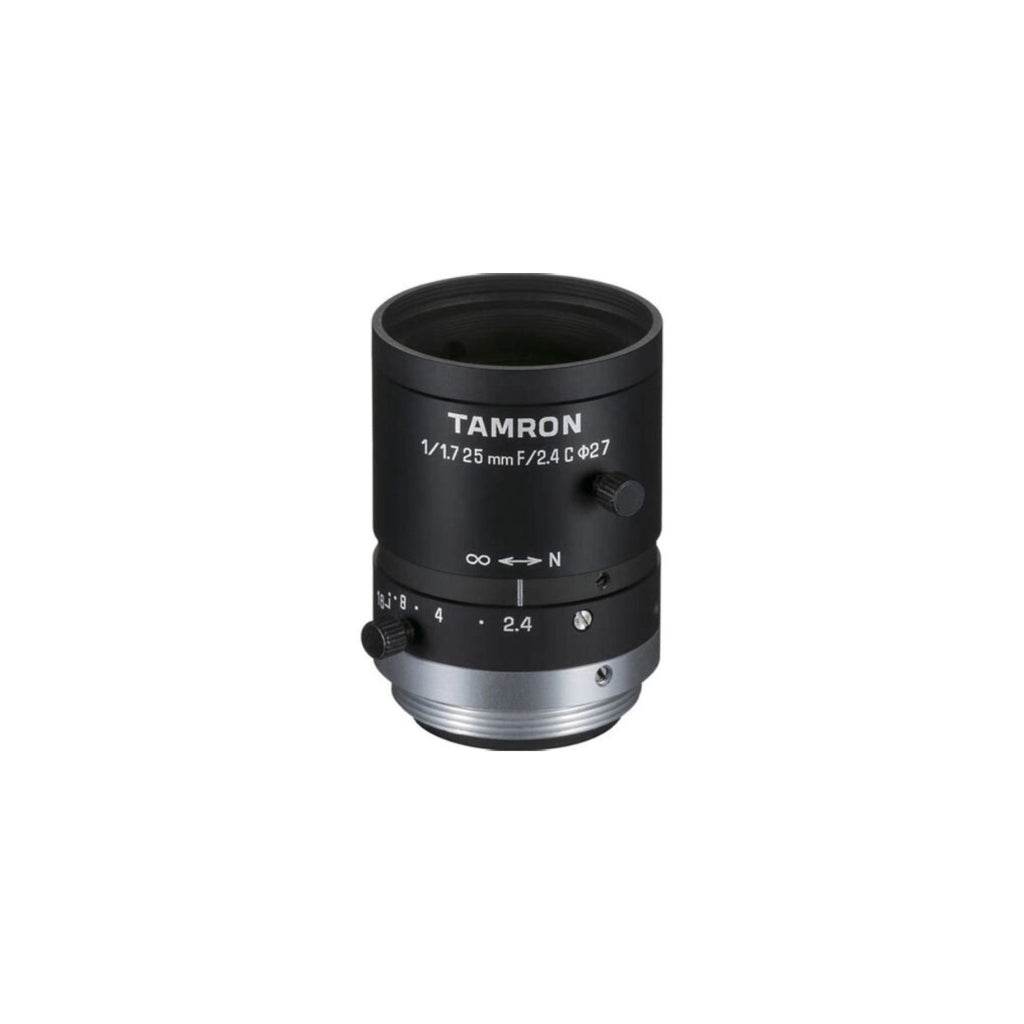

Tamron M117FM25 25mm F/2.4 Manual 6 Mega Pixel Lens w/lock - C-Mount

Tamron M117FM25 25mm F/2.4 Manual 6 Mega Pixel Lens w/lock - C-Mount

SKU:M117FM25

Regular price $164.00 USD
Regular price Sale price $164.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Explore the Versatile Tamron M117FM25 25mm F/2.4 Manual Lens for Industrial Vision

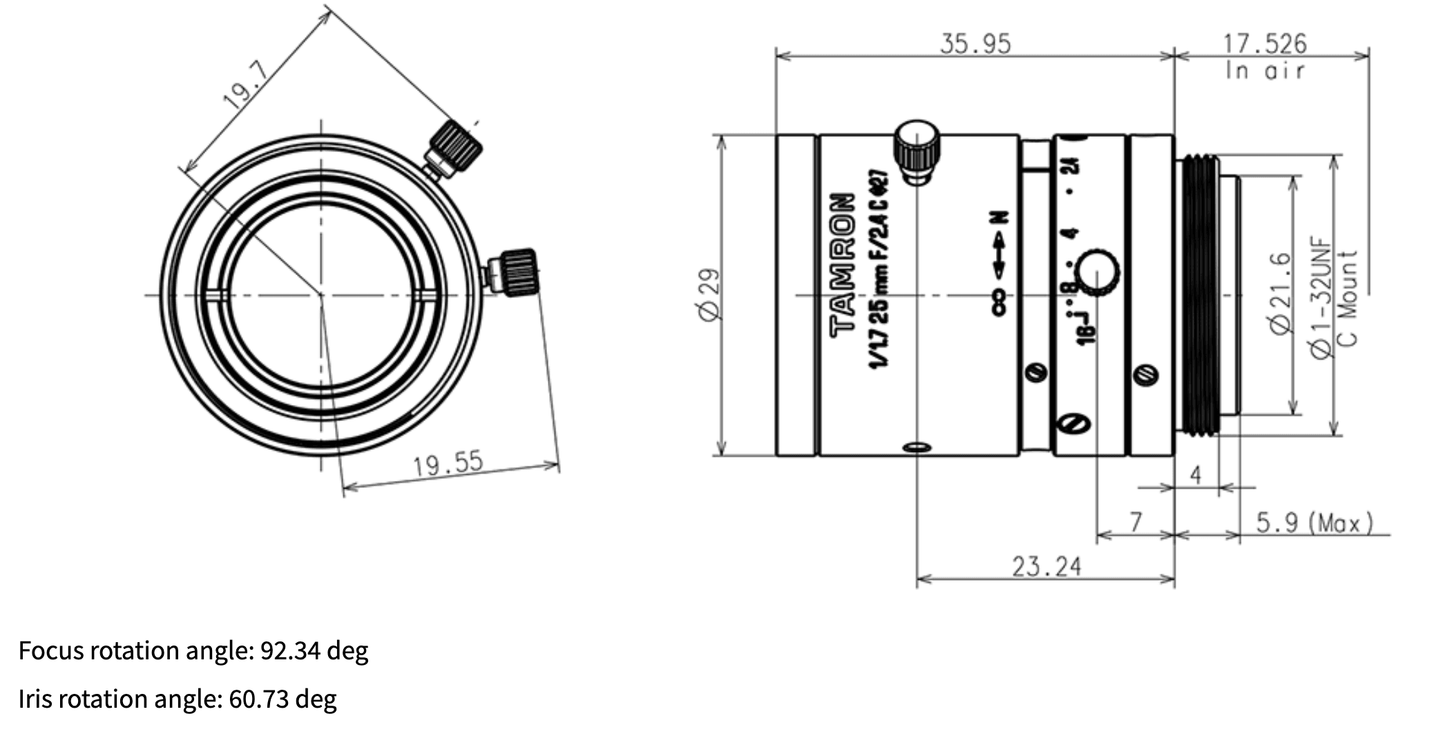

Product Spec Sheet

Tamron is renowned for its precision-engineered lenses catering specifically to industrial and machine vision applications. The Tamron M117FM25 25mm F/2.4 lens exemplifies this commitment, offering exceptional clarity and reliability. Designed for 6 megapixel imaging with a C-mount configuration, this lens ensures high-resolution capture across various imager sizes, including 1/1.7 inch.

It's manual focus and iris with lock feature provide precise control over focusing and aperture adjustments, crucial for maintaining sharpness and depth in demanding environments. With a broad aperture range from F/2.4 to F/16 and minimal TV distortion (-0.1%), it delivers consistent optical performance. Built to endure industrial conditions, it operates reliably from -20°C to +60°C.

Discover the Tamron M117FM25 25mm F/2.4 Manual 6MP Lens for precise industrial imaging. Contact us today for expert advice and competitive pricing!

Features:

  • 25mm focal length
  • C-mount lens compatible with 6MP imagers
  • Manual focus and iris with lock
  • Aperture range: F/2.4 to F/16
  • Lightweight design (45g)
  • Wide operating temperature range: -20°C to +60°C

Applications:

  • Quality control inspections
  • Robotics and automation
  • Surveillance and security systems
  • Semiconductor inspection
  • Traffic monitoring
