TAMRON M117FM35 – Industrial Lens | C-mount 1/1.7" 35mm

*Please note tariff fee is included in price*

SKU focus: M117FM35 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M117FM35?

• Focal: 35mm
• Aperture: F35
• Image format: 1/1.7" sensor coverage
• Resolution class: 6MP+
• Mount: C-mount

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M117FM35, “TAMRON M117FM35 lens”, and “35mm 1/1.7" lens”.

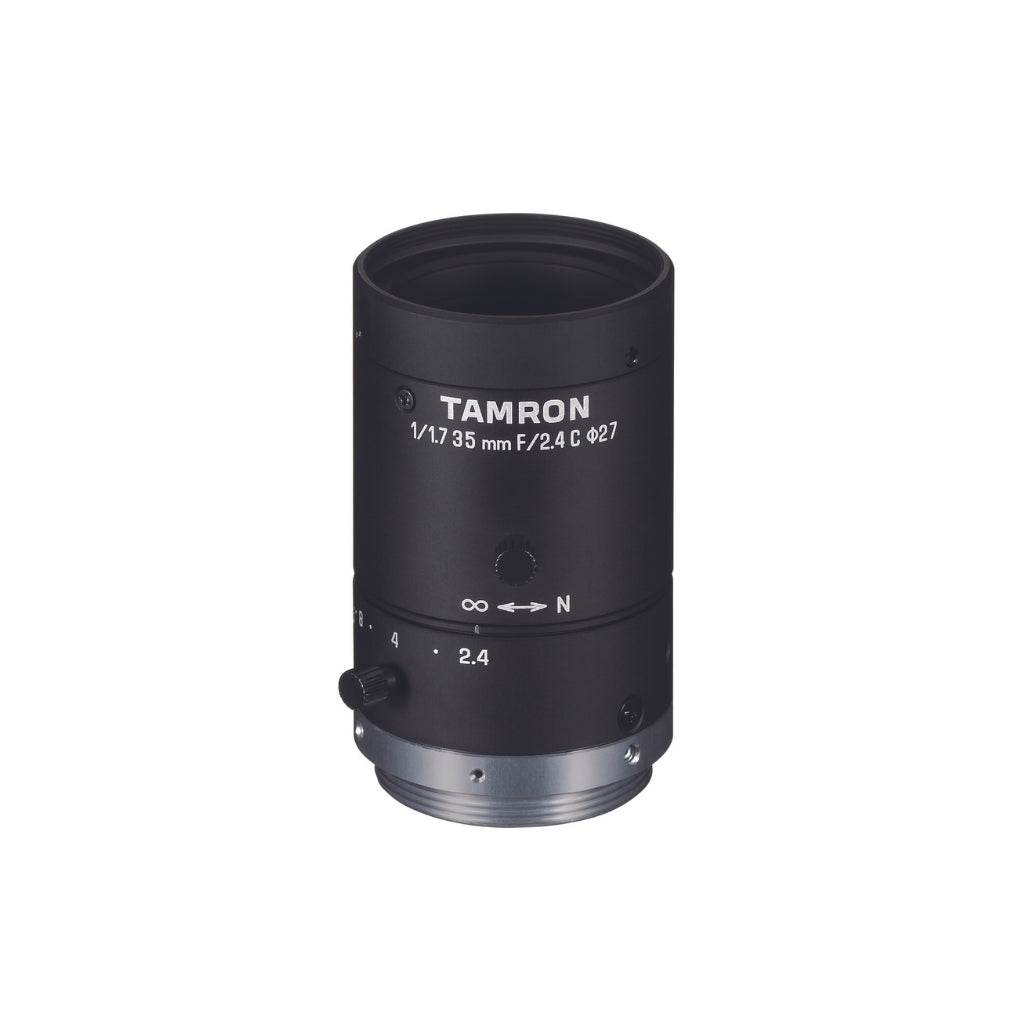

Tamron M117FM35 35mm F/2.4 Manual 6MP Lens for Industrial and Machine Vision

Tamron is renowned for producing high-quality lenses like the M117FM35, designed specifically for industrial and machine vision applications. With a focal length of 35mm and an aperture range from F/2.4 to F/16, this C-mount lens is optimized for 6MP resolution on 1/1.7" imagers, delivering precise imaging capabilities.

The lens features manual focus and iris control with locking mechanisms, ensuring stability in harsh environments. It boasts low TV distortion of -0.06%, making it ideal for accurate image capture. Weighing just 65g and operable in temperatures from -20°C to +60°C, it's versatile for various industrial settings.

Discover the Tamron M117FM35 35mm F/2.4 Manual 6MP Lens. Perfect for industrial and machine vision, with precise imaging and durable build. Order now for enhanced visual solutions!

Features:

• 35mm focal length, F/2.4 - F/16 aperture range
• Manual focus and iris with locking
• Lightweight design (65g)
• Low TV distortion (-0.06%)
• Operates in -20°C to +60°C temperatures

Machine Vision/Industrial Applications:

• Quality inspection
• Robotics
• Automation
• PCB inspection
• Object tracking

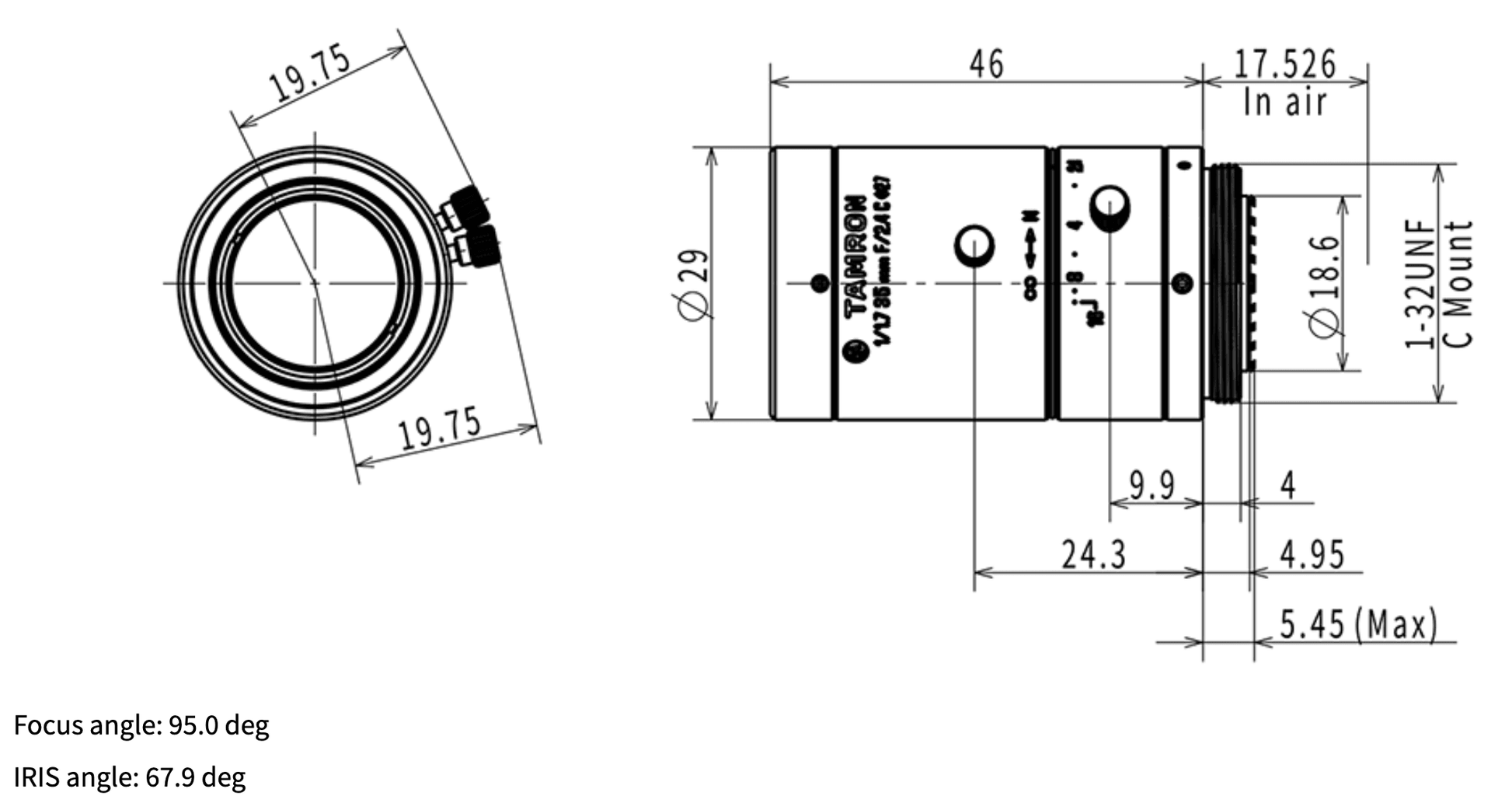

Imager Size	1/1.7"
Mount	C
Focal Length	35mm
Max Aperture	F/2.4-16
Angle of View 1/1.7"	12.6°x 9.5°
Angle of View 1/1.8"	12.4°x 8.4°
Angle of View 1/2"	10.8° x 8.1°
Angle of View 1/3"	8.1° x 6.1°
Focus Range	0.1m ~ INF (Recommended Shooting Distance: 0.3m)
Focus and Iris	Manual w/lock
Filter Screw Diameter	M27 P=0.5mm
Imaging Frequency-Band	Visible Light
TV Distortion	-0.06%
Weight	65g
Operating Temperature	-20℃ ～ +60℃
