TAMRON M118FM06 – Industrial Lens | 1/1.8" 6mm

*Please note tariff fee is included in price*

SKU focus: M118FM06 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M118FM06?

• Focal: 6mm
• Image format: 1/1.8" sensor coverage
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M118FM06, “TAMRON M118FM06 lens”, and “6mm 1/1.8" lens”.

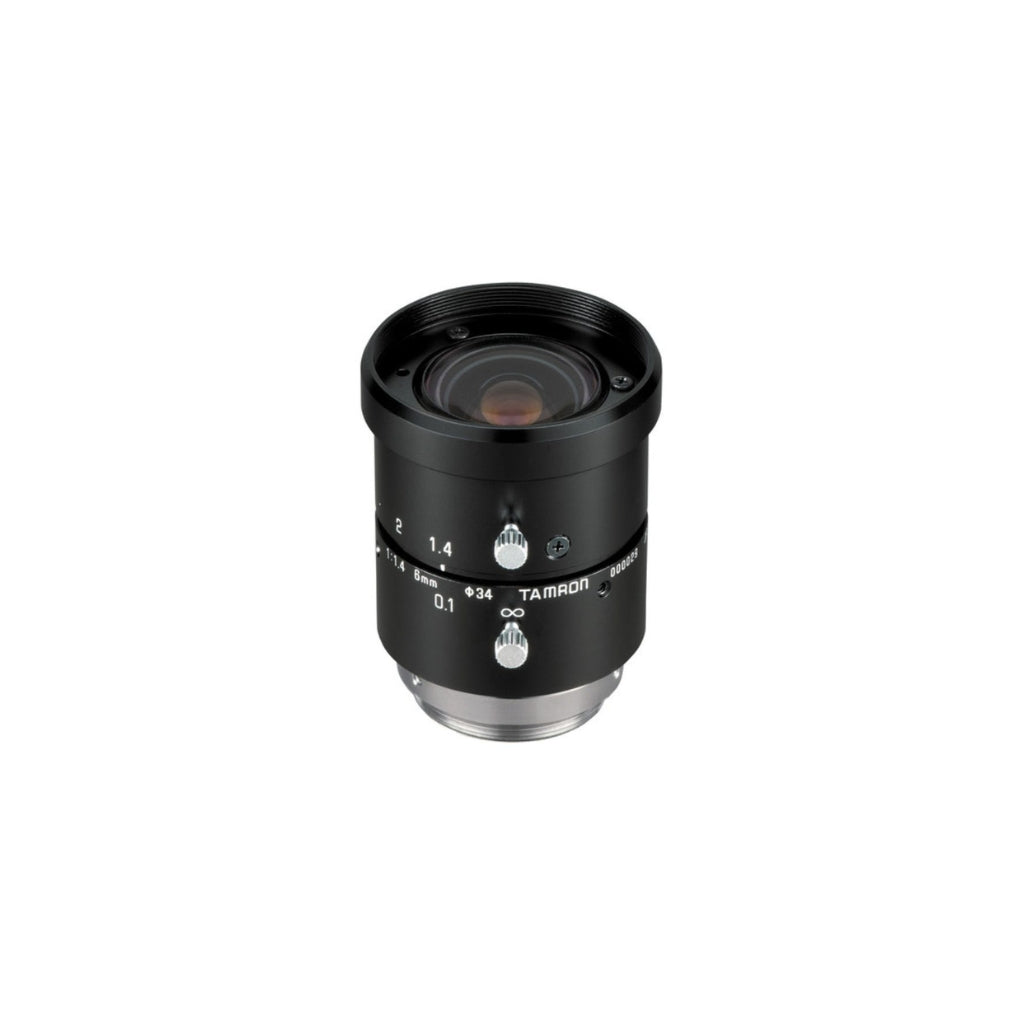

Tamron M118FM06 6mm F/1.4 Aspherical Mega Pixel Fixed-Focal Lens

Tamron is renowned in the machine vision and industrial imaging industries for delivering high-performance lenses like the M118FM06 6mm F/1.4 Aspherical Mega Pixel Fixed-Focal Lens. Engineered with precision and versatility, this lens is optimized for 1/1.8" imagers and supports up to 2 mega-pixel resolution, ensuring exceptional clarity in imaging applications.

Ideal for automated inspection, quality control, robotics, and surveillance systems, the Tamron M118FM06 offers a wide aperture range from F/1.4 to 16, enabling efficient light gathering even in challenging lighting conditions. Its aspherical design minimizes distortion and enhances image sharpness across the entire field of view, which spans 66.1° horizontally and 50.8° vertically for 1/1.8" sensors.

Built for reliability, the lens features manual focus and iris control with locking mechanisms, maintaining precise settings in industrial environments. With a compact, lightweight design weighing only 86g, it operates reliably in temperatures ranging from -10°C to +60°C, making it suitable for diverse industrial settings.

Features:

• Aspherical design for reduced distortion
• Wide aperture range from F/1.4 to 16
• Manual focus and iris with locking mechanism
• Lightweight design (86g)
• Operates in temperatures from -10°C to +60°C

Applications:

• Automated inspection systems
• Quality control
• Robotics
• Surveillance and security systems

Focal Length	6mm
Iris Range	F/1.4-16
Iris Operation	Manual w/Lock
Focus Operation	Manual w/Lock
Mount	C
1/1.8" Angle of View (horizontal/vertical)	66.1° x 50.8°
1/2" Angle of View (horizontal/vertical)	58.9° x 44.9°
1/3" Angle of View(horizontal/vertical)	44.9° x 34.0°
Focusing Range	0.1m ~ INF
Back Focus (in air)	11.98mm
Wave Length	Visible Light
Filter Size	M34 P=0.5m
Operating Voltage	N/A
Weight	TBA
Operating Temperature	-10°C ~ +60° C
