Tamron M118FM12 1/1.8" 12mm F1.4 Manual Iris Lens C-Mount w/ Lock
Tamron M118FM12 1/1.8" 12mm F1.4 Manual Iris Lens C-Mount w/ Lock
SKU:M118FM12
Couldn't load pickup availability

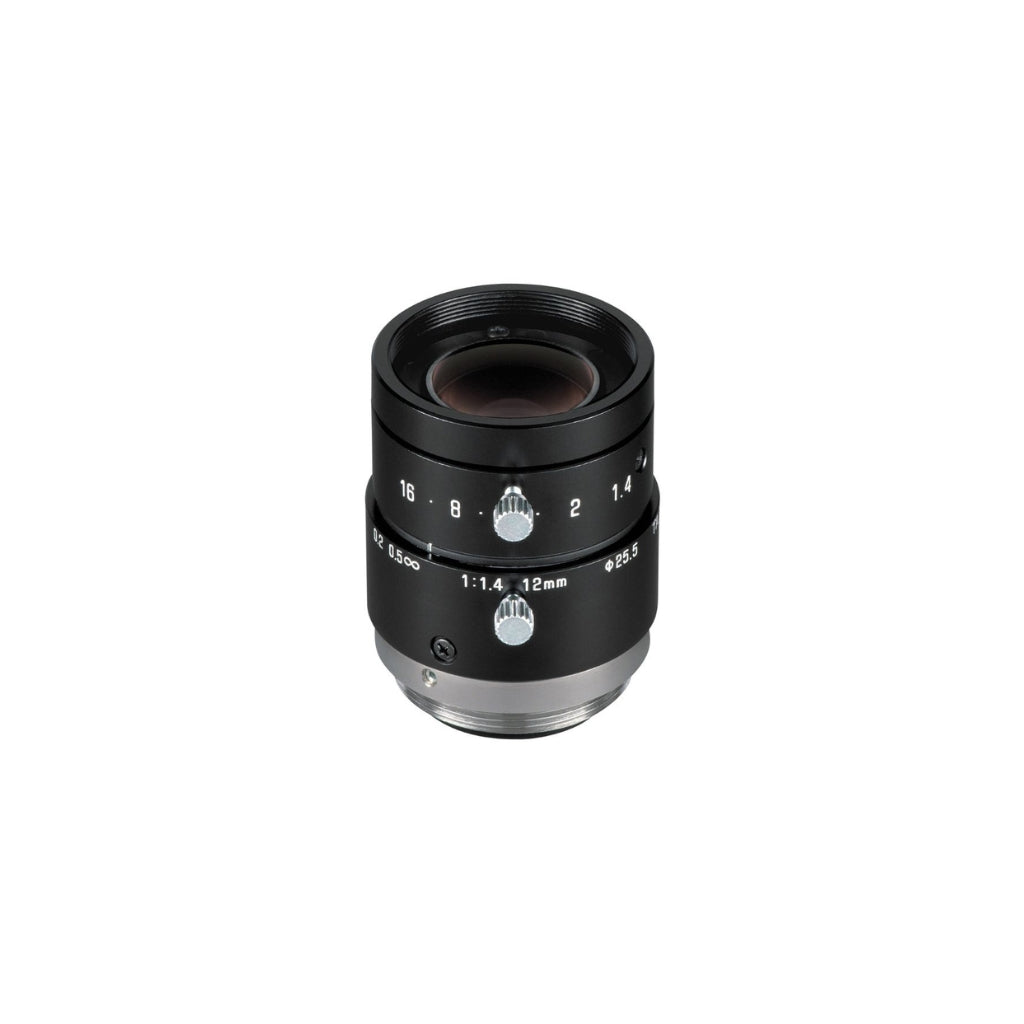

High-Performance Tamron M118FM12 1/1.8" 12mm F1.4 Manual Iris Lens
Tamron is renowned in the lens industry for producing high-quality optics tailored for industrial and machine vision applications. The Tamron M118FM12 1/1.8" 12mm F1.4 Manual Iris Lens exemplifies their commitment to precision and performance. Designed for compatibility with 1/1.8" imagers and 2-megapixel resolution, this C-mount lens offers exceptional clarity and versatility.
With an aperture range from F1.4 to F16 and manual focus and iris with lock capabilities, it ensures precise control over image capture in varying lighting conditions. The lens features a compact design weighing just 57g, suitable for diverse industrial environments ranging from factory automation to quality control systems. Its robust construction supports operation in temperatures from -10°C to +60°C, making it reliable in challenging conditions.
Whether used for inspection, robotics, or surveillance, the Tamron M118FM12 enhances accuracy and efficiency in machine vision setups, delivering sharp images across a wide field of view. Trust Tamron for superior optics that meet the stringent demands of modern industrial imaging.
Features:
- 12mm focal length with C-mount
- Manual iris and focus with lock
- Aperture range from F1.4 to F16
- Designed for 2-megapixel resolution
- Compact and lightweight design (57g)
- Operates in temperatures from -10°C to +60°C
Applications:
- Machine vision systems
- Industrial automation
- Quality control
- Robotics
- Inspection systems
Imager Size | 1/1.8" |
Mount | C |
Focal Length | 12mm |
Aperture Range | F/1.4 to F/16 |
Angle of View (HxV) | 1/1.8": 34.2° x 25.8°1/2": 30.2° x 22.7°1/3": 22.7° x 17.1° |
Focus Range | 0.1m ~ ∞ |
Focus Access | With manual lock |
Iris | With manual lock |
Filter Thread Diameter | M25.5 P=0.5mm |
Compatible Wavelengths | Visible light range |
Distortion | Within -1.2% |
Mass | 57g shi 3g |
Operating Temperature Range | -10℃ to +60℃ |
