TAMRON M118FM16 – Industrial Lens | 1/1.8" 16mm

*Please note tariff fee is included in price*

SKU focus: M118FM16 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M118FM16?

• Focal: 16mm
• Aperture: F16
• Image format: 1/1.8" sensor coverage

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M118FM16, “TAMRON M118FM16 lens”, and “16mm 1/1.8" lens”.

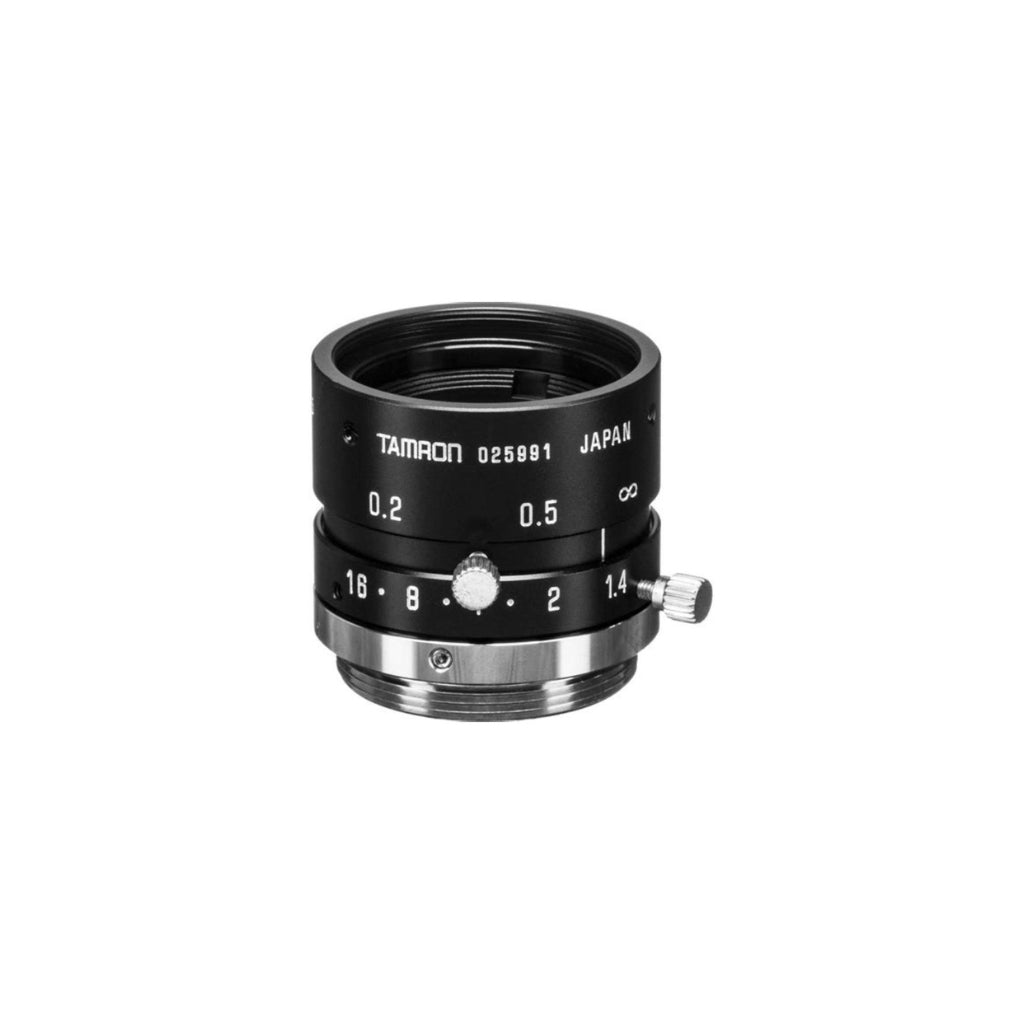

Enhance Precision with the Tamron M118FM16 1/1.8" Mega-Pixel Fixed-Focal Industrial Lens

Tamron, renowned for optical excellence, presents the M118FM16 1/1.8" Mega-Pixel Fixed-Focal Industrial Lens, tailored for demanding industrial and machine vision environments. This lens combines a robust build with exceptional imaging capabilities, supporting 1/1.8" imagers and delivering crisp detail across various Mega-Pixel formats. With a focal length of 16mm and an aperture range from 1.4 to 16, it offers versatility in capturing detailed images across different lighting conditions.

Engineered for precision, the Tamron M118FM16 features manual focus and iris controls with locks, ensuring stable operation in rugged settings. Its compact design, weighing just 39g, complements space-constrained installations without compromising on performance. The lens supports a wide temperature range from -10°C to +60°C, making it suitable for diverse industrial environments.

Discover Tamron's M118FM16 Industrial Lens for high-resolution machine vision. Enhance your imaging precision today.

Features:

• 16mm focal length, 1/1.8" imager size
• Aperture range from 1.4 to 16
• Manual focus and iris with locks
• Lightweight design (39g)
• Wide operating temperature range (-10°C to +60°C)

Applications:

• Machine vision systems
• Industrial automation
• Quality control
• Robotics
• Inspection systems

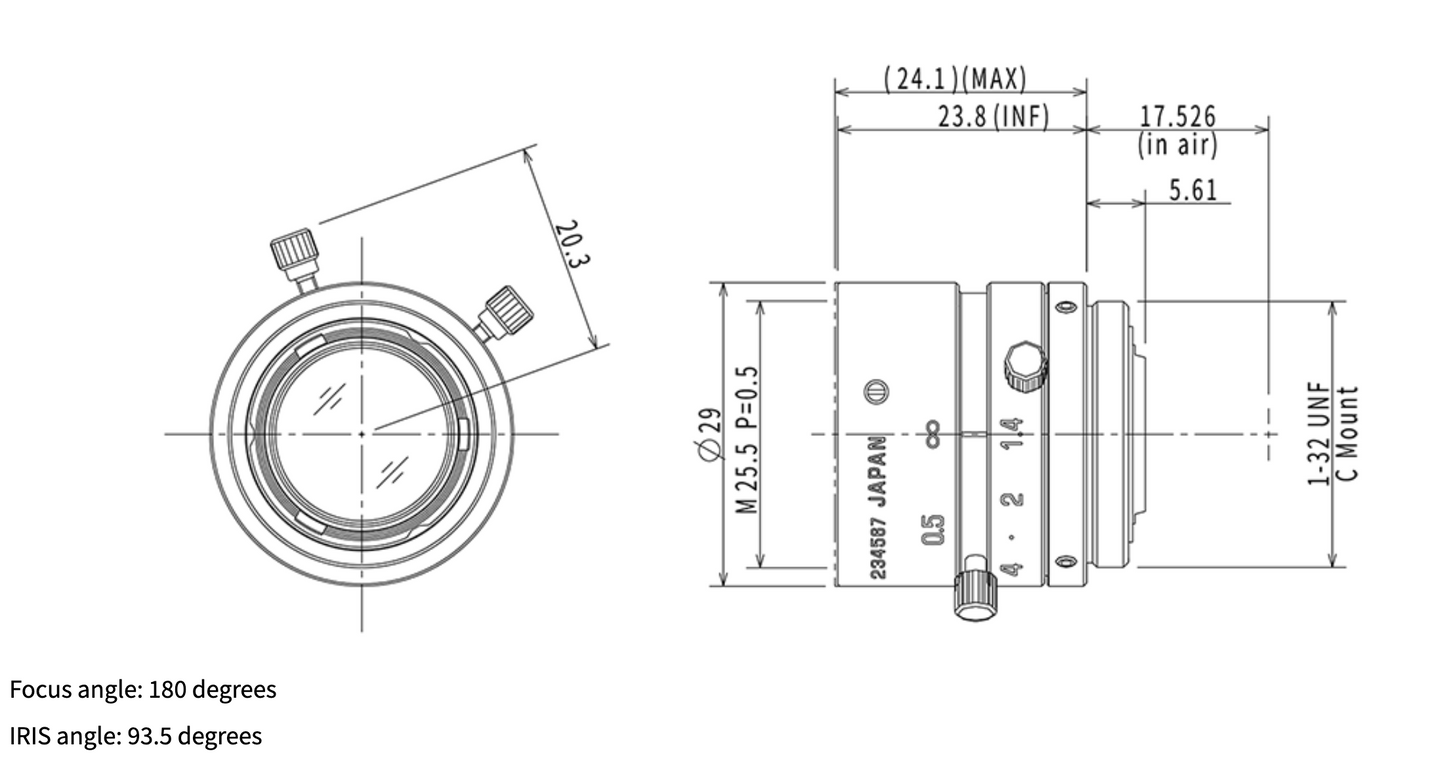

Imager Size	1/1.8"
Mount Type	C
Focal Length	16mm
Aperture Range	1/1.8" - 25.9° x 19.5° 1/2" - 22.8° x 17.1° 1/3" - 17.1° x 12.9°
Focus Range	0.1m to infinity
Access	Focus - With manual lock Iris - With manual lock
Filter Thread Diameter	M25.5 P=0.5mm
Compatible Wavelengths	Visible light range
Distortion	Within -0.7%
Mass	39 g
Operating Temperature	-10℃ to +60℃
Focus Angle	180 degrees
IRIS Angle	93.5 degrees
