USA Security Systems

M118FM25

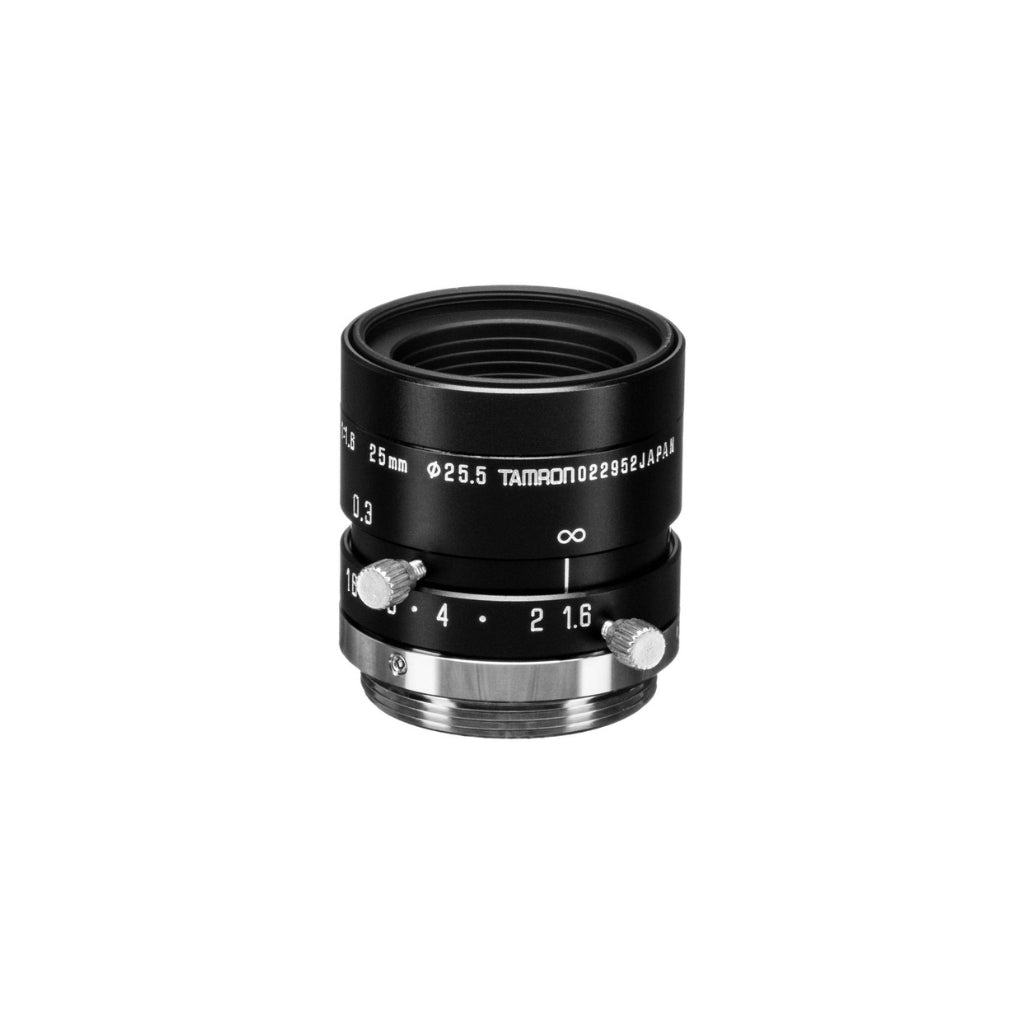

Tamron M118FM25 1/1.8" Megapixel Fixed-Focal Industrial Lens

Tamron M118FM25 1/1.8" Megapixel Fixed-Focal Industrial Lens

SKU:M118FM25

Regular price $140.00 USD
Regular price Sale price $140.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

 Discover Tamron M118FM25 Industrial Lens for Machine Vision

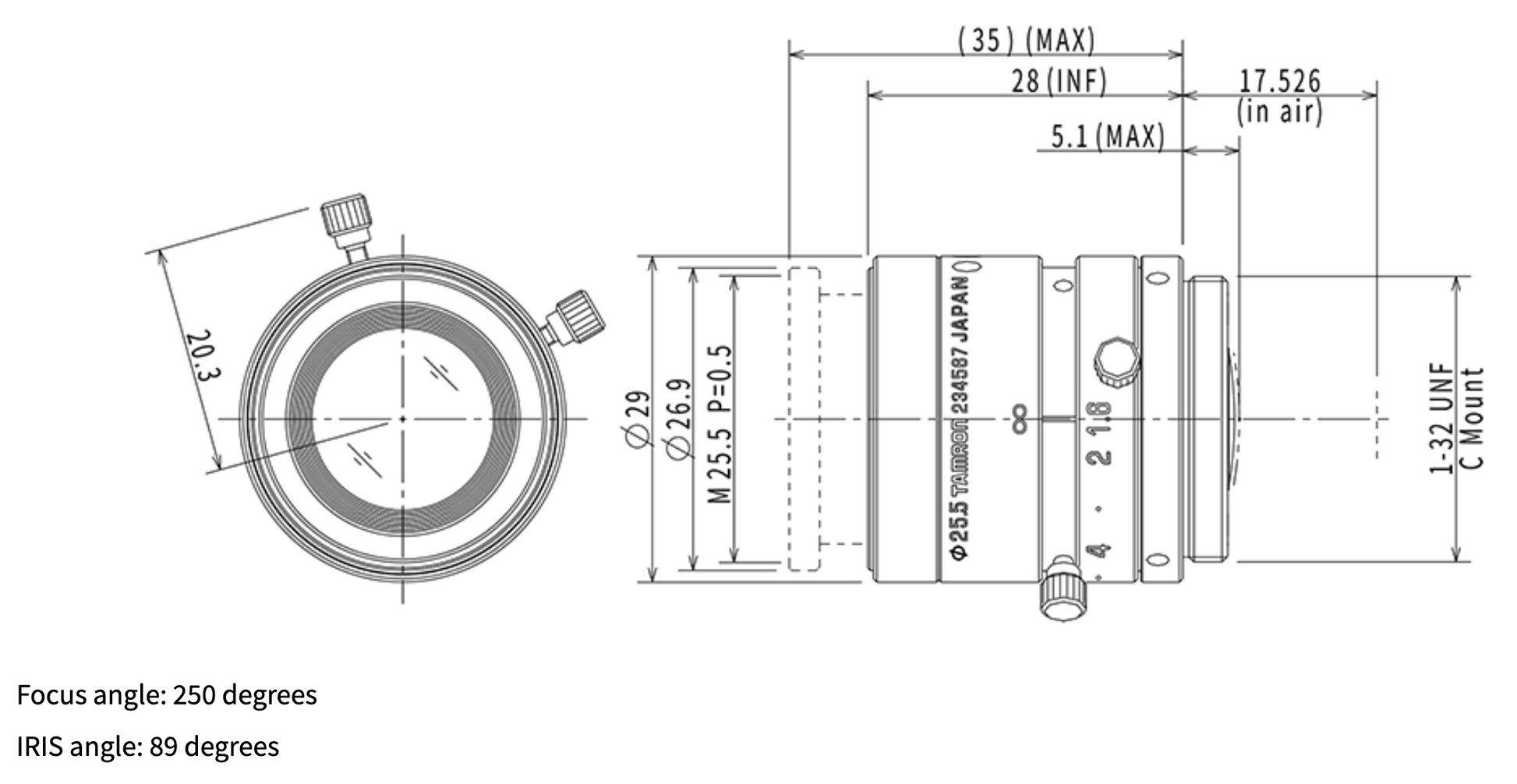

Product Spec Sheet

Tamron is renowned for its commitment to delivering high-quality optics tailored for industrial and machine vision applications. The Tamron M118FM25 1/1.8" Megapixel Fixed-focal Industrial Lens exemplifies this dedication with its precise engineering and superior imaging capabilities.

Designed for compatibility with 1/1.8" imagers and 2MP resolution, this lens offers a focal length of 25mm and an aperture range from 1.6 to 16, ensuring flexibility in various industrial imaging setups. Its manual focus and iris control with locking mechanisms provide stability crucial for consistent performance in demanding environments.

The lens features a compact, lightweight design weighing only 39g, making it suitable for integration into space-constrained setups without compromising on optical quality. With minimal TV distortion (-0.2% or less) and an operating temperature range from -10°C to +60°C, it performs reliably across diverse industrial conditions.

Applications benefitting from the Tamron M118FM25 include quality inspection, factory automation, robotics, and surveillance systems. Its ability to capture detailed images with high resolution and low distortion ensures precision in automated processes and enhances overall system accuracy.

Features:

  • 25mm focal length
  • 1/1.8" imager size compatibility
  • Aperture range: f/1.6 - f/16
  • Manual focus and iris with locking
  • Lightweight at 39g

Applications:

  • Quality inspection
  • Factory automation
  • Robotics
  • Surveillance
