TAMRON M118FM50 – Industrial Lens | 1/1.8" 50mm

*Please note tariff fee is included in price*

SKU focus: M118FM50 (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M118FM50?

• Focal: 50mm
• Aperture: F50
• Image format: 1/1.8" sensor coverage

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M118FM50, “TAMRON M118FM50 lens”, and “50mm 1/1.8" lens”.

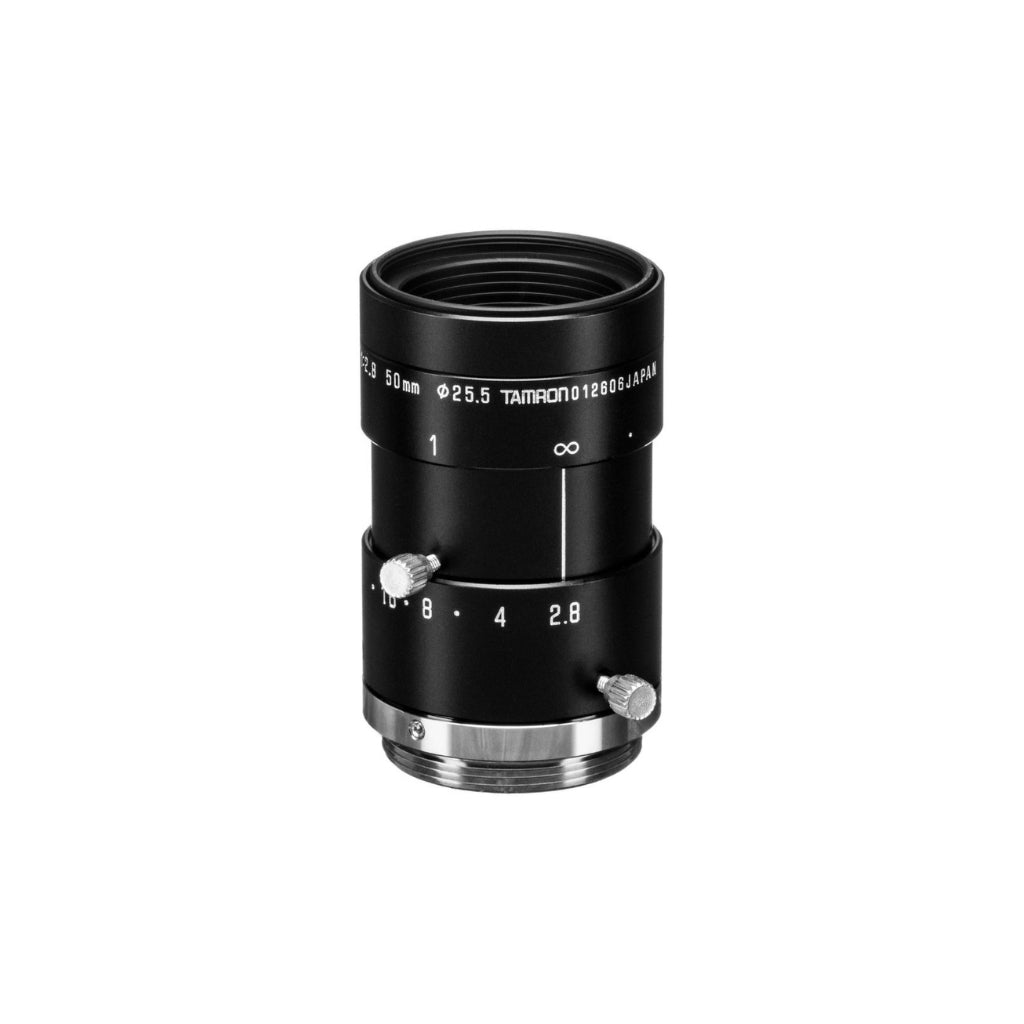

Advanced Features of the Tamron M118FM50 1/1.8" Mega-Pixel Fixed-Focal Industrial Lens

Tamron is renowned in the optics industry for delivering precision and reliability, traits epitomized by the M118FM50 1/1.8" Mega-Pixel Fixed-Focal Industrial Lens. Engineered for demanding industrial and machine vision applications, this lens boasts a focal length of 50mm and an aperture range from 2.8 to 22, ensuring exceptional clarity and versatility in various imaging environments.

The lens supports 1/1.8" mega-pixel sensors, providing detailed imaging with a wide field of view angle of 8.3° x 6.2°, ideal for capturing intricate details across large areas. With a robust manual focus and iris control, users can precisely adjust settings for optimal image quality. Its compact design and lightweight build make it suitable for integration into automated systems and tight spaces.

Applications benefitting from the Tamron M118FM50 include quality control, automated inspection, robotics, and surveillance systems where high-resolution imaging and accurate analysis are critical. Whether used in manufacturing lines or research facilities, this lens enhances productivity and reliability, ensuring consistent performance even in challenging conditions.

Experience precision with the Tamron M118FM50 lens for your industrial imaging needs. Enhance accuracy and reliability in machine vision applications. Contact us today for expert advice!

Features:

• Focal Length: 50mm
• Aperture Range: f/2.8 - f/22
• Imager Size Compatibility: 1/1.8"
• Manual Focus and Iris with Lock
• Lightweight: 52g

Machine Vision/Industrial Applications:

• Quality Control
• Automated Inspection
• Robotics
• Surveillance Systems

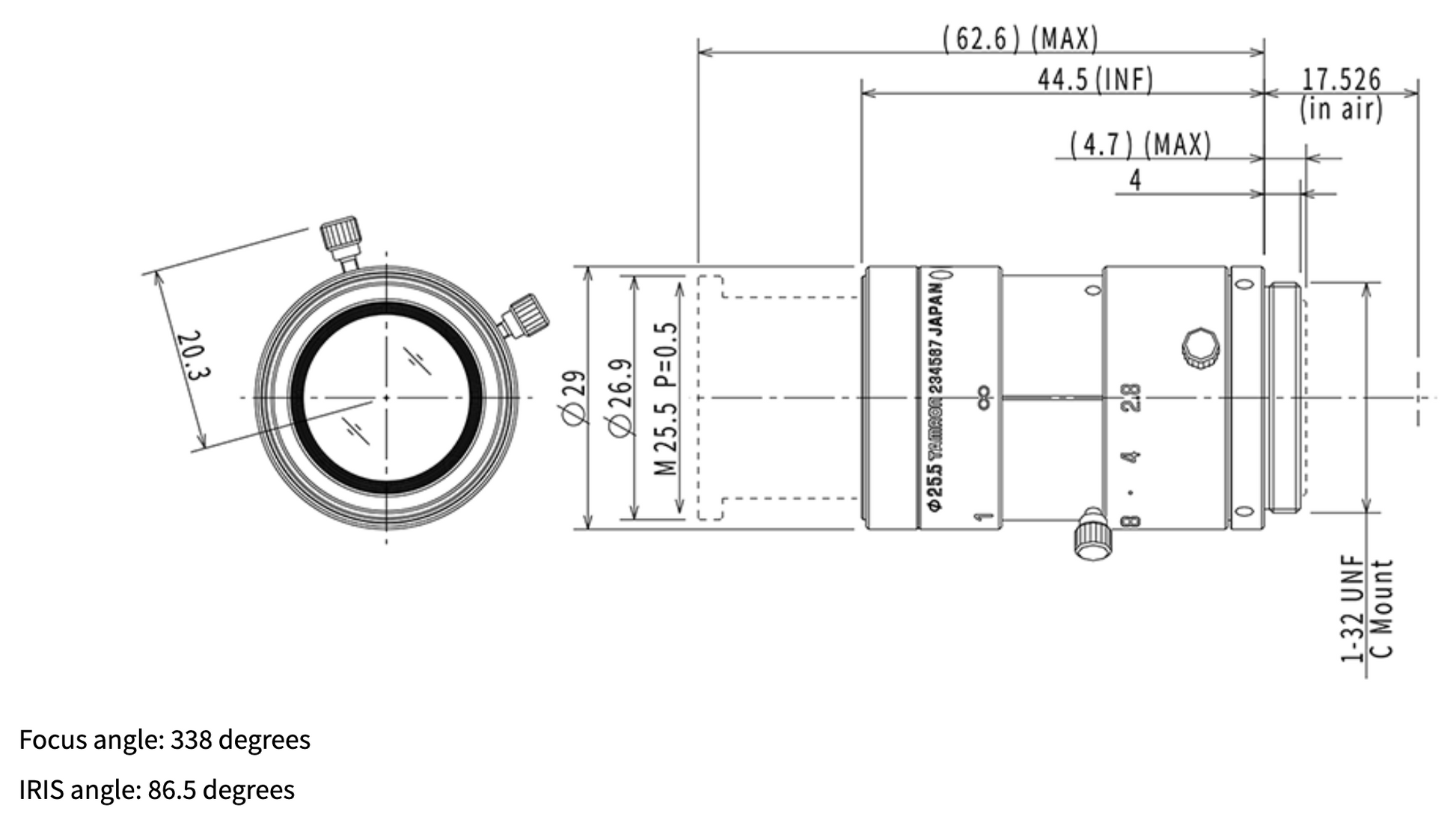

Imager Size	1/1.8"
Mount	C
Focal Length	50mm
Aperture Range	F/2.8 to F/22
Angle of View (1/1.8")	8.3° x 6.2°
Angle of View (1/2")	7.3° x 5.5°
Angle of View (1/3")	5.5° x 4.1°
Focus Range	0.2m to ∞
Focus Control	With manual lock
Iris Control	With manual lock
Filter Thread Diameter	M25.5 P=0.5mm
Compatible Wavelengths	Visible light range
Distortion	-0.1% or less
Mass	52g
Operating Temperature Range	-10℃ to +60℃
