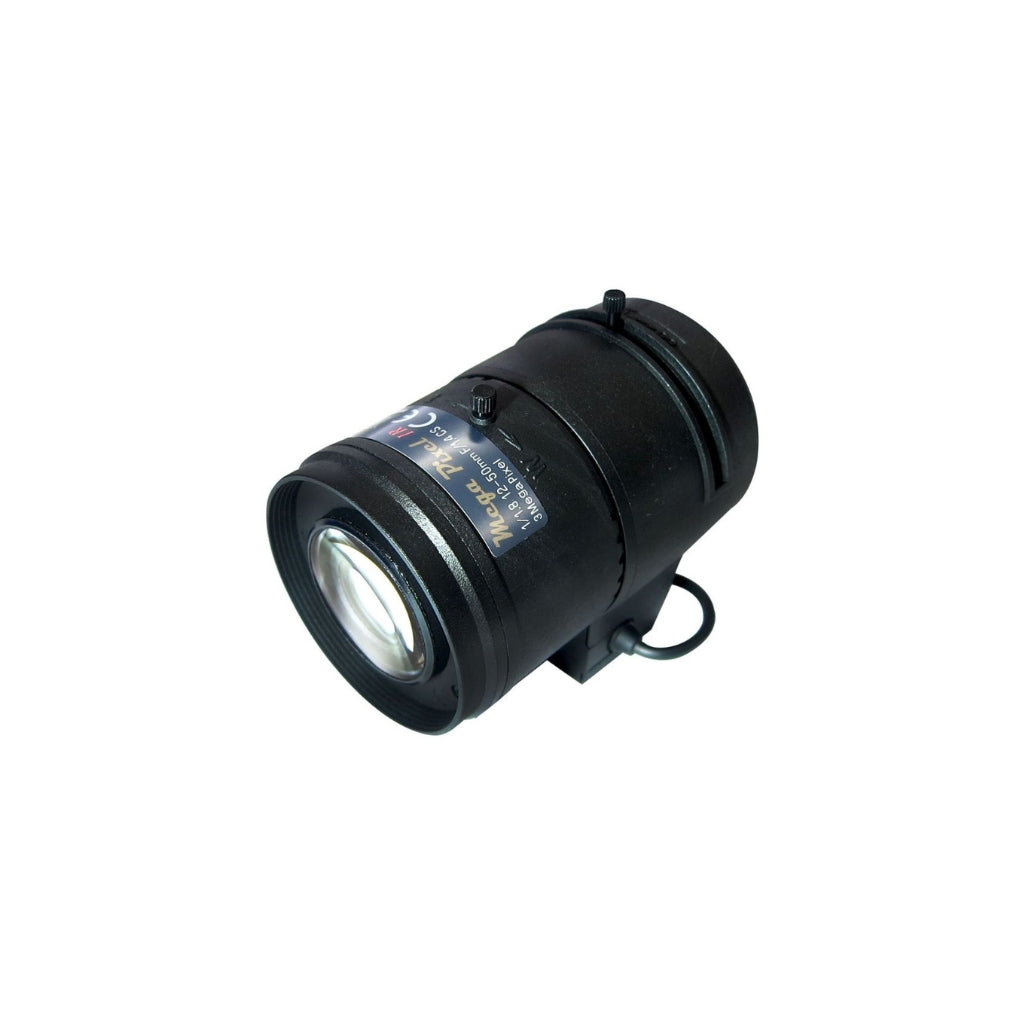

TAMRON M118VG1250IR – Industrial Lens | 1/1.8" 12–50mm Auto Iris IR

*Please note tariff fee is included in price*

SKU focus: M118VG1250IR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M118VG1250IR?

• Focal: 12–50mm
• Aperture: F1.4–F360
• Image format: 1/1.8" sensor coverage
• Iris: Auto Iris
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M118VG1250IR, “TAMRON M118VG1250IR lens”, and “12–50mm 1/1.8" lens”.

Enhance Precision with Tamron M118VG1250IR 1/1.8" Lens

Tamron has long been synonymous with optical excellence, and the M118VG1250IR exemplifies this legacy in machine vision and industrial applications. This vari-focal lens boasts a versatile 12-50mm focal length range and an impressive aperture range of F/1.4 to 360, ensuring exceptional clarity and brightness across varying lighting conditions. Its aspherical design minimizes optical aberrations, enhancing image quality for precise analysis and inspection tasks.

Ideal for use with 1/1.8" imagers, the lens supports visible light and near-infrared wavelengths, crucial for applications requiring enhanced sensitivity. It features manual focus and zoom with locking mechanisms for stability during operation, along with a DC auto iris for seamless adjustment to changing light levels. With a robust build suitable for temperatures ranging from -20°C to +60°C, the Tamron M118VG1250IR is reliable in diverse industrial environments.

Discover unparalleled clarity and reliability with the Tamron M118VG1250IR lens. Perfect for industrial vision applications. Order yours now!

Features:

• Versatile 12-50mm focal length
• Fast F/1.4 aperture for low-light performance
• Aspherical design minimizes optical distortions
• Manual focus and zoom with locking mechanism
• DC auto iris adjusts to varying light conditions

Applications:

• Machine vision systems
• Quality inspection
• Robotics guidance
• Surveillance systems
• Industrial automation

Imager Size	1/1.8"
Mount	CS
Focal Length (mm)	12-50mm
Aperture Range	F1.4 - 360
Angle of View (horizontal x vertical)	1/1.8" - Wide: 34.0° x 25.5° Tele: 8.5° x 6.4° 1/2" - Wide: 29.9° x 22.4° Tele: 7.5° x 5.6° 1/3" - Wide: 22.4° x 16.8° Tele: 5.6° x 4.2°
Focus Range	1.0m to infinity
Access	Focus - With Manual Lock  Zoom - With Manual Lock  Iris - DC Auto Iris
Back focus (in air)	9.62mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Operating voltage	OPEN: 4V CLOSE: 0.5V
Mass.	130g
Operating Temperature	-20° ~ +60° C
