TAMRON M118VM413IR – Industrial Lens | C-mount 1/1.8" 4–13mm IR

*Please note tariff fee is included in price*

SKU focus: M118VM413IR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M118VM413IR?

• Focal: 4–13mm
• Image format: 1/1.8" sensor coverage
• Mount: C-mount
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M118VM413IR, “TAMRON M118VM413IR lens”, and “4–13mm 1/1.8" lens”.

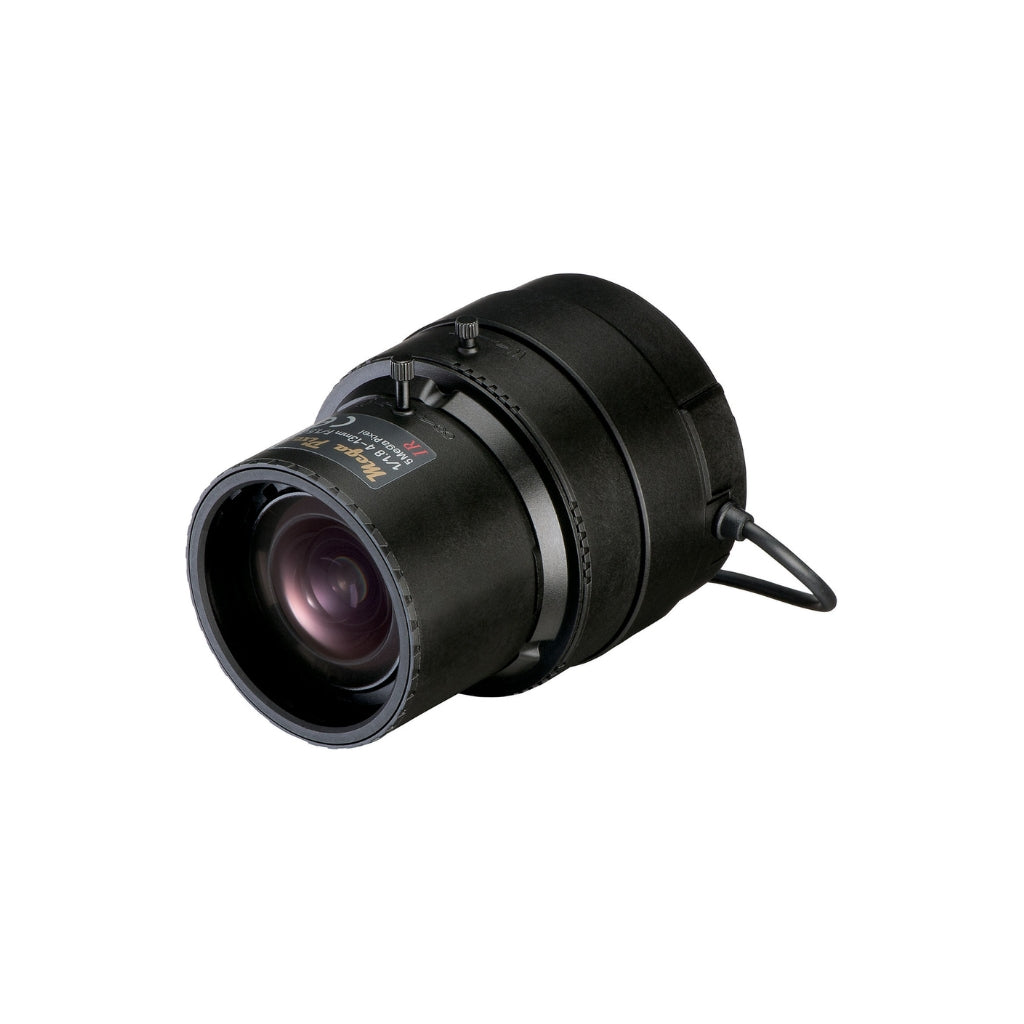

High-Resolution Imaging with Tamron M118VM413IR 4-13mm F/1.5 Aspherical Lens

Tamron lenses are renowned for their optical precision and reliability in industrial and machine vision applications. The Tamron M118VM413IR 1/1.8" 4-13mm F/1.5 Aspherical Mega Pixel Vari-Focal Lens exemplifies this with its versatile capabilities. Designed for high-resolution imaging, it features a wide aperture range of F/1.5 to accommodate various lighting conditions, from visible light to near-infrared wavelengths. This C-mount lens supports 1/1.8" imagers, providing expansive field of view angles from 105.4° wide to 21.8° telephoto.

Engineered with manual focus, zoom, and iris controls, each securely lockable, it ensures precise adjustments and stability during operation. With a robust build suitable for temperatures ranging from -20°C to +60°C, it meets the demands of rugged industrial environments. Whether used in quality inspection, robotics, or surveillance systems, the Tamron M118VM413IR enhances imaging clarity and accuracy, crucial for critical decision-making processes.

Enhance industrial imaging clarity with the Tamron M118VM413IR lens. Ideal for quality inspection and surveillance. Contact us today!

Features:

• Aspherical design for optical precision
• Manual focus, zoom, and iris with lockable controls
• Supports 1/1.8" imagers with wide to telephoto FOV
• Operates in temperatures from -20°C to +60°C

Applications:

• Quality inspection systems
• Robotics and automation
• Surveillance and security

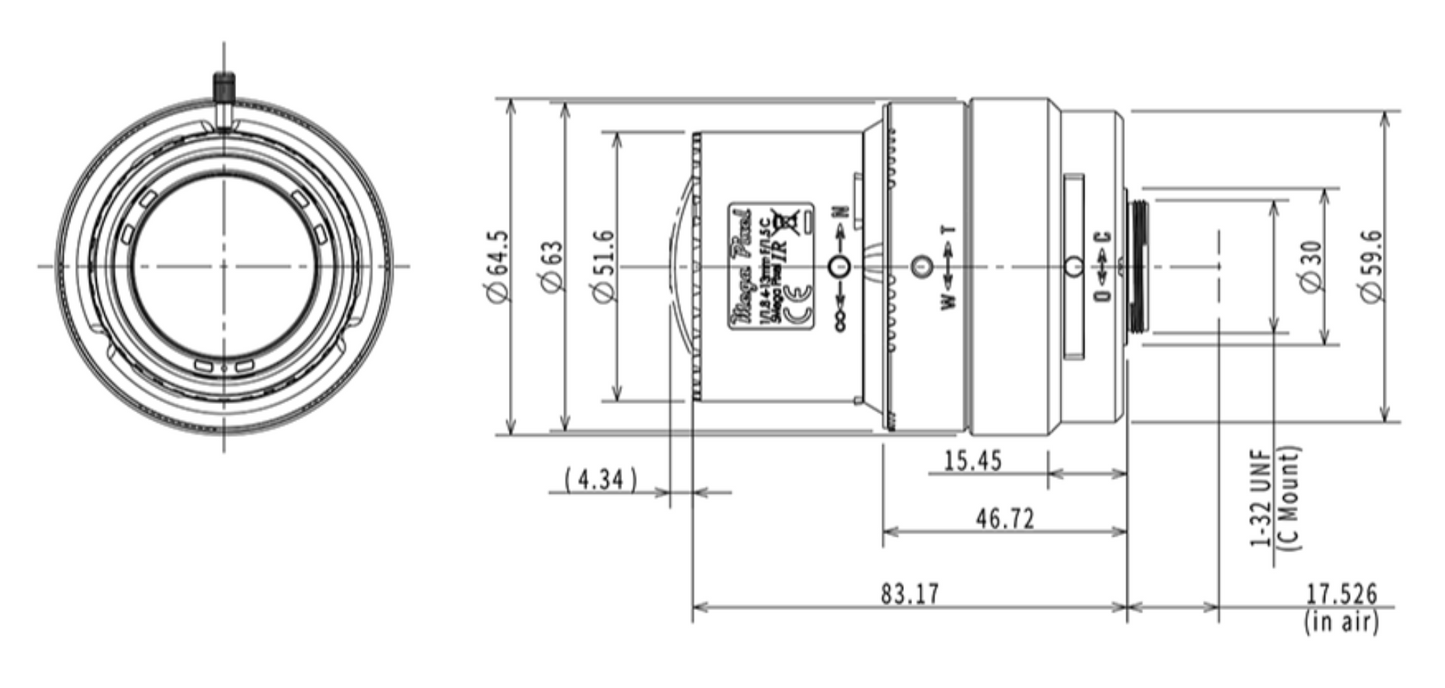

Imager Size	1/1.8"
Mount	C
Focal length	4 to 13 mm
Aperture Range	F/1.5 - Close
Angle of View (1/1.8")	Wide: 105.4° x 77.6°, Tele: 33° x 24.8°
Angle of View (1/2")	Wide: 91.7° x 67.9°, Tele: 29° x 21.8°
Angle of View (1/3")	Wide: 67.9° x 50.6°, Tele: 21.8° x 16.3°
Focus Range	0.3m to infinity
How to Use (Focus)	With manual lock
How to Use (Zoom)	With manual lock
How to Use (Iris)	With manual lock
Filter Thread Diameter	-
Back Focus (in air)	15.235mm
Compatible Wavelengths	Visible light to near infrared range
Weight	167g (+ or _ 5g)
Operating Temperature Range	-20℃ to +60℃
